Product Description

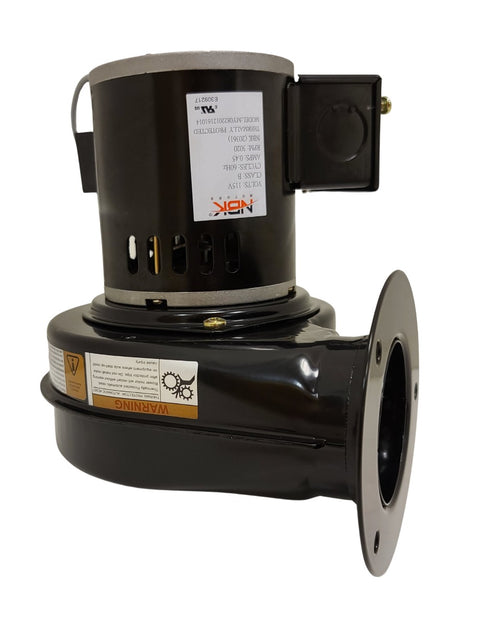

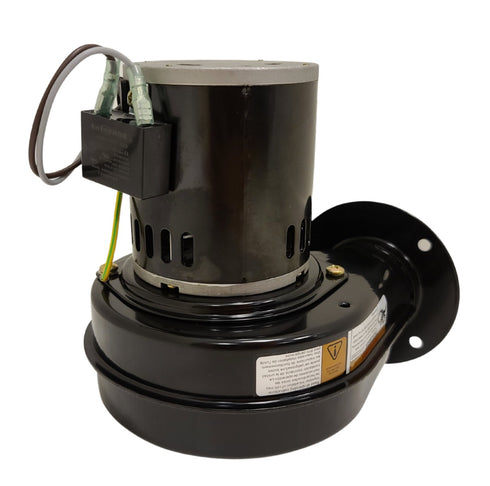

Dynamically balanced, the NBK Blower, compatible with the Dayton model FN1TDP3 (4C443), mounts in any position and operates with minimal noise and vibration, to maintain CFM at higher static pressures. Motors have cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. The NBK Blower is better quality and will last longer than the Dayton products. We no longer carry any Dayton products.
Typical Application
This fan is used on the Shaver Outdoor Wood Furnace & Taylor T-450. Also used for many other applications
This blower is compatible to the following models: Dayton 1TDP3, Fasco 7021-4931,50748-D500, 4C443 Fasco 7021-10870, 7021-5713, 7021-2588, 9MRW2
Performance Data
- CFM @ 0.000-In SP: 75
- 115 V, 60 Hz, Single Phase
- Max Ambient Temp: 104 Deg F
- Full Load Amps: 0.45
- Motor RPM: 3020
- Dimensions: Overall height 5 3/4'', overall width 6 1/4'', overall depth 6 7/16''
Features
- Noise and vibration are held to a minimum to maintain CFM at higher static pressures.
- Shaded Pole
- All-position mounting
- Min./max. operating temp. range: -20 Degree to 104 DegreeF
- Motor enclosure: Open

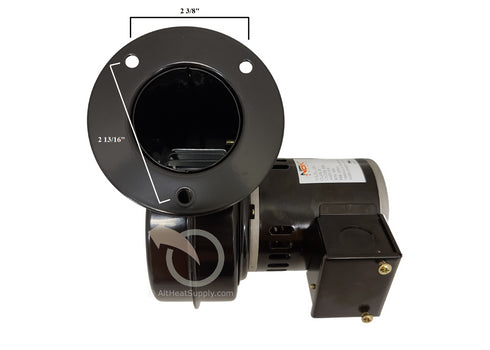

- Includes discharge mounting flange
- Wheel Type:Forward curve
- Blower Outlet Shape: Round
More Information
Specifications:
| Item | PSC Blower | |
| Type | Forward Curve, Direct Drive | |
| Wheel Dia. (In.) | 3-15/16 | |
| Wheel Width (In.) | 1-15/16 | |
| CFM @ 0.000-In. SP | 75 | |
| CFM @ 0.100-In. SP | 71 | |
| CFM @ 0.200-In. SP | 68 | |
| CFM @ 0.300-In. SP | 66 | |
| CFM @ 0.400-In. SP | 61 | |
| CFM @ 0.500-In. SP | 56 | |
| Voltage | 115 | |
| Hz | 50/60 | |
| Phase | Single | |
| Full Load Amps | 0.45 | |
| RPM | 3020 | |
| Bearing Type | Ball | |
| Motor Type | Permanent Split Capacitor | |
| Motor Enclosure | Open | |
| Motor Insulation | Class B | |
| Thermal Protection | Auto | |
| Lead Length (In.) | 13 | |
| Conduit Box | Yes | |
| Ambient Temp. (Deg. F) | 104 | |
| Max. Inlet Temp. (Deg. F) | 104 | |
| Inlet Dia. (In.) | 3-1/8 | |
| Outlet Dia. (In.) | 2-1/8 | |
| Overall Height (In.) | 5-3/4 | |
| Overall Width (In.) | 6-1/4 | |
| Overall Depth (In.) | 6-7/16 | |
| Mounting | All Position | |
| Housing Finish | Black Enamel | |
| Housing Material | Rolled Steel | |
| Agency Compliance | UL Recognized US and Canada (E47479) | |
| Replaces | 1TDP3 4C443 | |
| Includes | Discharge Mounting Flange |
Size: 23 Brand: NBK
