Product Description
SharkBite® PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured without an oxygen barrier for potable water systems (available in white, blue, and red) and with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite® imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite® Push-Fit Fitting. This feature only works if the tubing is cut between the SharkBite® imprint pattern.
Specifications
- Material: Polyethylene
- Size: 1'' x 100'
- Color: Blue
- Minimum working temperature 33°F @ 160 psi. Maximum working temperature 200°F @ 80 psi.
- Maximum working pressure 160 psi @ 33°F - 70°F
Features
- Strong, flexible, corrosion-resistant pipe
- Flexibility reduces number of fittings needed to complete a job; reducing cost and leak points
- Can be installed wet or dry for immediate pressure testing
- SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings
- Listed to NSF 14 and CSA B137.5 for use in potable water systems
- Meets UL1821 standard for plastic piping for fire systems (3/4 in. and 1 in. only)
- Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5
Pipe expands and contracts as water freezes and thaws within pipe.
MADE IN USA- Manufactured in Cullman, AL.
USAGE
Faster installation compared to rigid pipe. Flexibility to bend pipe around corners. Available in coils up to 1,000 ft. in length, allowing longer runs and fewer connections -- reducing cost, time and potential leak points. Freeze resistant pipe can expand slightly if frozen and contract when thawed. Ideal for hot and cold potable water distribution, fire protection and municipal water service lines.
*** FREE SHIPPING DOES NOT APPLY TO THIS ITEM ***

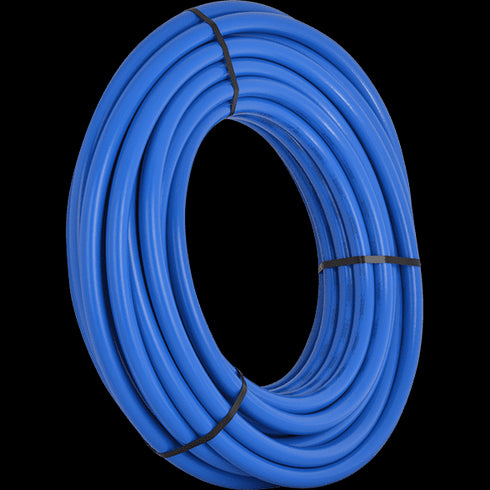

BLUE 1" x 100' Non-Barrier Pex Waterline U880B100
SharkBite® PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured without an oxygen barrier for potable water systems (available in white, blue, and red) and with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite® imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite® Push-Fit Fitting. This feature only works if the tubing is cut between the SharkBite® imprint pattern.
Approvals:
The SharkBite® tubing with and without oxygen barrier is approved for use in all model codes in the US and Canada for use in hydronic and potable water systems and is certified to the following standards
Size: 1 Brand: Cash AcmeRELATED PRODUCTS
