Boiler 1-1/4" Kit with Internal Coil - SharkBite

$383.48

Quick Shipment

SKU: BBkitICsb114

MANUFACTURER: AH&S

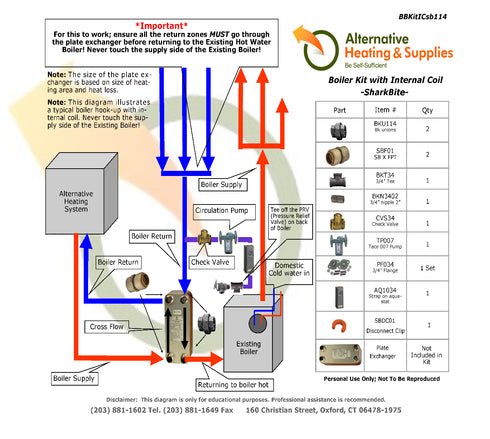

  • Kit Includes: BKU114 (2 pcs), SBF01 (2 pcs), BKT34, BKN3402, CVS34, TP007, PF034 & AQ003, a roll of Teflon tape and easy to follow diagram.
  • Designed to be used with the brazed plate exchanger with 1-1/4" ports and boilers with internal domestic coils.
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

BBkitICsb114 Brazed Boiler 1-1/4" Kit with Internal Coil Kit with SharkBite Fittings was designed to be used with the brazed plate exchanger with 1-1/4" ports, and boilers with internal domestic coils. All part & fittings shown are included in the kit to simplify the order process and to get those hard-to-find parts. We only use high quality fittings and parts. Included in kit BKU114 (2), SBF01 (2), BKT34, BKN3402, CVS34,TP007, PF034 & AQ003, a roll of Teflon tape and easy to follow diagram.

Typical Applications

Used with the brazed plate exchanger with 1-1/4" ports and boilers with internal domestic coils

Features

  • All fittings shown are included
  • High quality fittings and parts
  • Installation diagram included
  • Included in kit BKU114 (2), SBF01 (2), BKT34, BKN3402, CVS34, TP007, PF034 & AQ003, a roll of Teflon tape
More Information
Specifications:

BBkitICsb114 Brazed Boiler 1-1/4" Kit with Internal Coil Kit Designed to be used with the brazed plate exchanger and boilers with internal domestic coils. All part & fittings shown are included in the kit to simplify the order process and to get those hard-to-find parts. We only use high quality fittings and parts. Included in kit BKU114 (2), SBF01 (2), BKT34, BKN3402, CVS34,TP007, PF034 & AQ003, a roll of Teflon tape and easy to follow diagram.



Size: 14
Brand: AHS
