PRODUCT INFORMATION
Product Description
Brazed Boiler Kit with Internal Coil Kit designed to be used with the brazed plate exchanger and boilers with internal domestic coils.
Typical Applications
Heating applications
Features
- All part & fittings shown are included in the kit
- High quality fittings and parts - BKU01 (2), PF01 (2), PR01 (2), BKT34, BKN3402, CVS34,TP007, PF034 & AQ003, a roll of teflon tape

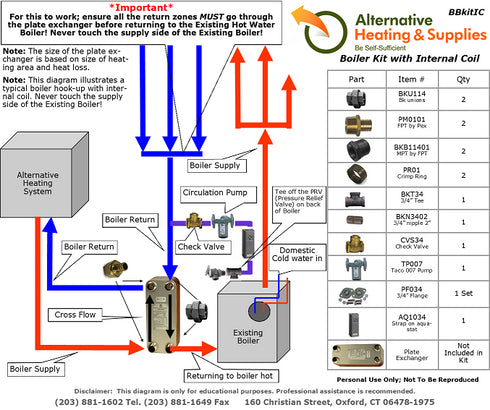

- Installation diagram included
More Information
Specifications:
BBkitIC. Brazed Boiler Kit with Internal Coil Kit Designed to be used with the brazed plate exchanger and boilers with internal domestic coils. All part & fittings shown are included in the kit to simplify the order process and to get those hard-to-find parts. We only use high quality fittings and parts. Included in kit BKU01 (2), PF01 (2), PR01 (2), BKT34, BKN3402, CVS34,TP007, PF034 & AQ003, a roll of teflon tape and easy to follow diagram.
Size: 17 Brand: AHS
