Product Description
Due to the increasing popularity of salt water pools, Bowman developed the CN series heat exchanger which can withstand the corrosive effects of salt water. The CN series heat exchangers are constructed of corrosion resistant cupro-nickel tubes and bronze end covers and are therefore suitable for salt water pools and spas.

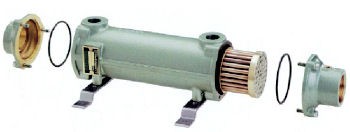

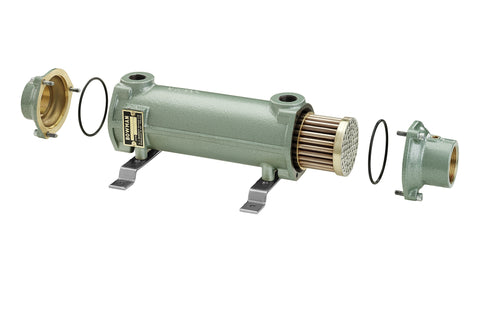

The CN series heat exchangers are suitable for applications ranging up to 1 million btu/hr. These units are easy to maintain as both the end covers and tube stack can be removed easily for cleaning. CN series pool heat exchangers are the only swimming pool units with this feature.

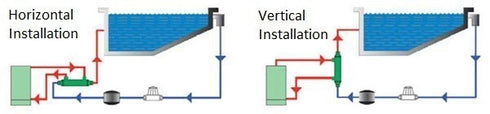

Installation of the CN series units is quite simple as there are standard mounting brackets provided with each unit and the orientation can be either vertical or horizontal.
Typical Applications
Designed for heating of pools using boilers or solar panels with either hot water or glycol as the heating medium. In warmer climates they are often used for cooling of pools using a chiller as the cooling source.
Features and Specs

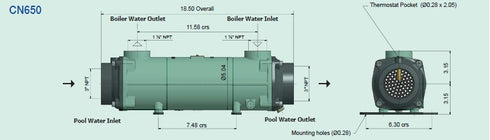

- 650,000 BTU
- Hot Side - 1 1/2 NPT

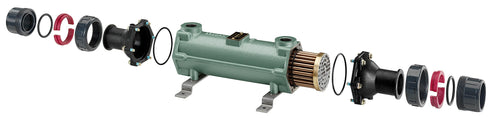

- Cold Side - 3" CPVC
- Can withstand the corrosive effects of salt water
- Suitable for salt water pools and spas
Applications:
- Pools, Spas, and Hot Tubs
- Salt water chlorinated pools
- Sea Water Applications
- Waste Water Heat Recovery
- Freshwater Aquaculture
- Aquaponics
- Plunge Pools
Standard Material:
- Tube side (Pool Water): Cupro Nickel
- Shell Side (Boiler Water): Cast Iron
Maximum Pressure:
- Hot Side: 87 psig
- Cold Side: 87 psig
Maximum Temperature:
- 100°C / 212°F
Pool Capacity (US Gal)
Up to 50,000 gallons
Features and Advantages:
- CN-Series swimming pool heaters are manufactured with cupro-nickel tubes to ensure corrosion resistance to salt water and longer equipment life.
- Due to the high flow rates through the heat exchangers, they are inherently self cleaning
- Easy selection based on swimming pool volume - please see quick select guide below
- Units kept in stock for immediate delivery.
Applications
- Pools, Spas and Hot Tubs
- Solar Heated Pools
- Domestic Hot Water
- Sea Water Applications
- Waste Water Heat Recovery
Quick Sizing Guide
Use the table below to determine which pool heater model is best suited for your salt water pool.
Nominal Capacity | Boiler Water | Pool Water | |||||||||
- | - | - | - | - | - | - | |||||
Heat Exchanger Type | kW | Btu/hr | Flow | Pressure Drop | Flow | Pressure Drop | |||||
CN200 | 58.4 | 200,000 | 9 | 1.94 | 30 | 1.00 | |||||
CN400 | 117 | 400,000 | 20 | 1.14 | 78 | 2.25 | |||||
CN650 | 190 | 650,000 | 25 | 0.75 | 100 | 2.13 | |||||
CN1000 | 292 | 1,000,000 | 38 | 1.00 | 154 | 2.00 | |||||
Please note that all swimming pool heaters are available for immediate delivery.
