DIY Kit, Build Your Own Wood Boiler or Furnace

$325.99$289.99

You Save: $36.00 (12%)

Quick Shipment

SKU: DIYKitComplete

MANUFACTURER: AH&S

  • Includes: AQ007 Ranco Digital Controller; DW1204 Stainless Dry well for Ranco controller; 4C446 Dayton Blower; FC546 Fan Cover for Dayton Fan ; LS001 Laminated Solenoid to lift fan cover; Solenoid Bracket ; Fan Blower Wire; Wiring Diagram.
  • The Dimensions (assembled): 12 3/4" Height and 6 1/2" wide
  • Volts: 115 V
  • Comes assembled!
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

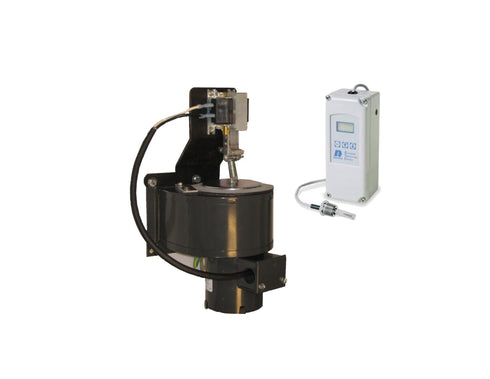

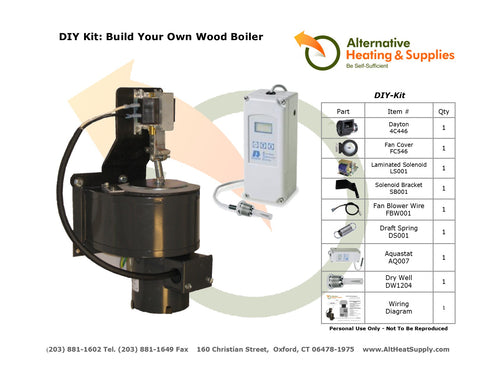

Build your own Outdoor wood Boiler Kit! This kit includes all that you see in the pictures, as well as a wiring diagram to assist you in the setup and install of the kit.

Typical Applications

Outdoor wood boiler heating system

Features

  • AQ007 Ranco Digital Controller (Which controls the Water Temperature of your Boiler)
  • DW1204 Stainless Dry well for Ranco controller (This holds the Temp Probe of the Digital controller)
  • 4C446 Dayton Blower (FN446) (The fan / Blower that feeds your boiler with air-148CFM)
  • FC546 Fan Cover for Dayton Fan (This cover prevents air entering your boiler when idling to prevent overheating and excessively smoking)
  • LS001 Laminated Solenoid to lift fan cover (This Solenoid lifts the fan cover when the Fan / Blower is activated)
  • Solenoid Bracket (Holds Solenoid)
  • Fan Blower Wire (Wire from solenoid to Blower / Fan)
  • Wiring Diagram (We have solved how to wire your Boiler to work and function great!)
  • Dimensions: 12 3/4" Height and 6 1/2" wide (This is the Measurement of the Kit Completely assembled)
  • Volts: 115 V (All you need to for electricty to your Boiler)
  • Comes assembled (This is how you get it!)

More Information
Specifications:

Build your own Outdoor wood Boiler Kit!

This kit includes all that you see in the picture.

AQ007 Ranco Digital Controller

DW1204 Stainless Dry well for Ranco controller

4C446 Dayton Blower

FC546 Fan Cover for Dayton Fan

LS001 Laminated Solenoid to lift fan cover

Solenoid Bracket

Fan Blower Wire

Wiring Diagram

Size: 20
Brand: AHS
Made In USA: Yes
