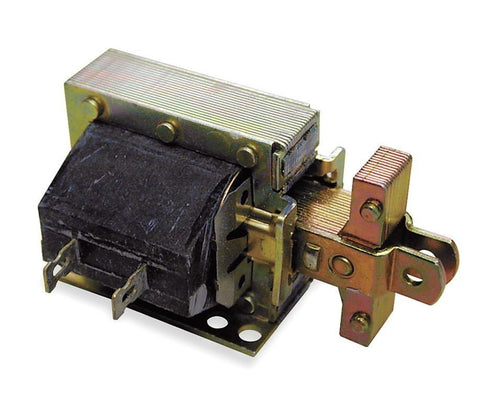

Dormeyer 1000 M-1 Dayton 4X239 Laminated Solenoid

$42.99

Quick Shipment

SKU: LS002

MANUFACTURER: Dormeyer

  • Constructed of durable laminated steel with corrosion-resistant frame and plunger.
  • Solenoids have polyester or nylon bobbins, encapsulated or taped coils, steel plunger springs, and brass plunger guides.
  • Class A coil insulation with solder lug coil terminals. Pull-type
  • Continuous duty cycle rated at 25 Degrees C
  • RoHS compliant
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

Laminated solenoid, replacement for all wm models, pull-type continuous duty cycle rated at 25 Degree constructed of durable laminated steel with corrosion-resistant frame & Plunger. Solenoids have polyester or nylon bobbins, encapsulated or taped coils, steel Plunger springs, & brass Plunger guides. Class a coil insulation with Solder Lug coil Terminals. Rohs compliant.

Performance Data

  • Coil Resistance 88 Ohms
  • Coil Voltage Rating @ 60 hz 120 VAC
  • Current @ Maximum Stroke 1.25 Amps
  • Seated Current 0.24 Ampere
  • Seated Power 9.5 Watts
    Pull Force Range 14.4 to 48 oz.
  • Length 1 5/8 Inches, Depth 1 7/16 Inches, Width 1 3/16 Inches

Features

  • Pull-type continuous duty cycle
  • Constructed of durable laminated steel with corrosion-resistant frame and plunger
  • Class a coil insulation with solder lug coil terminals
More Information
Specifications:

Laminated Solenoid, Current @ Maximum Stroke 1.25 Amps, Coil Resistance 88.0 Ohms, Coil Voltage Rating @ 60 hz 120 VAC, Seated Current 0.24 Ampere, Seated Power 9.5 Watts, Mounting Holes On Center Length 1 3/8 Inches, Mounting Holes On Center Width 5 7/8 Inches, Length 1 5/8 Inches, Depth 1 7/16 Inches, Width 1 3/16 Inches. Dayton 4X239

Solenoids Laminated

  • Constructed of durable laminated steel with corrosion-resistant frame and plunger.
  • Solenoids have polyester or nylon bobbins, encapsulated or taped coils, steel plunger springs, and brass plunger guides. Class A coil insulation with solder lug coil terminals.
  • Pull-type
  • Continuous duty cycle rated at 25 DegreeC
  • RoHS compliant
Item  Solenoid
Type  Laminated
Stroke Range  1/8 to 3/4"
Pull Force Range  14.4 to 48 oz.
Width (In.)  1-3/16
Depth (In.)  1-7/16
Length (In.)  1-5/8
Coil Volts  120VAC
Seated Amps  0.24
Seated Watts  9.5
Coil Resistance (Ohms)  88.0
Terminals  Solder Lug Coil
Amps @ Max. Stroke  1.25
Mounting Holes  1-3/8 x 7/8"
Gravity Value (Oz.)  1.76




Size: 27
Brand: Dormeyer

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
James
review for Dormeyer 1000-M-1 Dayton 4X239 Laminated Solenoid

same one on my boiler that failed after 20 years

W
Woody
review for Dormeyer 1000-M-1 Dayton 4X239 Laminated Solenoid

Just to have on hand please send me your book

c
ce
review for Dormeyer 1000-M-1 Dayton 4X239 Laminated Solenoid

fix my stove

D
Devo
review for Dormeyer 1000-M-1 Dayton 4X239 Laminated Solenoid

Never a bad idea to have a spare on hand. Bought this to go over the $199.00 mark for free shipping.

T
Terry
review for Dormeyer 1000-M-1 Dayton 4X239 Laminated Solenoid

Added this, just in case this is what is wrong and not blower itself, and we can keep the blower as a backup.
