Install Kit for outdoor wood furnace with Stainless Steel Crimp Rings & Flanges

$67.63$47.63

You Save: $20.00 (30%)

Quick Shipment

SKU: INSTKitssr

MANUFACTURER: AH&S

  • Designed for wood boiler hook-ups.
  • The Kit Includes: installation diagram; Boiler Drain; Two Ball Valves BV01; Two Black T's; Two Black Nipples; Two Crimp Rings; Two PM0101; One Roll of Teflon Tape; One set of 1" Flanges to mount pump
  • Used to be mounted to the back of wood furnace.
  • This kit also uses Stainless Steel Crimp rings, so you need a crimp tool.
  • Crimp Tool - Part # PCT02 Or Part # PCT03
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

INSTkit Install Kit for outdoor wood furnace with Stainless Steel Crimp Rings & Flanges-This kit was designed for wood boiler hook-ups. All fittings included in the kit to simplify the order process and to get those hard to find parts. We also took into consideration bleeding the air out of water lines easily. 1” pex fittings and pex crimp rings for easy installation. Crimp tools available.
This Kit is used to be mounted to the back of the wood furnace. It serves as many reasons, to help troubleshoot pumps, to bleed air from supply and return water lines and to simplify annual water flushes. This kit works on most wood boilers with 1" ports.

Typical Applications

Wood Furnace based heating system

Features

  • All fittings are included
  • High-quality fittings and parts
  • Installation diagram included
  • Boiler Drain BD12
  • One Black T BKT0112
  • Two Black Nipples BKN0102
  • Two Stainless Steel Crimp Rings
  • Two PM0101
  • One Roll of Teflon Tape
  • One set of 1" Flanges to mount pump PF001


***Very important***
This kit also uses Stainless crimp rings, so you need a crimp tool - Part # PCT02 Or Part # PCT03

**If your Outdoor boiler/stove does not have existing ball valves/shut off valves on the supply and return, it is recommended to have them. See SKU: BV01**

More Information
Specifications:

INSTkit Install Kit for outdoor wood furnace with Stainless Steel Crimp Rings & Flanges-This kit was designed for wood boiler hook-ups. All fittings included in the kit to simplify the order process and to get those hard to find parts. We also took into consideration bleeding the air out of water lines easily. 1” pex fittings and pex crimp rings for easy installation. Crimp tools available.

This Kit is used to be mounted to the back of the wood furnace. It serves as many reasons, to help troubleshoot pumps, to bleed air from supply and return water lines and to simplify annual water flushes. This kit works on most wood boilers with 1" ports.

The Kit Includes:

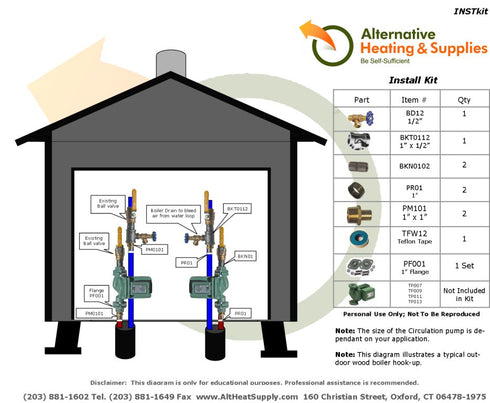

A diagram that shows how it should be installed

Boiler Drain

Two Ball Valves BV01

One Black T BKT0112

Two Black Nipples BKN0102

Two Stainless Steel Crimp Rings

Two PM0101

One Roll of Teflon Tape

One set of 1" Flanges to mount pump PF001



***Very important**** This kit also uses Crimp rings, so you need a crimp tool; Part # PCT0138 Or the long handle version for the pro's; Part # PCT02 or PCT03

**If your Outdoor boiler/stove does not have existing ball valves/shut off valves on the supply and return, it is recommended to have them. See SKU: BV01**





Size: 22
