Product Description
SINSTkitsb.
This kit was designed for Wood Boiler hook-ups and outdoor stoves without shut off valves. All fittings included in the kit to simplify the order process and to get those hard to find parts. We also took into consideration bleeding the air out of water lines easily. 1” sharkbite compression/push on fittings for easy installation. No tools required. This kit is used to be mounted to the back of wood furnace. It serves as many reasons, to help trouble shoot pumps, to bleed air from supply and return water lines and to simplify annual water flushes.
Typical Applications
Wood boilers
Features
- All fittings shown are included
- High quality fittings and parts
- Installation diagram included
- Boiler Drain BD12
- One Black T BKT0112
- Three Black Nipples BKN0102
- Two Ball Valves BV01
- One Sharkbite Disconnect tool SBDC01
- Two Sharbite x Male Fittings SBM01
- One Roll of Teflon Tape
One set of 1" Flanges to mount pump
** This kit does not include pump flanges. If you have existing ball valves/shut off valves already, please see SKU: INSTkit for install kit with pump flanges**
SINSTkitsb Install Kit This kit was designed for wood boiler hook-ups on boilers without and needing shut off/ball valves. All fittings included in the kit to simplify the order process and to get those hard to find parts. We also took into consideration bleeding the air out of water lines easily. 1” Sharkbite fittings for easy installation.
This Kit is used to be mounted to the back of wood furnace. It serves as many reasons, to help trouble shoot pumps, to bleed air from supply and return water lines and to simplfy annual water flushes.
The Kit Includes:

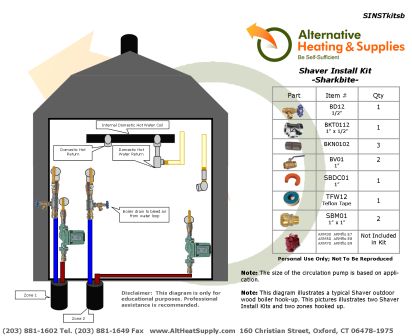

A Diagram that shows how it should be installed
Boiler Drain BD12
Two Ball Valves BV01
One Black T BKT0112
Three Black Nipples BKN0102
One Sharkbite Disconnect Clip SBDC01
Two Sharkbite X Male 1" SBM01
One Roll of Teflon Tape
** This kit does not include pump flanges. If you have existing ball valves/shut off valves already, please see SKU: INSTkit for install kit with pump flanges**
