Product Description
This is a direct replacement Digital Controller for all Cozeburn and Empyre Outdoor Wood Boilers. Specifically programmed to be used with the Cozeburn & Empyre Outdoor Wood Furnaces. Used to control water temperature and water temperature differentials.
This is just for the Digital controller and not the entire Panel
Typical Applications
Water heating applications
Features
- 1yr warranty against defects
- Pre-programmed as per Cozeburn & Empyre specs
- Basically put in and you're ready to go
- Set Point 170* F, Max Temp 180 F, Min Temp 165
- Probe range: -58 to 302°F (-50 to 150°C)
- Input: PTC thermistor 1000 @ 25°C
- Output: 15A SPDT relay @ 250 VAC resistive 5A inductive
- Pre-Programmed for Heating Applications
Technical Specs
Item: Temperature Switch, Sensor Style: Thermistor, Special Features: Compressor Defrost, Temp. Range: -58 to 302 Degrees F, Relay Style: SPDT, Switch Input Power: 115VAC, HP: 3/4, Contact Rating: 16A @ 250V Resistive, 5A Inductive, Accuracy: +/-1% Full Scale, Display: LED, Includes: Gasket, Mounting Clips, and Instructions, Manufacturers Warranty Length: 1 yr.
Love Controller Pre-programmed for Cozeburn and Empyre Models.

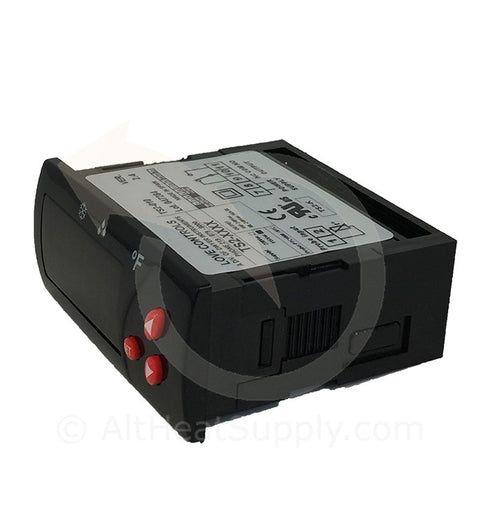

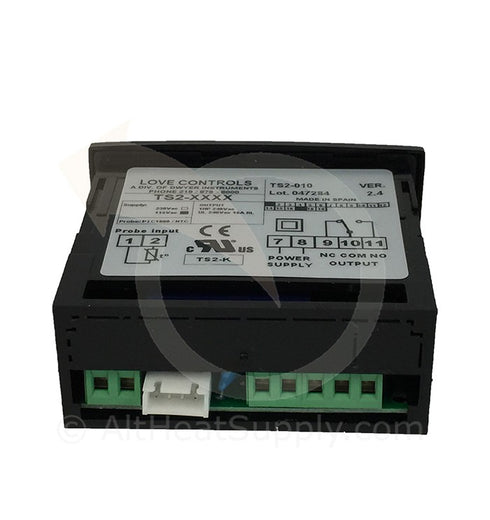

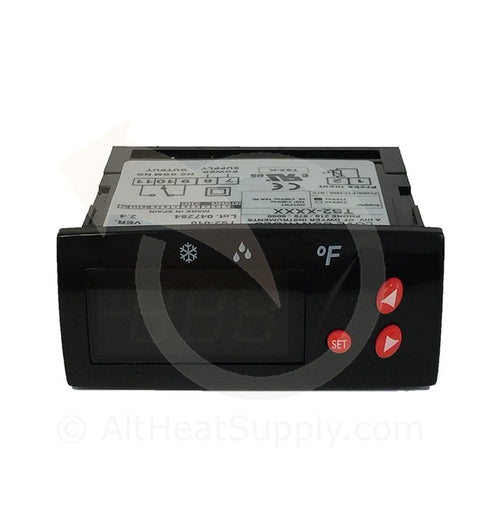

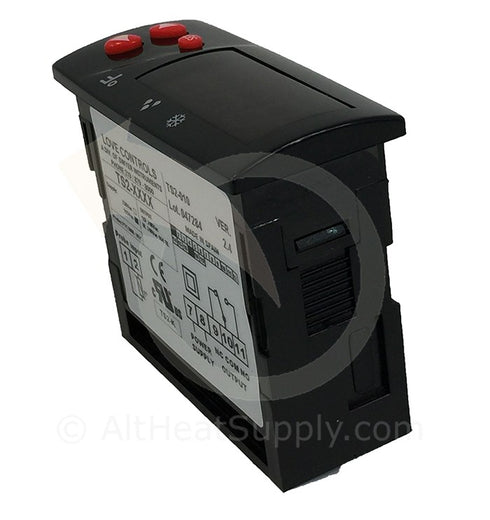

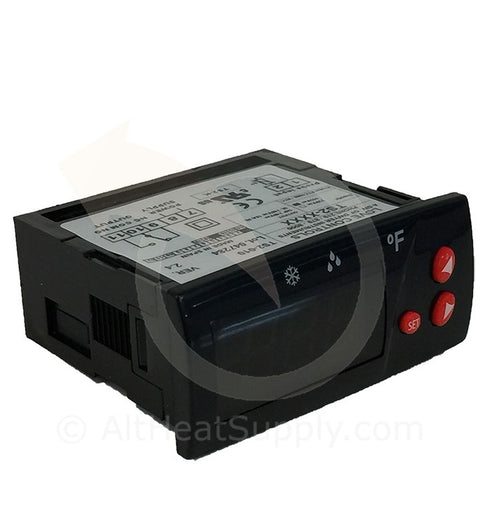

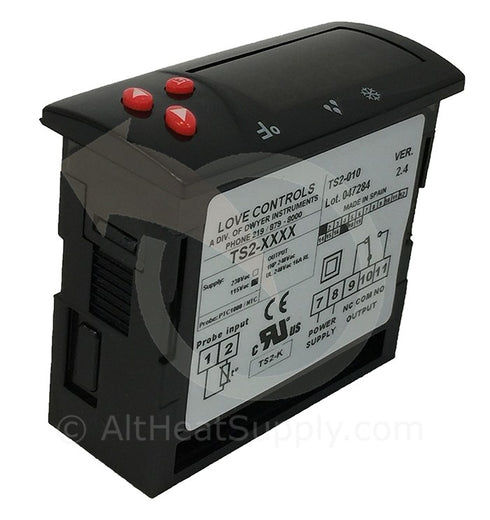

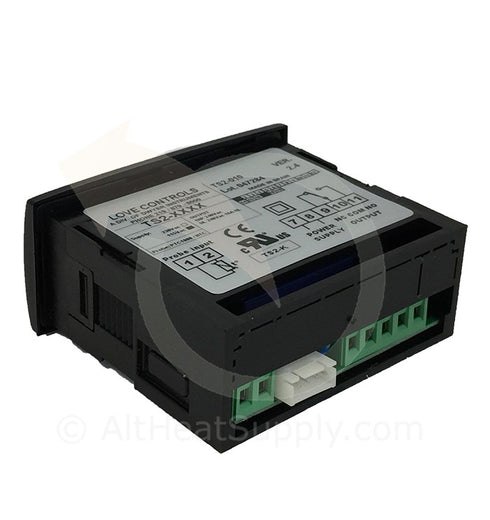

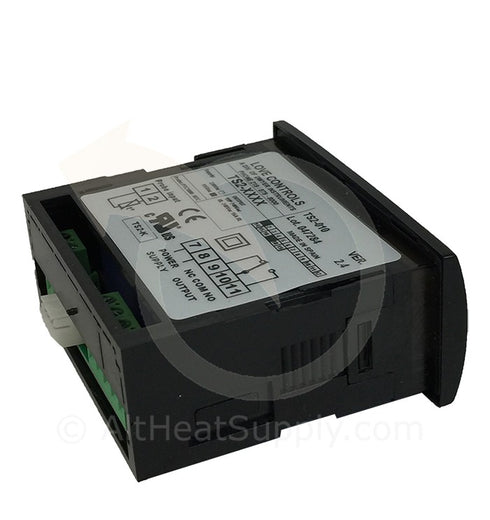

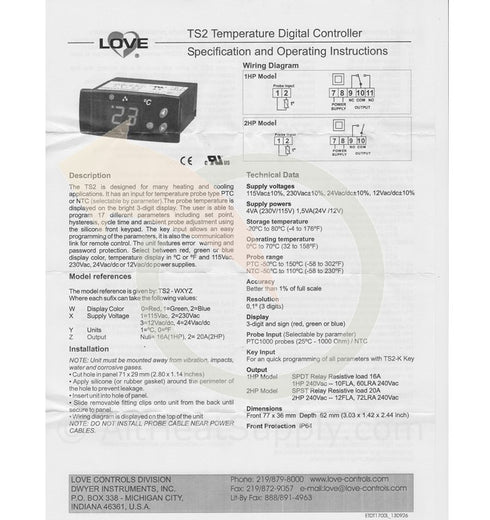

Love Controller by Dwyer TS2-010 plus programming.
These controllers do not come from manufacturer with proper programming for wood boiler applications.
