Product Description

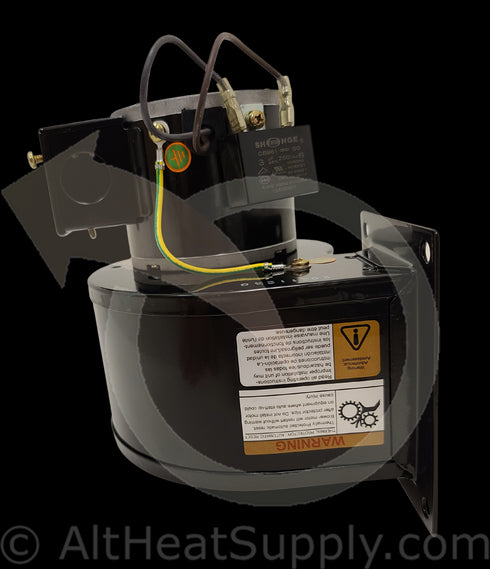

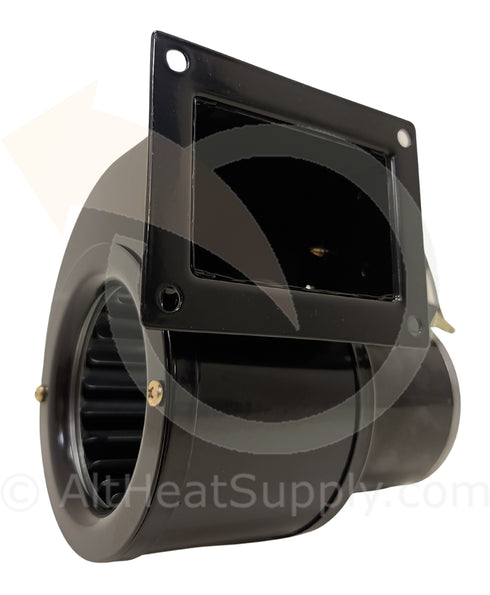

Dynamically balanced, this NBK Blower mounts in any position and operates with minimal noise and vibration, to maintain CFM at higher static pressures. Motors have cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. This Fan is used on the Wood Doctor all Models, WoodMaster 4400 & 5500, Taylor T-750, Heatmor 200 CSS and 400 CSS, HeatSource Model 1000 & Johnson John Jr. Also used for many other applications. The NBK Blower is better quality and lasts longer than the Dayton products. We no longer carry any Dayton products.
Performance Data
- CFM @ 0.000-In SP: 146
- 115 Volts, 50-60 Hz, 1 Phase
- Max Ambient Temp: 104 Deg F
- Full Load Amps: 0.75
- Motor RPM: 2720/3120

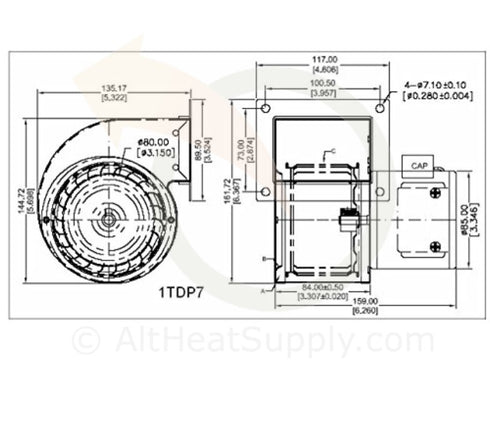

- Dimensions: Overall height 5 3/4'', overall width 6 5/16'', overall depth 5 3/8''
Features
- Automatic Overload Protection
- Noise and vibration are held to a minimum to maintain CFM at higher static pressures.
- UL and C-UL recognized (E47479), except No. 2C646 is not UL or C-UL recognized, and No. 2C647 is UL recognized (E22286) and CSA certified (LR12645).
- Direct replacements for many OEM blowers with same physical footprint
- All-position mounting
- Min./max. operating temp. range: -20 Degree to 104 DegreeF
- Motor enclosure: open
- Shaded Pole
- Includes discharge mounting flange

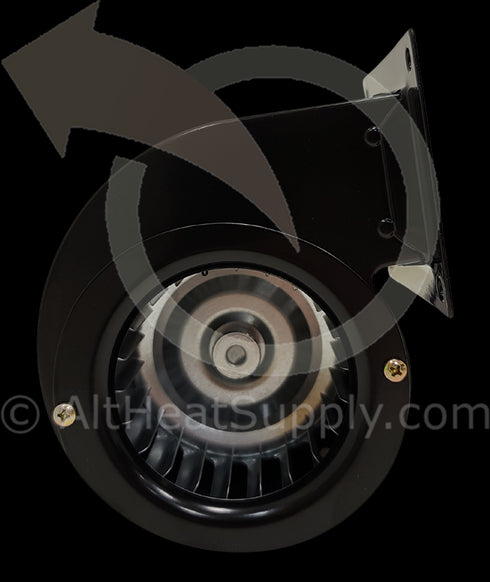

- Wheel Type:Forward Curve
- Blower Outlet Shape: Rectangular
- Replaces Dayton 1TDP7, 4C446
Item | PSC Blower |
Type | Forward Curve, Direct Drive |
Wheel Dia. (In.) | 3-15/16 |
Wheel Width (In.) | 2-1/2 |
CFM @ 0.000-In. SP | 146 |
CFM @ 0.100-In. SP | 140 |
CFM @ 0.200-In. SP | 126 |
CFM @ 0.300-In. SP | 124 |
CFM @ 0.400-In. SP | 120 |
CFM @ 0.500-In. SP | 110 |
Voltage | 115 |
Hz | 50/60 |
Phase | 1 |
Full Load Amps | 0.75 |
RPM | 2720/3120 |
Bearing Type | Ball |
Motor Type | Permanent Split Capacitor |
Motor Enclosure | Open |
Motor Insulation | Class B |
Thermal Protection | Auto |
Lead Length (In.) | 13 |
Conduit Box | Yes |
Ambient Temp. (Deg. F) | 104 |
Max. Inlet Temp. (Deg. F) | 104 |
Inlet Dia. (In.) | 3-1/8 |
Outlet Height (In.) | 2-3/16 |
Outlet Width (In.) | 3-1/4 |
Overall Height (In.) | 5-3/4 |
Overall Width (In.) | 6-5/16 |
Overall Depth (In.) | 5-3/8 |
Mounting | All Position |
Housing Finish | Black Enamel |
Housing Material | Rolled Steel |
Agency Compliance | UL Recognized US and Canada (E47479) |
Replaces | 4C446 |
Includes | Discharge Mounting Flange |
30 to 312 CFM PSC, Shaded Pole, DC, and 3-Phase Blowers, Rectangular Outlet
Dynamically balanced blowers provide smooth and quiet operation.
Noise and vibration are held to a minimum to maintain CFM at higher static pressures. Motors have cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. UL and C-UL Recognized (E47479), except No. 2C646 is not UL or C-UL Recognized, and No. 2C647 is UL Recognized (E22286) and CSA Certified (LR12645).
Direct replacements for many OEM blowers with same physical footprint
All-position mounting
Min./max. operating temp. range: -20 Degree to 104 DegreeF
Max. inlet and ambient temp.: 104 DegreeF
Motor enclosure: open
Note: Not for use with speed controllers.
