Product Description

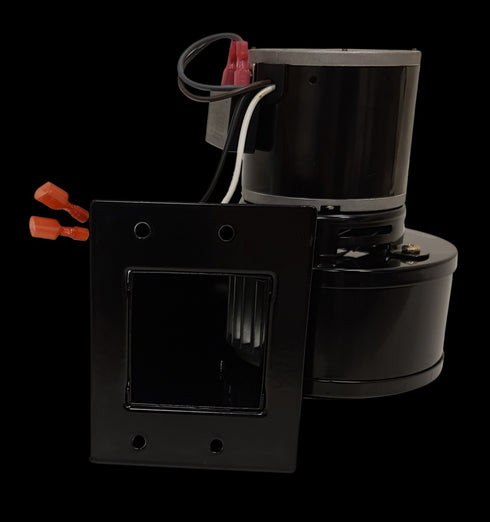

Dynamically balanced, the NBK Blower Replacement for the Dayton 4C442 Blower mounts in any position and operates with minimal noise and vibration, to maintain CFM at higher static pressures. Motors have cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life.
Performance Data
- CFM @ 0.000-In SP: 140
- 115V
- Max Ambient Temp: 104 Deg F
- Full Load Amps: 0.47
- Motor RPM: 3000
- Bearing Type: Sleeve

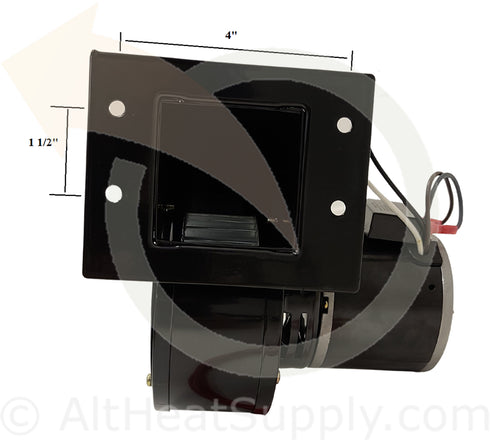

- Dimensions: Overall height7-7/32", overall width6-3/16", overall depth6-3/4"
Equivalent to:
Fasco 50752-D500, Dayton 2C610, 1TDP5, 7021-3467, 7021-2001, 7021-6745, 7073-0488,7021-10838, Dundas greenhouse Blower/7021-7857,7021-4799 (England Stove), 7058-0383, 80472, 7021-1835, 7021-5855
Features
- Noise and vibration are held to a minimum to maintain CFM at higher static pressures.
- All-position mounting
-
Blower Motor Type: Shaded Pole
- Min./max. operating temp. range: -20 Degree to 104 DegreeF
- Motor enclosure: Open dripproof
- Lead Length6"

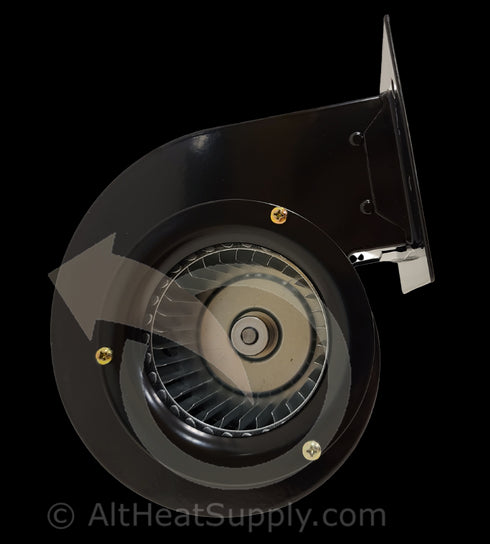

- Wheel Type:Forward curve
- Blower Outlet Shape: Rectangular
- Agency ComplianceUL Component Recognized, CSA Certified
- Replaces4C442
More Information
Specifications:
Size: 24
Brand: NBK
NBK Replacing Dayton 6FHX5
Technical Specs
- Item OEM Blower
- Blower Outlet-Shape Square
- With Flange Yes
- Blower Wheel Diameter 3-13/16"
- Blower Wheel Width 1-7/8"
- Blower Item OEM Specialty Blower
- Blower Voltage 115VAC
- Blower Motor Type Shaded Pole
- Blower Thermal Protection Auto
- Blower Conduit Box Yes
- CFM @ 0.000-In. SP 140
- CFM @ 0.100-In. SP 136
- CFM @ 0.150-In. SP 133
- CFM @ 0.200-In. SP 131
- CFM @ 0.300-In. SP 125
- CFM @ 0.400-In. SP 119
- CFM @ 0.500-In. SP 110
- Hz 50/60
- Phase 1
- Full Load Amps 0.47
- RPM 3000
- Bearing Type Sleeve
- Motor Enclosure Open Dripproof
- Motor Insulation Class B
- Lead Length 6"
- Max. Ambient Temp. 104 Degrees F
- Max. Inlet Temp. 104 Degrees F
- Inlet Dia. 3-1/8"
- Outlet Height 2-1/2"
- Outlet Width 2-1/2"
- Overall Height 7-7/32"
- Overall Width 6-3/16"
- Overall Depth 6-3/4"
- Wheel Type Forward Curve
- Drive Type Direct
- Mounting Position All Position
- Housing Finish Baked Enamel
- Housing Material Steel
- Housing Color Black
- Agency Compliance UL Component Recognized, CSA Certified
- Replaces 4C442
