Product Description

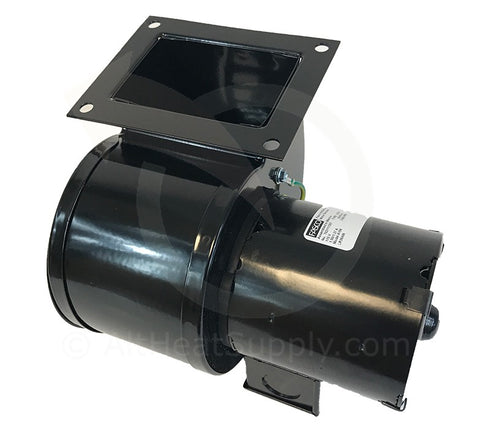

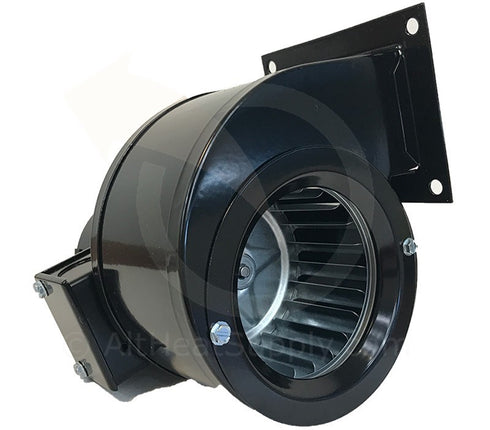

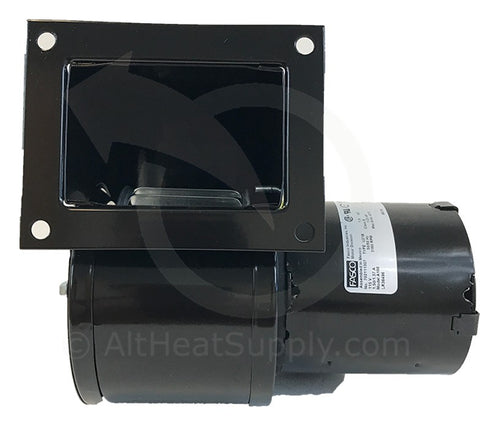

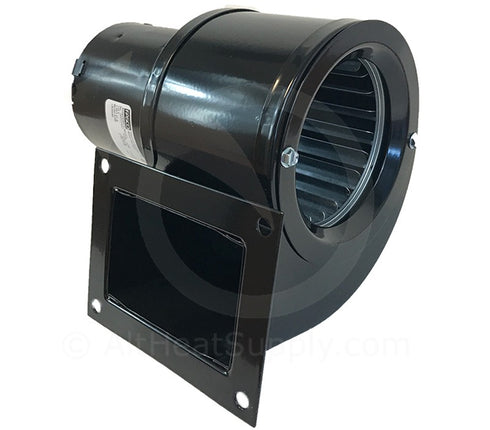

NBK Blower replaces Fasco A166 702111307 / 7021-11307- Direct Drive, CFM 145, Amps 0.68/0.75. 115 V. 50 / 60 HZ. RPM 2720/3120 single speed, sleeve bearing, thermally protected, shaded pole. It is suitable for use in heating and ventilation applications such as exhaust vent fans for furnaces.
Performance Data
- CFM @ 0.000-In SP: 145
- 115 V
- Max Ambient Temp: 104 Deg F
- Full Load Amps: 0.75
- Motor RPM: 3120

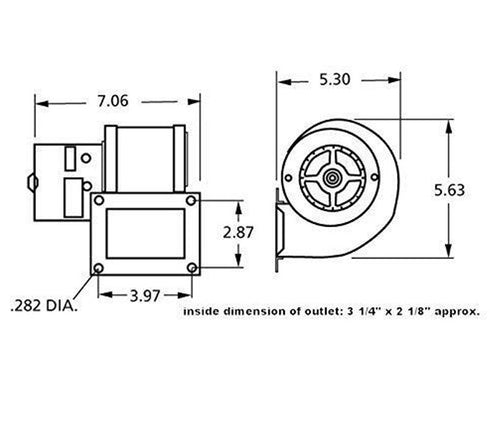

- Dimensions: Wheel 3-3/4'' x 2-1/2''
Features
- Shaded Pole Blower
- Sleeve bearing
- Single-speed
- Thermally protected to guard against overheating
- UL recognized, CSA certified
- Replaces 702110411 & AO Smith JA1P110NS
More Information
Specifications:
NBK Blower replaces Fasco A166
Direct Drive, CFM 145, Amps 0.68/0.75. 115 V. 50 / 60 HZ. RPM 2720/3120 single speed, sleeve bearing, thermally protected, shaded pole, Wheel 3-3/4 x 2-1/2 In. Includes discharge mounting flange.
- 3120 RPM Shaded Pole Blower
- 0.75 amps @ 115 Volts 50/60hz
- 115 CFM
