Product Description

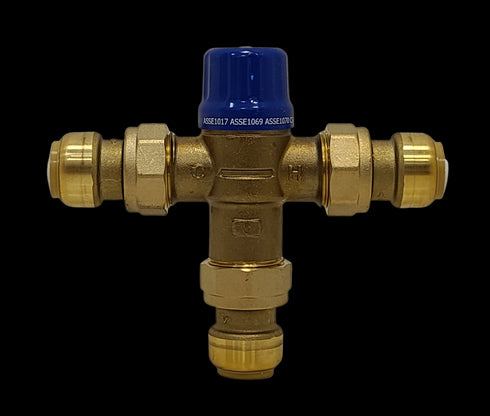

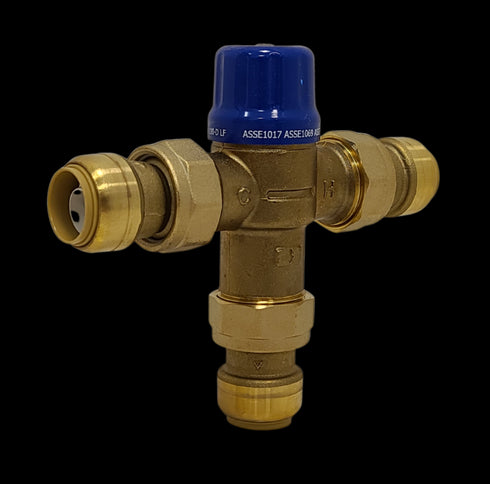

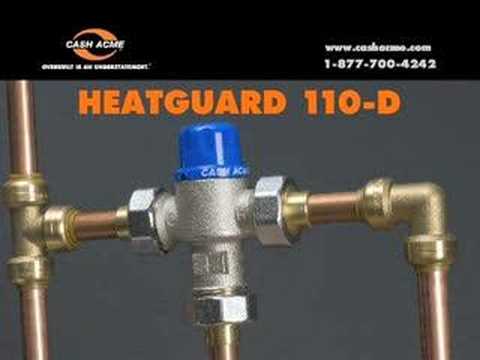

The Heatguard®110-D 24105-0000 SharkBite Connections is a Temperature Actuated Mixing Valve that mixes hot water with cold to deliver tempered water at a controlled temperature to 120°F (49°C) maximum.The Heatguard®110-D is designed to assist in the prevention of scalding.The Heatguard®110-D is intended for installation at the water heater to distribute controlled temperature water through the domestic hot water system or at point-of-use applications.The valve delivers water at a maximum of 120°F (49°C), allowing the heater to be set at 140°F (60°C) or higher, thus providing a greater effective volume of hot water and reducing the chances of Legionella bacteria growth in the water.The Heatguard®110-D is a high quality mixing valve incorporating the latest in Thermostatic Technology. It features a robust design based on the expertise gained from years of experience in the design and manufacture of safety valves. Every valve is tested for performance on an automated testing station during the assembly process. The valve is third party listed for both distribution and point-of-use applications.The Heatguard®110-D incorporates a fast acting, high quality thermostatic element that senses the outlet water temperature and reacts to maintain a stable delivery temperature even under changing flows or variations in supply temperatures. The valve also greatly reducesthe outlet flow in the event of a cold water supply failure.The Heatguard®110-D features a locking mechanism to prevent unwanted adjustment above120°F (49°C). All valves are supplied standard with check valves.
Typical Applications
Domestic water distribution and radiant heating systems. To control water temperature at the source of heat (hot water tank), point-of-use (sinks, lavatories, or bath tubs) or multiple fixtures.
Features
- Delivers water at a maximum of 120°F (49°C) throughout the system.
- Unique purpose designed adjuster tool minimizes unauthorized tampering with valve setting.
- Reduces the chances of Legionellae bacteria growth in the water.
- Certified to ASSE 1017 & CSA B125.
- Listed by ASSE and IAPMO.
- Size: 3/4'' SharkBite ends for connections
Performance:
Outlet temperature range . . . . 95 - 120°F (35 - 49°C)
Temp. hot supply . . . . . . . . . . . 195°F (90°C) max.
Temp. cold supply . . . . . . . . . . 39 - 80°F (4 - 27°C)
Temp. stability . . . . . . . . . . . . . +/- 5°F (3°C)
Working pressure . . . . . . . . . . . Max. 145 psi (1,000 kPa)
Flow rate, minimum . . . . . . . . . 1.0 gpm
Flow rate, maximum . . . . . . . . . 20 gpm
