Dragon Breath Side Arm Heat Exchanger 38.4"

$204.00$169.99

You Save: $34.01 (17%)

Quick Shipment

SKU: SA115

MANUFACTURER: AH&S

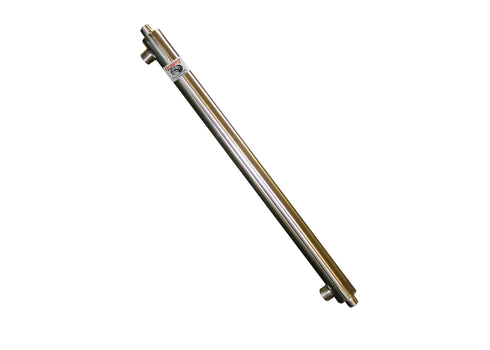

  • Made of 304 stainless steel.
  • It increases heat transfer efficiency significantly by using a finned tube internally.
  • It has bigger capacity and faster heating.
  • Size: 38.4
  • Port Size: Boiler- 1" MNPT ; Domestic- 3/4" MNPT
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

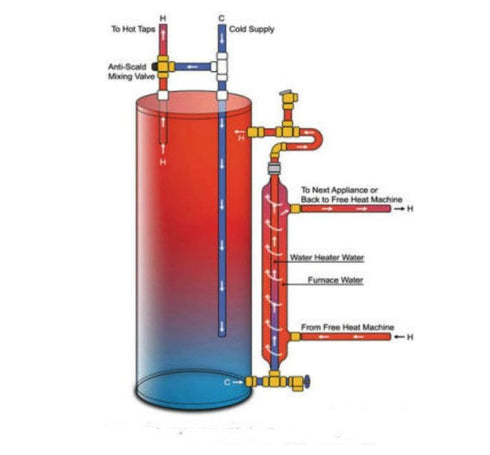

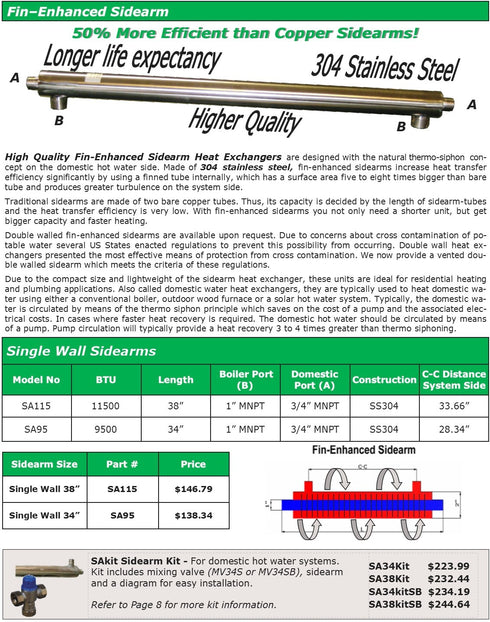

High Quality Fin-Enhanced Dragon Breath Sidearm Heat Exchanger is designed with the natural thermo-siphon concept on domestic hot water side. Traditional sidearms are made of two bare copper tubes. Thus, its capacity is decided by the length of sidearm-tubes and the heat transfer efficiency is very low.

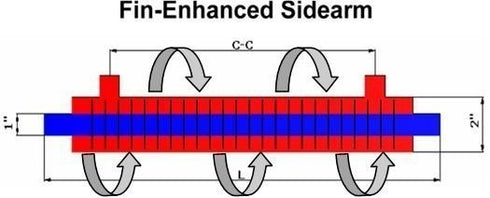

Made of 304 stainless steel, fin-enhanced sidearm increases heat transfer efficiency significantly by using a finned tube internally, which has surface area five to eight times bigger than bare tube and produces great turbulence on system side. With fin-enhanced sidearm you not only need a shorter unit, but get bigger capacity and faster heating.

Typical Applications

Ideal for residential heating and plumbing, solar hot water heating and outdoor wood furnace applications.

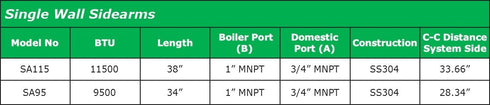

Features and Specs

  • Made of 304 stainless steel
  • Lenght: 38.4''
  • Boiler Port: 1" MNPT
  • Domestic Port: 3/4" MNPT
  • It increases heat transfer efficiency significantly by using a finned tube internally
  • It has bigger capacity and delivers faster heating







***Mixing valves or Scorch guides are recommended. We sell a SAkit- Sidearm Kit- For domestic hot water systems. This kit includes mixing valve (MV34S or MV34SB), sidearm and a diagram for easy installation. See SKU: SA38Kit or SA38kitSB

More Information
Specifications: Size: 22
Brand: Dragon SA

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Byron Bland
Great heat exchanger

I am not using this heat exchanger as advertised. I selected it as an alternative exchanger to heat a hot tub using bromine disinfection instead of the very expensive exchangers advertised for pools/spas. It is working great but has only been in use for about 2 weeks. I will report back if it fails or when it fails. But, as for transferring heat between wood boiler and spa water, It does a great job.

G
Greg Zander

Great product

J
JLB
This is for my domestic hot water

WORKS GREAT

j
joe
review for Side Arm Heat Exchanger 38.4"

Eric was very helpful and knowledgeable on the phone.

D
DBH
review for Side Arm Heat Exchanger 38.4"

This is to heat my domestic water to eliminate using the electric hot water heater during the heating season.
