Product Description

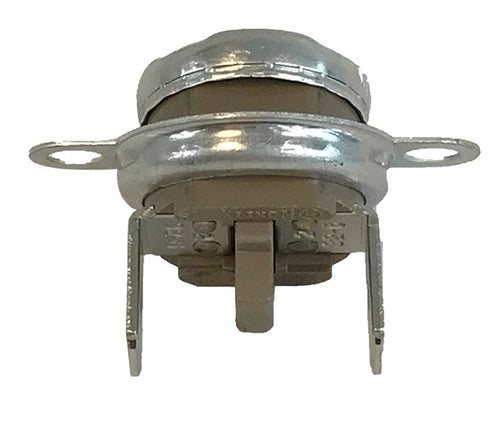

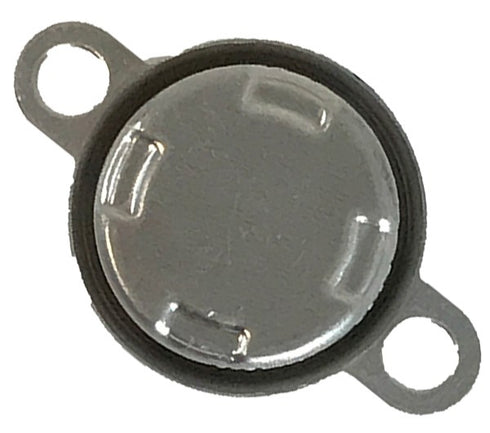

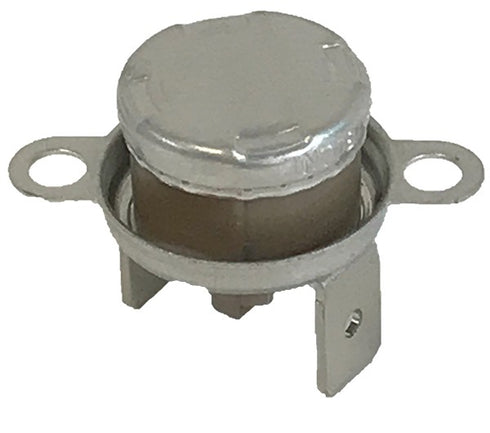

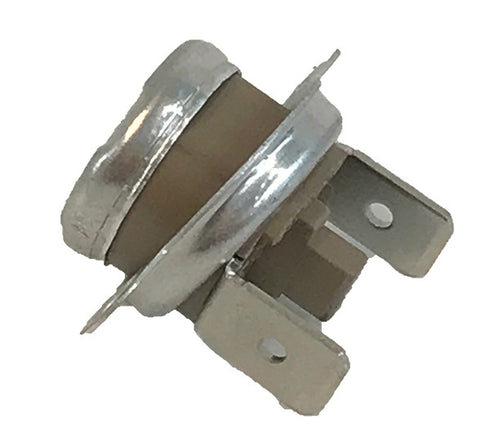

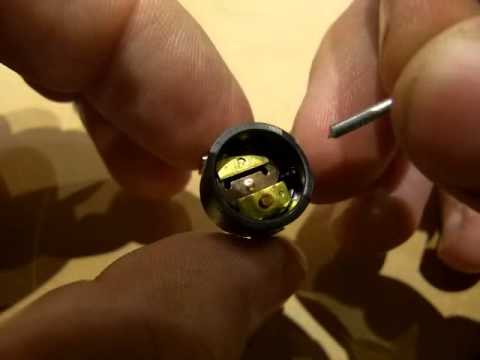

Snap Disc with Manual Reset, snap switch thermostats are bimetal mechanical thermostats that function via the thermal expansion and contraction of a bimetal disc that “snaps” from a convex to a concave shape at a set temperature. When the disc “snaps”, it either completes or interrupts a circuit. The most common application for a snap switch or snap action thermostat is as an over-temperature protection (or OTP) failsafe.
Typical Applications
They are used in both heating and cooling applications to ensure the process temperatures do not exceed the thermal limits of the equipment or process
Performance Data
- ItemSnap Disc Control
- TypeLimit, Rollout, Manual Reset
- Switch ActionOpen on Rise
- Switch TypeSPST
- Temp. Range (F)180
- Height (In.)2-3/8
- Width (In.)2-3/4
- Depth (In.)3-3/4
- Circuit #1 Switch Closes @ (F)Manual
- Circuit #1 Switch Opens @ (F)180
- Inductive Amps @ 120V14
- Inductive Amps @ 240V10
- Resistive Amps @ 120V25
- Resistive Rating 240V25
- Voltage Range120 to 240
Technical Specs
Item: Snap Disc Control, Type: Limit, Rollout, Manual Reset, Switch Action: Open on Rise, Switch Type: SPST, Temp. Range (F): 180, Height (In.): 2-3/8, Width (In.): 2-3/4, Depth (In.): 3-3/4, Circuit #1 Switch Closes @ (F), Manual, Circuit #1 Switch Opens @ (F): 180, Inductive Amps @ 120V: 14, Inductive Amps @ 240V: 10, Resistive Amps @ 120V: 25, Resistive Rating 240V: 25, Voltage Range: 120 to 240.
