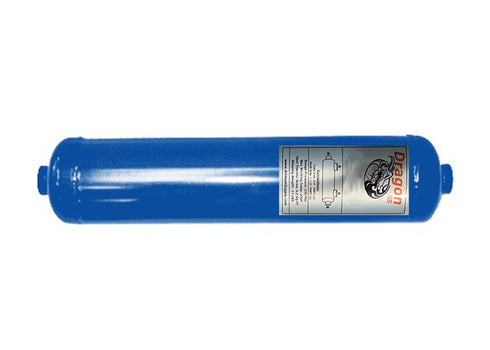

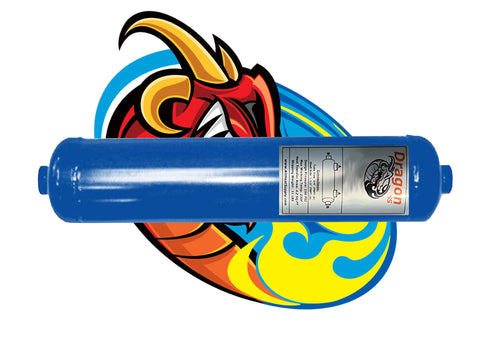

Dragon Breath Stainless Steel Tube and Shell Heat Exchanger 1200k BTU

$1,734.00$1,379.99

You Save: $354.01 (21%)

Quick Shipment

SKU: SS1200

MANUFACTURER: AH&S

  • Manufactured entirely of Stainless Steel 316L.
  • Due to the high flow rates through the heat exchangers, it inherently is a self cleaning equipment.
  • With the high flow rate of the pool water going through the shell and boiler water through the tubes, low pressure drop is achievable.
  • Easy selection based on pool volume
  • Units kept in stock for immediate delivery.
Add To Wishlist Added To Wishlist
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

The Dragon Breath SS-Series pool heaters provide a simple method of heating swimming pool water indirectly from a central heating boiler. All Dragon Breath          SS-Series pool heaters are manufactured entirely of stainless steel 316L to ensure corrosion resistance to chlorinated pool and spa water and longer equipment life.

Typical Applications

  • Pool and Spas Application


Features and Specs

  • 1.200.000 BTU
  • Manufactured entirely of Stainless Steel 316L
  • Due to the high flow rates through the heat exchangers, it inherently is a self cleaning equipment
  • With the high flow rate of the pool water going through the shell and boiler water through the tubes, low pressure drop is achievable
  • Easy selection based on pool volume
  • Units kept in stock for immediate delivery
        More Information
        Specifications:
        Quick Sizing Reference
        Use this table to determine which pool heater model is best suited for your pool or spa.
        Pool Size (gallons)1F/hr Heat up Btu/hrModel2F/hr Heat up Btu/hrModel
        600050,000SS100100,000SS100
        12000100,000SS170200,000SS170
        18000150,000SS260300,000SS260
        28000234,000SS370468,000SS370
        36000300,000SS640600,000SS640
        46000300,000SS1200600,000SS1200

        Pool_Heat_Exchanger
        *The dimensions of the heat exchanger are listed in the table below.

        RatingDesign PressureDesign TemperatureMaterial
        Shell Side150 psi230 FTubingSS316L
        Tube Side150 psi250 FShellSS316L

        Stainless Steel Heat Exchanger Dimension Table
        Dimensions (inches)

        Connection FNPT

        ModelBTU Capacity LDC-CFHTubesieShellside
        (Btu/hr)(Btu/hr)inchinchinchinchinchinin
        SS10080,00015.753.507.704.050.503/41.5
        SS170160,00018.753.5010.704.050.503/41.5
        SS260240,00020.004.2511.254.300.4312
        SS370350,00025.754.2517.254.300.4312
        SS640650,00041.754.2533.254.300.431.52
        SS12001,200,00036.255.2527.004.600.5122


        Please note that all pool heaters are available for immediate delivery.

        Size: 24
        Brand: Dragon SS
        Made In USA: Yes
