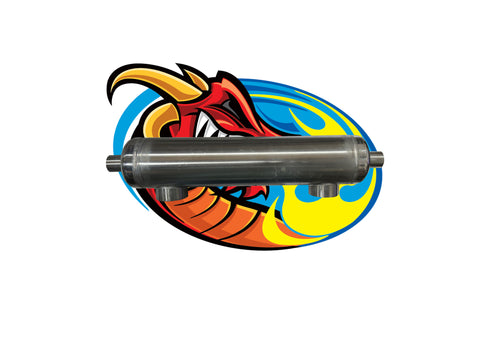

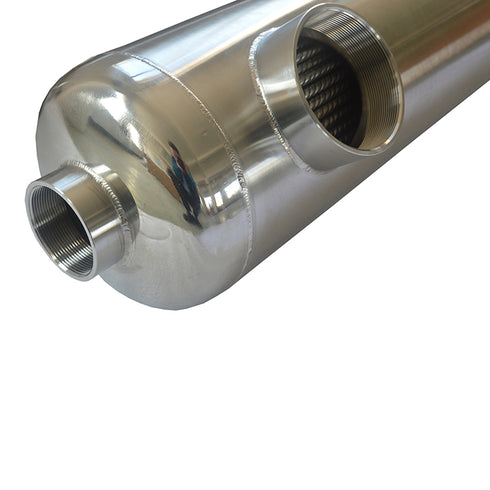

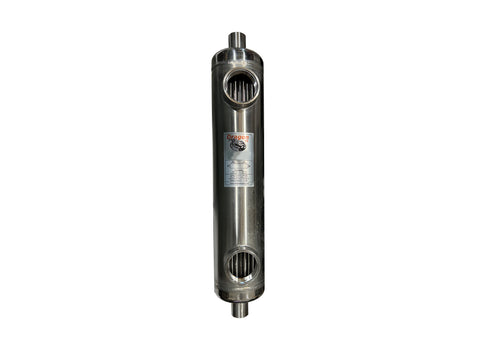

Stainless Steel Tube and Shell Heat Exchanger 640k BTU

$1,300.00$959.99

You Save: $340.01 (27%)

Quick Shipment

SKU: SS640

MANUFACTURER: AH&S

  • Manufactured entirely of Stainless Steel 316L.
  • Due to the high flow rates through the heat exchangers, it inherently is a self cleaning equipment.
  • With the high flow rate of the pool water going through the shell and boiler water through the tubes, low pressure drop is achievable.
  • Easy selection based on pool volume- Pool Size 36,000 gal
  • Units kept in stock for immediate delivery.
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

The SS-Seriespool heaters provide a simple method of heating swimming pool water indirectly from a central heating boiler. All SS-Series pool heaters are manufactured entirely of stainless steel 316L to ensure corrosion resistance to the chlorinated pool and spa water and longer equipment life. If there is standing chlorine left in the exchanger, this will cause some pitting and premature deterioration.

SS-Series pool heat exchangers heat swimming pool water indirectly from a central heating hot water boiler, a solar-heated glycol loop, or a geothermal loop. These heat exchangers are highly efficient since you are utilizing the higher efficiency of the boiler instead of the lower efficiency direct heated gas-fired pool heaters. The SS-Series heat exchangers are flexible and can be used for many applications including maintaining temperatures of spas, hot-tubs, swimming pools, aquaculture freshwater pond heating, and also fountain water heating.

Typical Applications

  • Pool and Spas Application

Specs

  • 640,000 BTU
  • With the high flow rate of the pool water going through the shell and boiler water through the tubes, low pressure drop is achievable
  • Easy selection based on pool volume
  • Pool Size: Up to 36,000 gal
  • Tube Side Port: 1.5"
  • Shell Side Port: 2"

Features:

  • 100% Stainless Steel 316L to ensure corrosion resistance for chlorine pools and spas
  • Rugged construction with heavy gauge material allows for long uninterrupted life of the heat exchanger
  • Due to the high flow rates through the heat exchangers, it inherently is a self-cleaning equipment
  • Low-pressure drops

Benefits:

  • Corrosion Resistant Self Cleaning
  • Compact Design
  • Low-Pressure Drops
  • Sturdy Construction
  • Long Life
  • Immediate Delivery from Stock

Applications:

  • Swimming pools, spas, and hot tubs
  • Domestic hot water
  • Wastewater heat recovery
  • Freshwater Aquaculture Aquaponics, Pisciculture

Standard Material:

  • Tube Stacks: SS316L
  • Shell: SS316L
  • Maximum Pressure Rating: 150 PSIG
  • Maximum Temperature Tube Side: 250º F
  • Maximum Temperature Shell Side: 230º F
        More Information
        Specifications:
        Quick Sizing Reference
        Use this table to determine which pool heater model is best suited for your pool or spa.
        Pool Size (gallons)1F/hr Heat up Btu/hrModel2F/hr Heat up Btu/hrModel
        600050,000SS100100,000SS100
        12000100,000SS170200,000SS170
        18000150,000SS260300,000SS260
        28000234,000SS370468,000SS370
        36000300,000SS640600,000SS640
        46000385,000SS1200700,000SS1200

        Pool_Heat_Exchanger
        *The dimensions of the heat exchanger are listed in the table below.

        RatingDesign PressureDesign TemperatureMaterial
        Shell Side150 psi230 FTubingSS316L
        Tube Side150 psi250 FShellSS316L

        Stainless Steel Heat Exchanger Dimension Table
        Dimensions (inches)

        Connection FNPT

        ModelBTU Capacity LDC-CFHTubesieShellside
        (Btu/hr)(Btu/hr)inchinchinchinchinchinin
        SS100100,00015.753.507.704.050.503/41.5
        SS170170,00018.753.5010.704.050.503/41.5
        SS260260,00020.004.2511.254.300.4312
        SS370370,00025.754.2517.254.300.4312
        SS640640,00041.754.2533.254.300.431.52
        SS12001,200,00036.255.2527.004.600.5122


        Please note that all pool heaters are available for immediate delivery.

        Size: 24
        Brand: Dragon SS
        Made In USA: Yes
