Product Description:

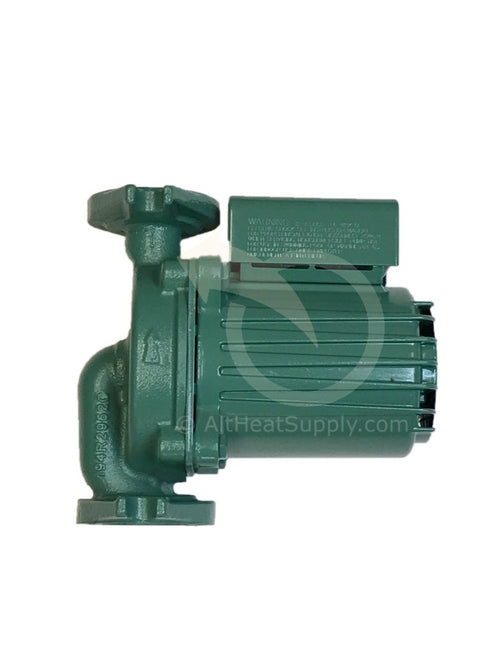

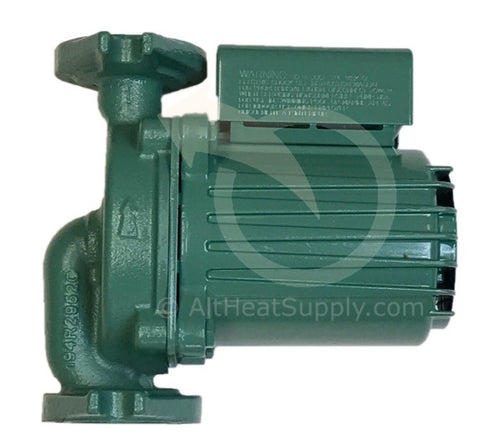

Taco 009 BF5-J Pump (Cast Iron pump with a Bronze Cartridge) - is an upgraded and superior pump then the standard Taco 009 and equivalent base model pumps. The Bronze Cartridge increases the life of the pump and is able to handle the hard application better. This pump will seamlessly replace other pumps without any issues, it simply is the exact same pump as the Taco 009 with better parts inside. How much time do you waste replacing pumps? The cartridge is replaceable if you do have a failure (SKU: RC009). Taco 009 BF5-J Pump (Cast Iron pump with a Bronze Cartridge) - is specifically designed for higher-head/lower-flow applications in a wide range of residential and light commercial systems. It is ideal for high-pressure drop boilers, fan coil units, heat exchangers, larger radiant systems, heat recovery, and geothermal systems. The bronze cartridge 009 should be used on open-loop systems. Taco 009 BF5-J & Taco 0011 BF4-J are the flagship pumps of the wood boiler industry.
BF – Bronze, Flanged Variations: J – Bronze Cartridge with Cast Iron Casing; These “J” pumps were designed for open & closed systems. These “J” pumps were designed for open & closed systems due to the amount of oxygen in the systems. The Bronze Cartridge increases the life of the pump and is able to handle the hard application better. This cartridge prevents the pump from deteriorating due to oxygen in the water system.

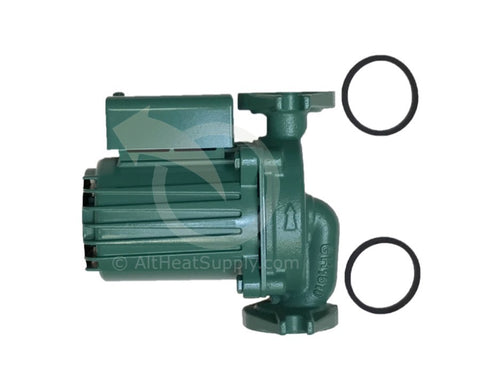

***Rubber gaskets included with pump***
Application:
The Taco 009 is designed for a wide range of residential and light commercial higher-head/lower-flow water circulating applications. Typical uses include hydronic heating, radiant in-floor/panel heating, and closed-loop solar heating systems. The Stainless Steel 009 can be used in higher-head/lower-flow heat recovery, open-loop solar heating and light commercial domestic water recirculation systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator (SKU: RC009). Compact, direct-drive, low power consumption design is ideal for high-efficiency jobs.
Typical Applications
Hydronic Heating
Radiant In-Floor/Panel Heating
Heat Recovery
Closed-Loop Solar Heating Systems
Performance Data:
- Flow Range: 0-10 GPM
- Head Range: 0-35 Feet
- Maximum Fluid Temperature: 230 degrees F (110 degrees C)
- Min. Fluid Temperature: 40 ̊F (4 ̊C)
- Horse Power: 1/8
- Working pressure: 150 PSI
- Connection Sizes: 3/4", 1", 1-1/4" Flanged
Features:
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Unique Replaceable Cartridge Design -field serviceable (SKU: RC009)
- Direct Drive-Low Power Consumption
- Self-Lubricating
- No Mechanical Seal
- Unmatched Reliability
- Flange-to-Flange Dimensions

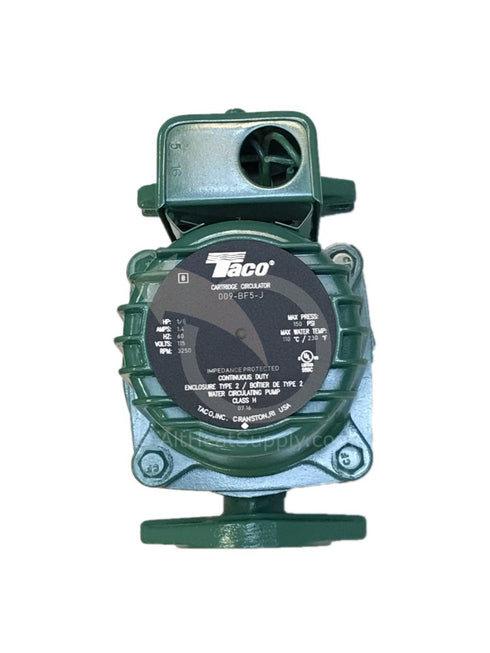

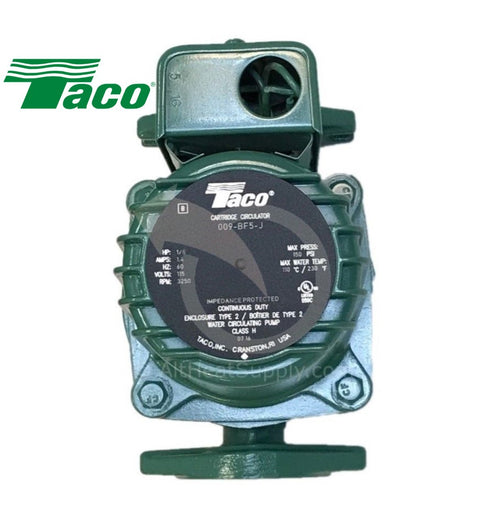

Electrical Data:
Volts: 115
Hz: 60
Amps: 1.4
RPM: 3250
HP: 1/8
The Taco 009 is designed for a wide range of Residential and Light Commercial higher-head/lower flow water circulating applications. Typical uses include Hydronic heating, Radiant In-Floor/Panel heating, and closed-loop Solar heating systems. The Bronze 009 can be used in higher-head/lower flow Heat Recovery, open-loop Solar heating and Light Commercial Domestic Water. The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption design is ideal for high-efficiency jobs.

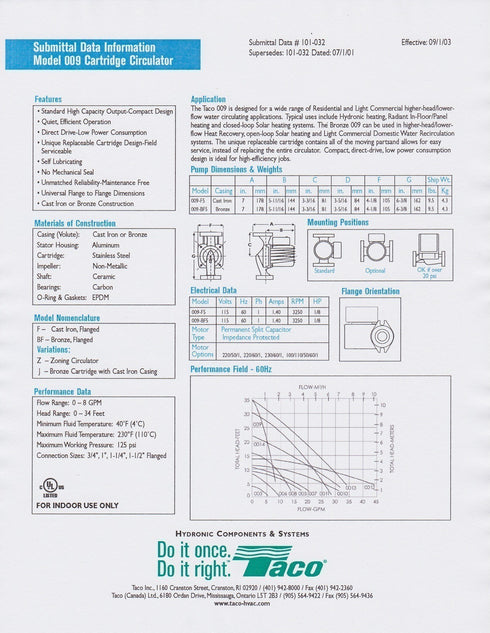

Taco 009 Circulator Submittal Data
Typical Applications
Hydronic Heating
Radiant In-Floor/Panel Heating
Closed-Loop Solar Heating Systems
Performance Data
Flow Range: 0-8 GPM
Head Range: 0-34 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C) Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4"Flanged
Features
Standard High Capacity Output Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable (SKU: RC009)
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Bronze Construction
