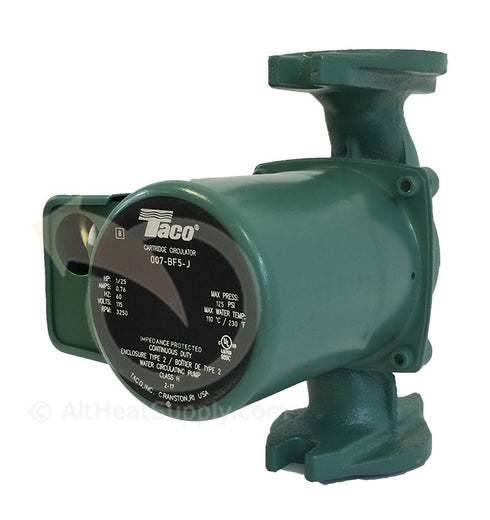

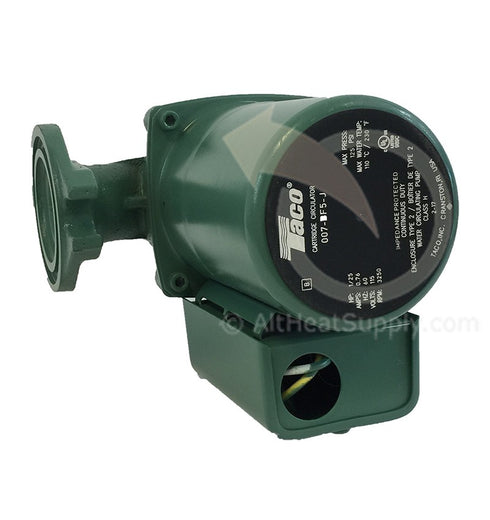

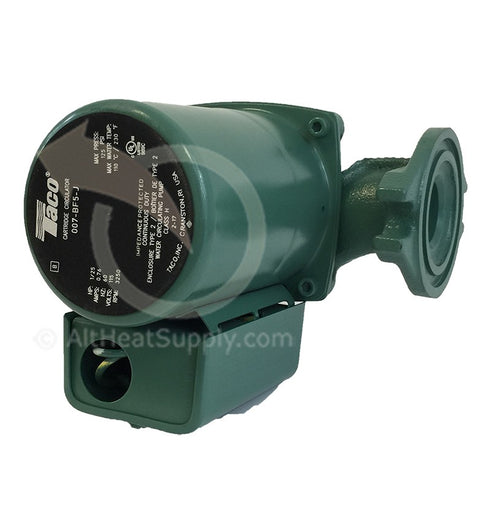

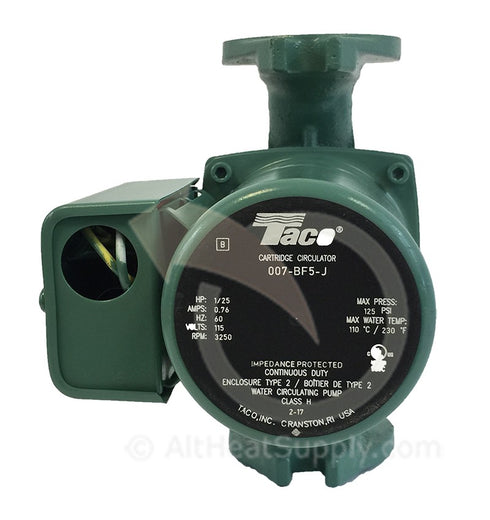

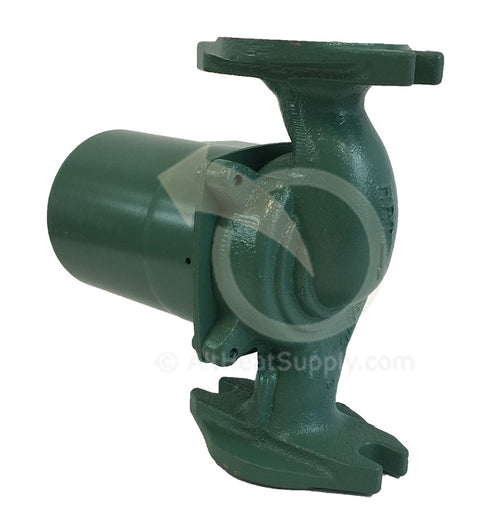

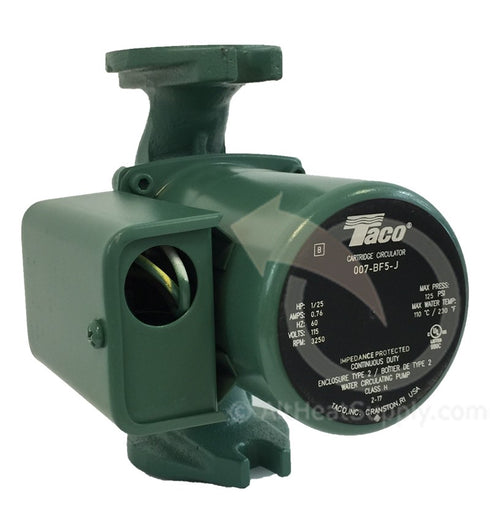

Taco 007 BF5-J Circulating Pump

$179.99$149.38

You Save: $30.61 (18%)

Quick Shipment

SKU: TP007

MANUFACTURER: Taco

  • Unique Replaceable Cartridge Design - Field Serviceable (SKU: RC007)
  • Direct Drive-Low Power Consumption
  • Standard High Capacity Output-Compact Design
  • No Mechanical Seal; Not for potable water applications
  • Unmatched Reliability -Maintenance Free
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

The Taco 007 Cartridge Circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance-free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.

The Taco 007 BF5-J, the residential circulator is designed for use in hot water heating systems and is used in circulating zones in-floor heat and baseboard. The unique replacement cartridges (SKU: RC007) deliver direct drive are serviced without replacing are self-lubricating and require no maintenance. Maximum load: 150' of a run at 8' of lift w/ 1" I.D. water line. Circulating pump (115 volts).

These “J” pumps were designed for open & closed systems due to the amount of oxygen in the systems. The Bronze cartridge prevents the pump from deteriorating due to oxygen in the water system. This ensures a long pump life! All these pumps are cast iron with a bronze cartridge. Not for potable water use. These pumps can replace standard “00” pumps.

Max Flow: 20 GPM, Max Head: 11 Feet, Minimum Fluid Temperature: 40 degrees F (4 degrees C),Maximum Fluid Temperature: 230 degrees F (110 degrees C),Maximum Working Pressure: 125 PSI, Volts: 115; Power frequency HZ- 60, Amperage: .76; RPM: 3250; HP: 1/25; Connection Sizes: 3/4", 1”, 1-1/4" Flanged; Model Nomenclature : BF – Bronze, Flanged Variations: J – Bronze Cartridge with Cast Iron Casing.

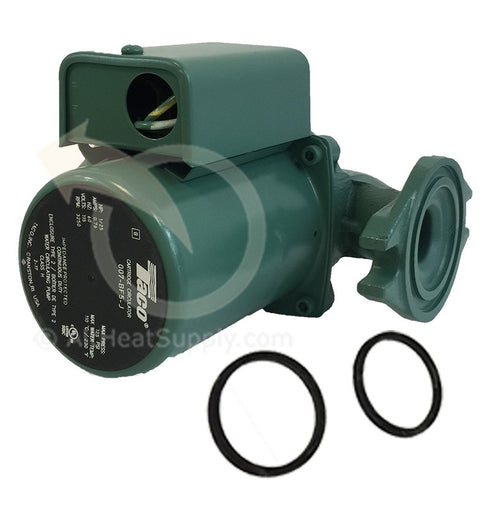

***Rubber gaskets included with pump***

Application:

The Taco 007 is a cartridge style, maintenance-free, wet-rotor, in-line, single stage circulator. It is designed for quiet operation in Hydronic Heating, Radiant Heating, Hydro-Air Fan Coils, Indirect Water Heating, Chilled Water cooling, and Domestic Water Systems. Available in Cast Iron or Bronze construction with universal flange to flange dimensions. The unique replaceable cartridge (RC007) contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Ideal for a wide range of applications.

Features

  • Standard High Capacity Output Compact Design
  • Quiet, Efficient Operation
  • Unique Replaceable Cartridge Design-Field Serviceable (SKU: RC007)
  • Direct Drive-Low Power Consumption
  • Self-Lubricating
  • No Mechanical Seal
  • Unmatched Reliability --Maintenance Free
  • Universal Flange-to-Flange Dimensions

Electrical Data:

Volts: 115

Hz: 60

Amps: .70

RPM: 3250

HP: 1/28

Submittal Data Information

Submittal Data Information

Performance Curve

Performance Curve

More Information
Specifications:

Selecting the Correct Circulator: Download PDF >>

Installation Instructions: Download PDF >>

Data Sheet: Download PDF >>

Typical Applications

  • Hydronic Heating
  • Radiant Heating
  • Hydro-Air Fan Coils
  • Indirect Water Heating
  • Chilled Water Cooling
  • Domestic Water Systems


Performance Data

  • Flow Range: 0-20 GPM
  • Head Range: 0-11 Feet
  • Minimum Fluid Temperature: 40 degrees F (4 degrees C)
  • Maximum Fluid Temperature, Cast Iron: 240 degrees F (115 degrees C)
  • Maximum Fluid Temperature, Bronze: 230 degrees F (110 degrees C)
  • Maximum Working Pressure: 125 PSI


Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Size: 25
Brand: Taco
Made In USA: Yes

Customer Reviews

Based on 54 reviews
98%
(53)
2%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Melissa Wynn

Exactly what I ordered.

A
Andy Jones
Taco

Good pump for the money

K
Kerry
Replaced a failed boiler pump.

After reading previous reviews that customers have gotten 15-20 years service from this pump. I was convinced to give this pump a try.

Tired of replacing my old pumps once a year!

C
Chuck
Great price and product

Pretty easy install (I did have some spacer type gaskets for my previous pump so I had to add some new ones so it all fit properly). Pump was so quite I wasn't sure if it was running but now I am able to detect the sound clearly. This was the best price I have found on the internet after significant searching. I though they would get it out in the mail the following day but it actually took them one day more to get it out. So I ended up getting it on a Monday instead of Friday.

S
Southern, IN DIY wood burner.
review for Taco 007 BF5-J Circulating Pump ( Cast Iron with Bronze Cartridge)

Best price and excellent phone service for information. Thanks
