Product Description
Armstrong Circulator Isolation Flanges (CIF) are used in pairs to connect circulating pumps in hydronic systems. These devices rapidly isolate a circulator to be serviced, and eliminate the need to drain and refill the entire system. The CIF integrates a 2-bolt flange connection (common to small circulating pumps) with a full-port ball valve. This practical "all-in-one" design reduces the number of plumbing connections and results in a more reliable, economical and easily serviced hydronic system.
Typical Applications
Circulator pump isolation
Features
- Size: 1 1/4''Handle: Nut Steel
- Stem gland screw: Brass ASTM B-16
- Packing: Teflon® (PTFE)
- Stem: Brass ASTM B-16
- Body: Forged/cast Brass
- Ball: Brass/Forged Brass (chrome-plated)
- Seats: Teflon®
Compact Durable Design
- Enables pump isolation for easy servicing
- Fits most flanged circulators
Corrosion-resistant brass body and flange
- Dual Buna N O-ring seals prevent stem leaks
1/4 turn open/close lever-style handle
- Available in 1/2", 3/4", 1", 11/4" and 11/2" sizes
NPT
Easy to Install
- Slotted flange bolt holes ensures minimum system resistance contribution
- Provides “bubble-tight” shut-off when closed

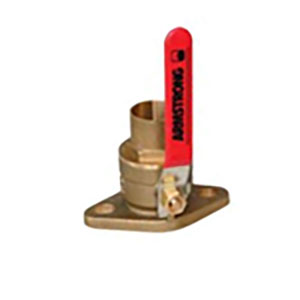

1 1/4" Isolation Ball Valve Flange, 110124-002
Armstrong Isolation Ball Valve
The Circulator Isolation Flange (CIF) is flanged to work with most circulating pumps. Armstrong uses a full port design ball valve. The practical, all-in-one design of the CIF conveniently isolates the circulator and eliminates the need to drain the system when pump repair or replacement is required.
These isolation flanges can also be used for potable water application because they are made of brass. They are usually cheaper than the plain bronze flanges.
Size: 23 Brand: Armstrong
