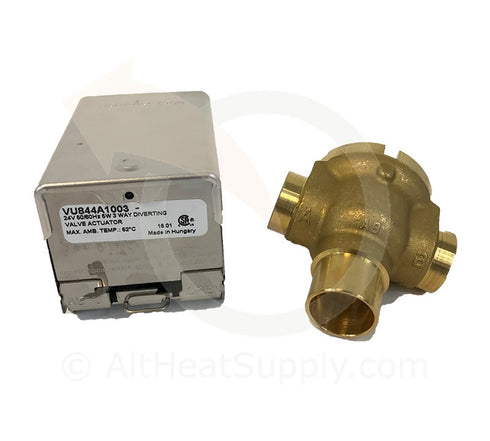

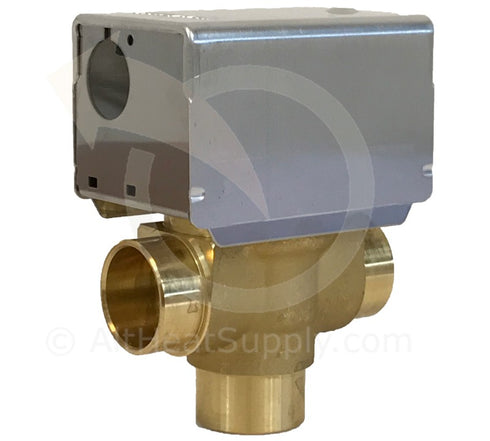

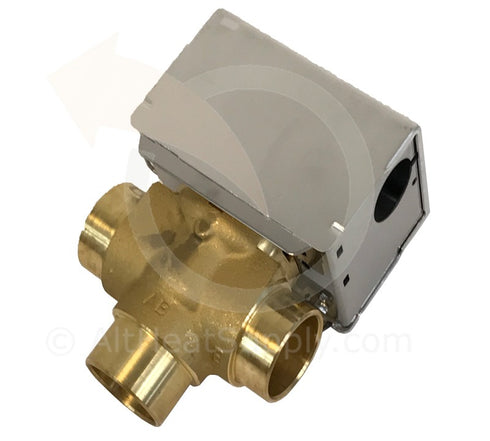

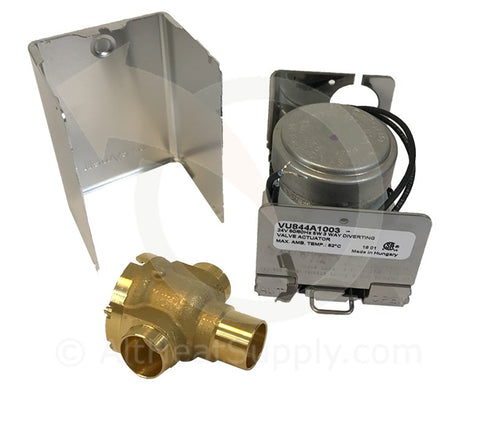

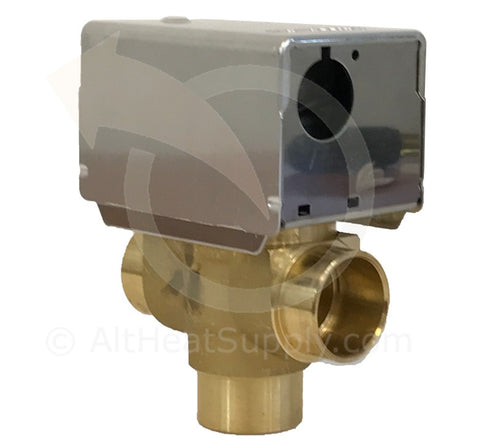

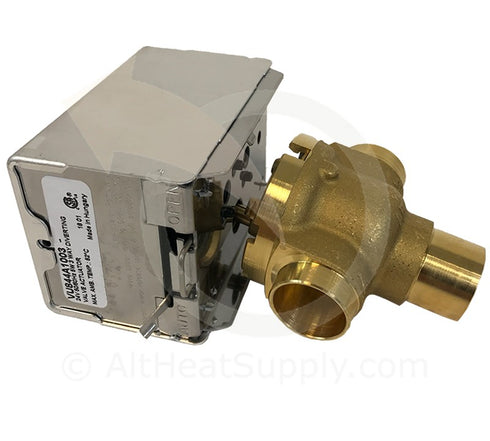

1" 3-Way Zone Valve - Honeywell Hi-Pressure Fan Coil

$189.99$179.98

You Save: $10.01 (6%)

Quick Shipment

SKU: ZV013.

MANUFACTURER: Honeywell

  • Used in conjunction with VU52, VU53 and VU54 valves for controlling the flow of hot or chilled water.
  • Fits under the cover of most baseboard convectors.
  • One-button, quick release.
  • Spring return operation.
  • Stainless steel case and aluminum cover.
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

The VU844A1003/U Actuator Fan Coil Valve Actuators is used in conjunction with the VU54S2024/U (Hi Presasure Valve 1" inch Sweat 3W), for controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors.

Typical Applications

Controlling the flow of hot or chilled water in commercial HVAC such as fan coil units, terminal reheat coils and convectors

Performance Data

  • Frequency: 50 Hz; 60 Hz
  • Supply: Voltage 24V
  • Power Consumption Driving: 6 Watts
  • Ambient Temperature Range: 34 F to 125 F ambient at 200 F Fluid
  • Fluid Temperature (F) 200 F
  • Actuator Type Valve
  • Stroke (in.): 45 deg.
  • Electrical Connections: 6 in.

Features

  • Compact construction for easy installation.
  • Fits under the cover of most baseboard convectors with actuator fitted to valve body.
  • One-button, quick release. Secure 3-point, metal latch to valve body.
  • Spring return operation.
  • Stainless steel case and aluminum cover. Rust-proof nickel-plated motors available.
  • Line or low voltage, rust-resistant motors.
  • Manual opener for installation and valve operation on power failure.
  • Valve returns to automatic position when power is restored.
  • Actuator may be reinstalled or serviced without draining the system or disassembling the valve.
  • Slotted conduit hole for faster wiring
More Information
Specifications:

Overview

The VU844 humidity resistant, Fan Coil Valve Actuators are used in conjunction with VU52, VU53 and VU54 valves for controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors.

Features

  • Compact construction for easy installation.
  • Fits under the cover of most baseboard convectors with actuator fitted to valve body.
  • One-button, quick release. Secure 3-point, metal latch to valve body.
  • Spring return operation.
  • Stainless steel case and aluminum cover. Rust-proof nickel-plated motors available.
  • Line or low voltage, rust-resistant motors.
  • Manual opener for installation and valve operation on power failure.
  • Valve returns to automatic position when power is restored.
  • Actuator may be reinstalled or serviced without draining the system or disassembling the valve.
  • Slotted conduit hole for faster wiring.

Product Specifications

Application HVAC
Dimensions (in.) 2 3/8 in. high, 3 1/2 in. wide, 2 3/8 in. wide
Dimensions (mm) 62 mm high, 88 mm wide, 60 mm deep
Used With 2-way NO (VU52) or 3-way VU valve body (VU54)
Materials Stainless Case, Aluminum Cover
Comments For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
Frequency 50 Hz; 60 Hz
Approvals, Canadian Standards Association Certified C/US File No. LR1322
Electrical Connections Leads
Supply Voltage 24V
Power Consumption Driving-- 6 Watts
Ambient Temperature Range (F) 34 F to 125 F ambient at 200 F Fluid
Ambient Temperature Range (C) 1 C to 52 C ambient at 93 C Fluid
Internal Auxiliary Switch 0
Fluid Temperature (C) 94 C
Fluid Temperature (F) 200 F
Actuator Type Valve
Control Signal Two position; SPST
Fail Safe Mode Spring Return
Stroke (in.) 45 deg.
Timing, Nominal Driving @ 60 Hz (sec)-- 15 sec maximum
Spring Return Timing Nominal-- 6 sec
Maximum Differential Pressure Ratings (Close-off) (psi) Depends on Cv rating of valve
Maximum Differential Pressure Ratings (Close-off) (kPa) Depends on Cv rating of valve
Manual operation Lever
Electrical Connections (in.) 6 in.
Electrical Connections (mm) 0.15 m
Flow Rate 7 Cv
Size: 22
Brand: Honeywell
