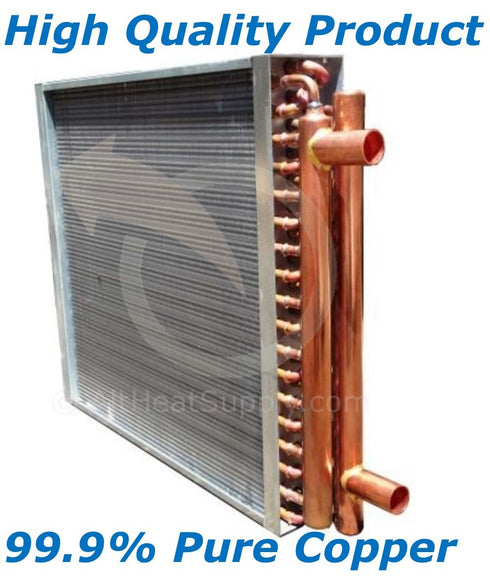

22" X 25" Water to Air Heat Exchanger, 220,000 BTU (Dragon Quality)

$340.99$292.99

You Save: $48.00 (15%)

Quick Shipment

SKU: HTL22X25

MANUFACTURER: AH&S

  • Designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with a high density of aluminum fins.
  • This design enables heating loads of 50,000-60,000 Btu per square foot.
  • Applications: Residential Heating; Apartment Buildings and Condominiums; Hybrid Systems; Air Conditioning; Dehumidification
  • 99.9% Pure L Grade Copper
  • Dragon Quality Products
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

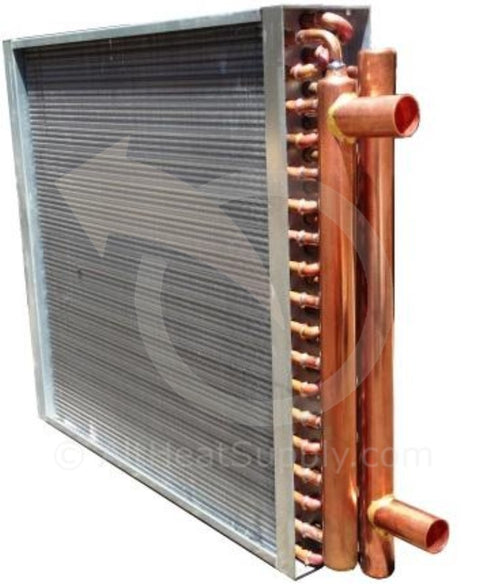

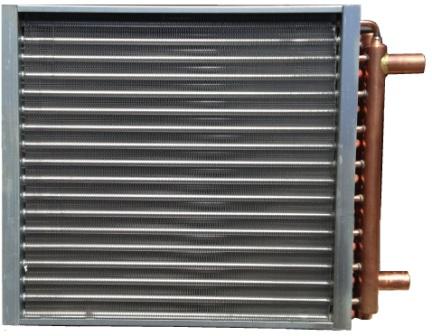

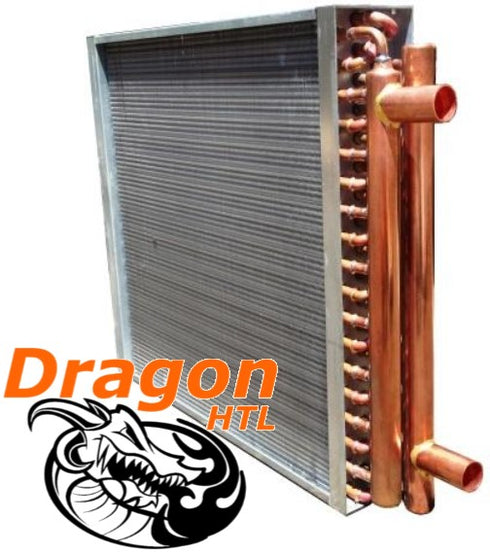

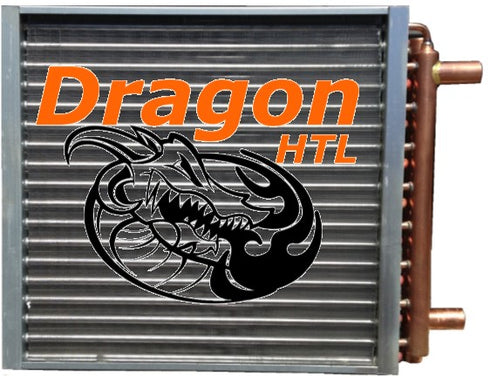

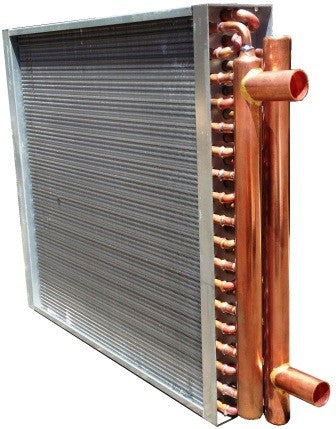

Our NEW Dragon HTL Water to Air Heat Exchangers are of the Highest Quality products on the market and great fit for a variety of heating and cooling applications. These compact units are designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with a high density of aluminum fins. These fins are spaced such that the fin density is 12 fins per inch. This design enables heating loads of 50,000-60,000 Btu per square foot. Despite such high fin density, there is minimal flow resistance through these water to air heat exchanger coils.

Typical Applications

  • Residential Heating
  • Apartment Buildings and Condominiums
  • Hybrid Systems
  • Air Conditioning
  • Dehumidification


Features and Specs

  • Tube Coil is manufactured entirely of 3/8" seamless copper
  • Plate Fin is made from Aluminum
  • The core housing is made from galvanized steel
  • The header is made from Copper and has a 1" ID
  • The Tubeside is rated at 175 psig/350F
  • BTU: 220,000
  • 99.9% Pure L Grade Copper
  • Plate Fin Spacing is 12 per inch
  • All connections are 1 inch ID Solder
  • Ports long enough to work with SharkBite Fittings
  • Units kept in stock for immediate delivery
More Information

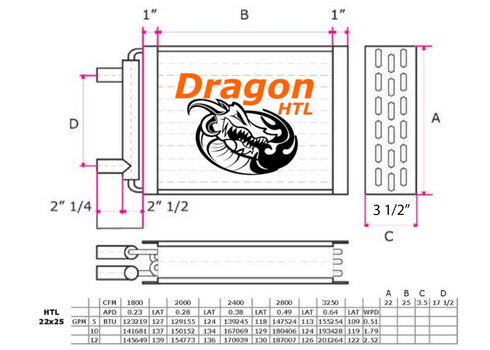

Specifications:

Features of the Water to Air Heat Exchanger:

Materials

Tube Coil

36" Seamless Copper

-

Plate Fin

Aluminum

-

Core Housing

Galvanized Steel

-

Header

Copper

Rating:

Tubeside

175 psig/350F

Plate Fin Spacing

12/inch

-

All Connections

1" ID Solder

-

Size: 22" x 25
Brand: Dragon HTL
