Product Description

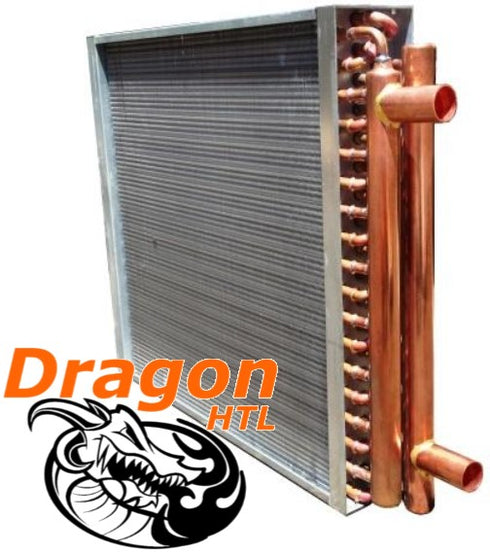

Our NEW Dragon HTL Water to Air Heat Exchangers are of the Highest Quality products on the market and great fit for a variety of heating and cooling applications. These compact units are designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with a high density of aluminum fins. These fins are spaced such that the fin density is 12 fins per inch. This design enables heating loads of 50,000-60,000 Btu per square foot. Despite such high fin density, there is minimal flow resistance through these water to air heat exchanger coils.
Typical Applications
- Residential Heating
- Apartment Buildings and Condominiums
- Hybrid Systems
- Air Conditioning
- Dehumidification
Features and Specs
- Tube Coil is manufactured entirely of 3/8" seamless copper
- Plate Fin is made from Aluminum
- The core housing is made from galvanized steel
- The header is made from Copper and has a 1" ID
- The Tubeside is rated at 175 psig/350F
- BTU: 240,000
- 99.9% Pure L Grade Copper
- Plate Fin Spacing is 12 per inch
- All connections are 1 inch ID Solder

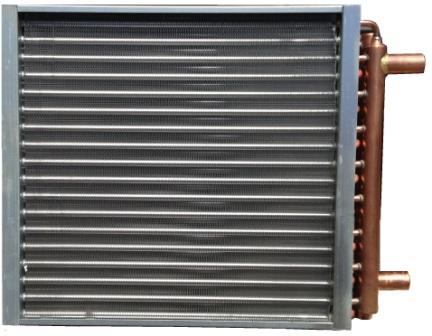

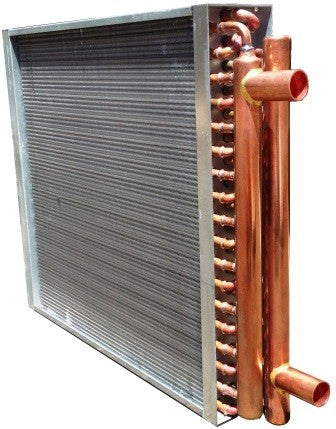

- Size: 24'' x 24''
- Ports long enough to work with SharkBite Fittings
- Units kept in stock for immediate delivery
Features of the Water to Air Heat Exchanger:
|
Materials |
Tube Coil |
36" Seamless Copper |
|
- |
Plate Fin |
Aluminum |
|
- |
Core Housing |
Galvanized Steel |
|
- |
Header |
Copper |
|
Rating: |
Tubeside |
175 psig/350F |
|
Plate Fin Spacing |
12/inch |
- |
|
All Connections |
1" ID Solder |
- |
