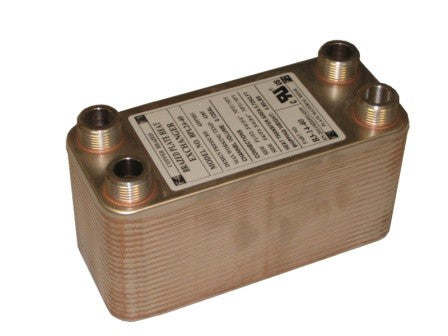

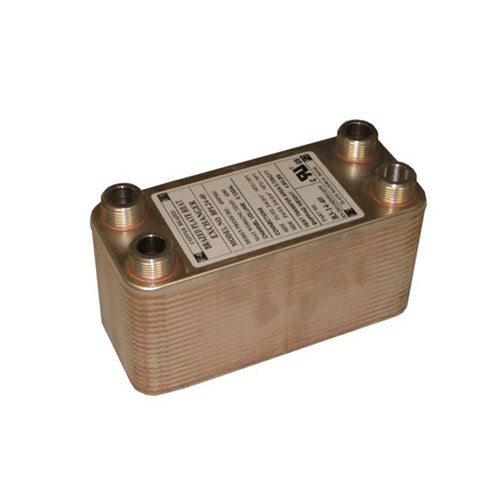

30 Brazed Plate Heat Exchanger 20,000 BTU Small Heating Applications

Product Description

These Units are 40% Heavier and better made then the competition. These heat exchanger's compact, rugged assembly is composed of stainless steel 316L plate packs sealed & pressed together by means of brazing metal along the border of the units. This eliminates the need for traditional gaskets or external pressure retaining parts. The plate packs are embossed with special corrugation patterns to promote high turbulence flow, which dramatically increases the heat transfer rates of the units thus making them a highly economical and effective solution for many process and heating applications.

Typical Applications

• Central Heating
• Hydronic Heating
• Solar and Geothermic Heating
• Industrial Process Heat Recovery
• Condensers and Evaporators in Refrigeration Systems
• Oil Coolers
• Close Approach Fluid-to-Fluid Heat Transfer

Performance Data

• BTU Rating: 20,000 (Commonly used for small heating applications, Beer Chillers, Bio-Diesel Warmer). Btu Rating is based on 5 GPM; 180F water
• Connection Size: 3/4" MPT
• Dimensions: 3'' x 8''
• Max Temp. 428F
• Heating Transfer Area: 4.22 SQ.FT
• Channel Volume: 0.09 Gal

Features

• High heat transfer coefficient
• Small unit size with high heat transfer capacity
• Cost efficiency
• Stainless steel connections
• Easy installation
