12x12 Water to Air Heat Exchanger 60,000 BTU Dragon Quality Heating Solutions

$149.99$119.99

You Save: $30.00 (21%)

Quick Shipment

SKU: HTL12X12

MANUFACTURER: AH&S

  • Applications: Residential Heating; Apartment Buildings and Condominiums; Hybrid Systems; Air Conditioning; Dehumidification.
  • Designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with a high density of aluminum fins.
  • heating loads of 50,000-60,000 Btu per square foot.
  • 99.9% Pure L Grade Copper
  • Dragon Quality Products
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

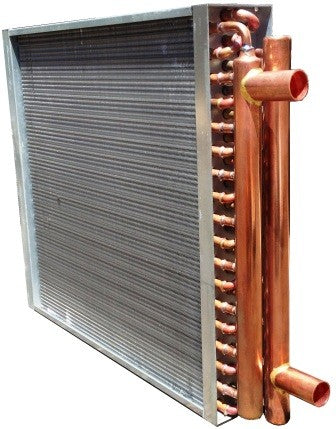

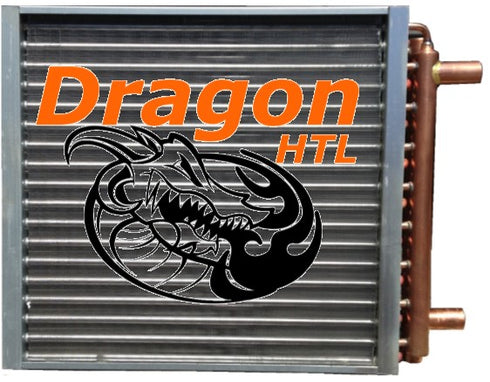

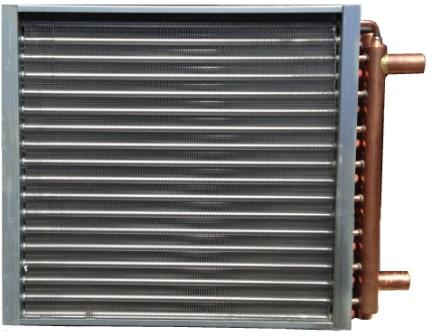

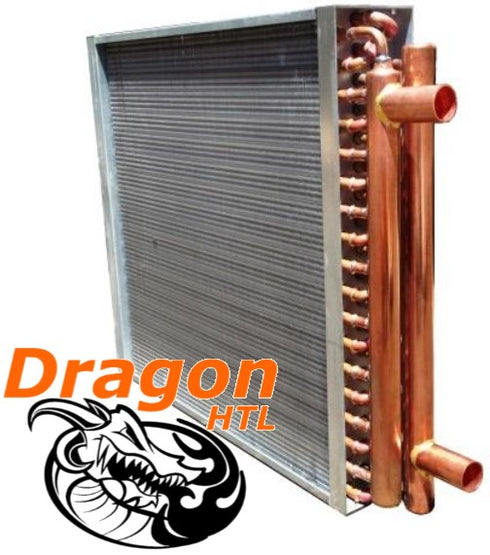

Our NEW Dragon HTL Water to Air Heat Exchangers are of the Highest Quality products on the market and a great fit for a variety of heating and cooling applications. These compact units are designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with a high density of aluminum fins. These fins are spaced such that the fin density is 12 fins per inch. This design enables heating loads of 50,000-60,000 Btu per square foot. Despite such high fin density, there is minimal flow resistance through these water to air heat exchanger coils.

Typical Applications

  • Residential Heating
  • Apartment Buildings and Condominiums
  • Hybrid Systems
  • Air Conditioning
  • Dehumidification


Features and Specs

  • Tube Coil is manufactured entirely of 3/8" seamless copper
  • Plate Fin is made from Aluminum
  • The core housing is made from galvanized steel
  • The header is made from Copper and has a 1" ID
  • The Tubeside is rated at 175 psig/350F
  • BTU: 60,000
  • 99.9% Pure L Grade Copper
  • Plate Fin Spacing is 12 per inch
  • All connections are 1 inch ID Solder
  • Ports long enough to work with SharkBite Fittings
  • Units kept in stock for immediate delivery
More Information

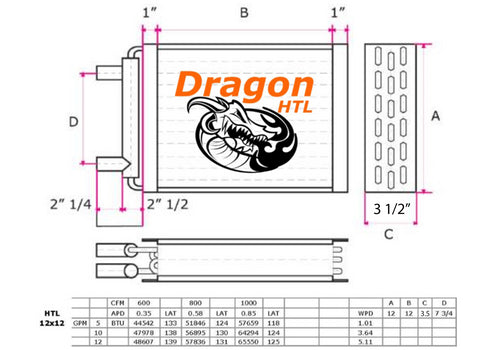

Specifications:

Features of the Water to Air Heat Exchanger:

Materials

Tube Coil

36" Seamless Copper

-

Plate Fin

Aluminum

-

Core Housing

Galvanized Steel

-

Header

Copper

Rating:

Tubeside

175 psig/350F

Plate Fin Spacing

12/inch

-

All Connections

1" ID Solder

-

Size: 12" x 12
