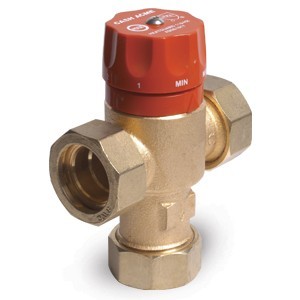

Cash Acme Heat Guard Tempering Valve, 3/4" Sweat, 110-HX 24176-0000

$169.99$117.99

You Save: $52.00 (31%)

Quick Shipment

SKU: MVH34S

MANUFACTURER: Cash Acme

  • Cash Acme Quality
  • Mixing Value
  • 3/4" sweat
  • Not recommanded for domestic water use due to higher temperature range.
  • Hydronic and radiant heating systems.
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

The Cash Acme Heat Guard 110-HX Temperature Actuated Valve mixes hot and cold water to deliver reduced temperature hot water. The valve offers a high flow rate which reduces system pressure losses, and robust, low complexity construction. An adjustable and lockable handle prevents tampering. The extended outlet temperature range- up to 176°F (80°C), makes the 110-HX ideal for heating system applications. DO NOT use on domestic hot water applications. This is not an anti-scald device.

Typical Applications

Domestic and Commercial hot water distribution. To control water temperature at the source of heat (hot water tank), point-of-use (sinks, lavatories, or bath tubs) or multiple fixtures. As well as Radiant heating systems.

Features

  • Size: 3/4''
  • High flow rate design for lower pressure losses within the system
  • Every valve is tested prior to shipping
  • Integral union connections on all 3 ports
  • Unique, purpose designed adjuster tool
  • Adjustable outlet temperature range: 85-176°F (29-80°C)
  • Listed by IAPMO and ASSE
More Information
Specifications:

Performance:



Outlet temperature range . . . . . .95 - 176°F (35 - 80°C)



Temp. hot supply . . . . . . . . . . . .195°F (90°C) max.



Temp. cold supply . . . . . . . . . . . .39 - 80°F (4 - 27°C)



Temp. stability . . . . . . . . . . . . . . .+/- 5° F (3°C)



Working pressure . . . . . . . . . . . .Max. 145 psi (1,000 kPa)



Flow rate, maximum . . . . . . . . . .20 gpm



Flow rate, minimum . . . . . . . . . .1 gpm





Cash Acme Spec Sheet:

Installation Instructions PDF >>

Heatguard® 110-HX Series–Lead Free >>

Thermostatic Mixing Valves >>

Size: 22
Brand: SharkBite
Made In USA: Yes
