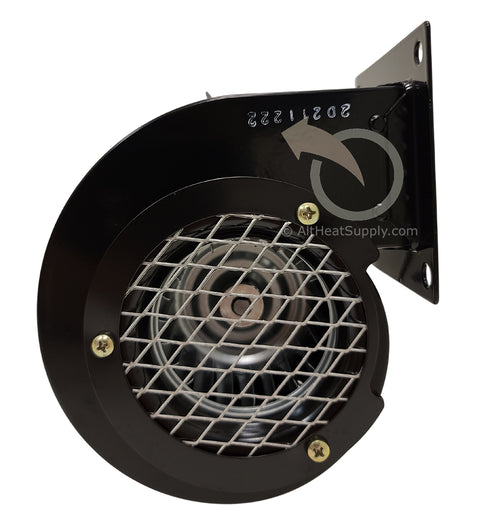

Product Description

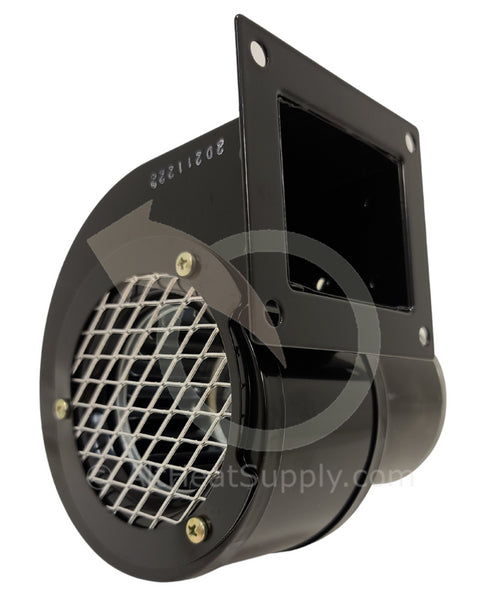

This OEM blower features a rectangular outlet shape and is designed with a flange. It features a shaded-pole motor and a totally enclosed motor enclosure. It offers all-position mounting. Steel housing material with painted housing finish.
Typical Applications
This Fan is used on the WoodMaster 3300, 5500(back), AFS900, Heatmor 100, Johnson John Jr models, Coyote, Heatmor 100, Johnson John Jr models. Also used for many other applications. Equivalent to fans : Dayton 1TDP1, Fasco B75, Fasco B75F, 4C004, 70213484
Performance Data
- CFM @ 0.000-In SP: 76
- 115 Volts, 50-60 Hz, 1 Phase
- Max Ambient Temp: 104 Deg F
- Full Load Amps: 0.53
- Motor RPM: 2880

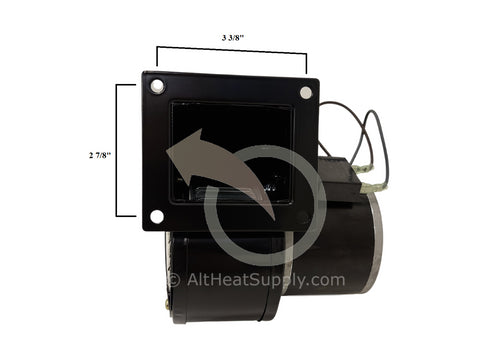

- Dimensions: Wheel diameter 3'', wheel width 1 7/8'', inlet diameter 2 5/8''
Features
- Automatic Thermal Protection
- Shaded Pole
- Noise and vibration are held to a minimum to maintain CFM at higher static pressures.
- All-position mounting
- Min./max. operating temp. range: -20 Degree to 104 Degree F
- Not Intended for use as inline blowers for wood burners

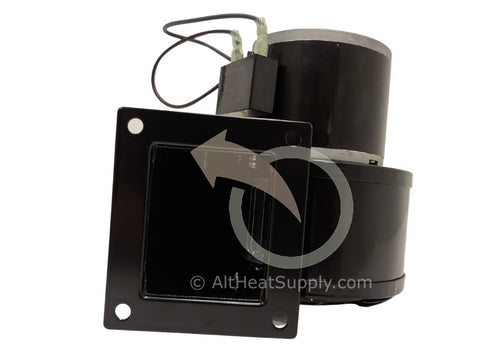

- Blower Outlet Shape: Rectangular
More Information

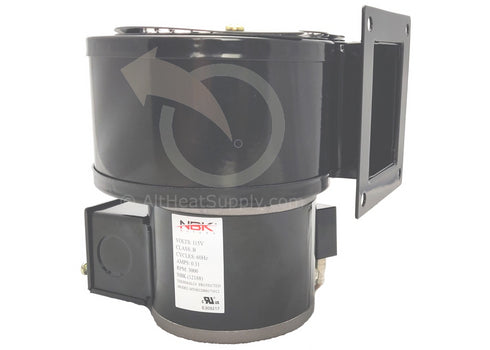

Specifications:
Size: 20
Brand: NBK
| Item | Shaded Pole Blower | |
| Type | Forward Curve, Direct Drive | |
| Wheel Dia. (In.) | 3 | |
| Wheel Width (In.) | 1-7/8 | |
| CFM @ 0.000-In. SP | 76 | |
| CFM @ 0.100-In. SP | 70 | |
| CFM @ 0.200-In. SP | 63 | |
| CFM @ 0.300-In. SP | 56 | |
| CFM @ 0.400-In. SP | 45 | |
| CFM @ 0.500-In. SP | 8 | |
| Voltage | 115 | |
| Hz | 60/50 | |
| Phase | Single | |
| Full Load Amps | 0.31 | |
| RPM | 3000 | |
| Bearing Type | Sleeve | |
| Motor Type | Shaded Pole | |
| Motor Enclosure | Open Dripproof | |
| Thermal Protection | Auto | |
| Lead Length (In.) | 6 | |
| Conduit Box | Yes | |
| Ambient Temp. (Deg. F) | 104 | |
| Max. Inlet Temp. (Deg. F) | 104 | |
| Inlet Dia. (In.) | 2-5/8 | |
| Outlet Height (In.) | 2-1/8 | |
| Outlet Width (In.) | 2-21/32 | |
| Overall Height (In.) | 5-3/4 | |
| Overall Width (In.) | 5-1/2 | |
| Overall Depth (In.) | 5-5/16 | |
| Mounting | All Position | |
| Housing Finish | Black Baked Enamel | |
| Housing Material | Steel | |
| Agency Compliance | UL Component Recognized, CSA Certified |
