PRODUCT DESCRIPTION

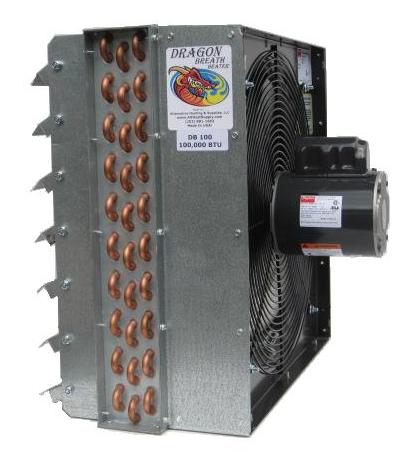

Dragon Breath Unit Heaters mount just about anywhere. They are used to heat basements, garages, workshops, greenhouses, warehouses, and anything you can think of due to their small and compact design. These units come with a high-quality “Venturi-designed” fan, water to air exchanger and adjustable louvered grills. The fans are speed controllable (SC36) and are commercial grade units. Stamped fan blades quietly exhaust high air volumes. You can trust that all parts used are of the highest quality. Units come assembled!
These unit heaters are 110 volts, sending boiler water in and out of them because they’re water based. The fan is mounted in the back, which blows heat to the area of your choosing. The motor of the unit heater is a totally enclosed air over motor enclosure, producing 2294 CFM. Also, it has a sleeve bearing system and a 1100 RPM motor.
In order to find out which unit heater suits your needs, use the basic formula of 4,000 BTU's per 100 sq. ft. Consider more or less BTUs based on geography and buildings insulation. Unique situations such as a home having "0" insulation, some adjustments may need to be taken. For "0" insulation and greenhouses, use the 6,000 BTU's per 100 sq ft formula. Oversizing usually is not a problem.
*Venturi-designed fans are ideal for high pressure or high airflow usage scenarios featuring detailed engineered elements that contribute to a low-noise yet a maximum performing solid fan. You can trust that all parts used are of the highest quality.
TYPICAL APPLICATIONS

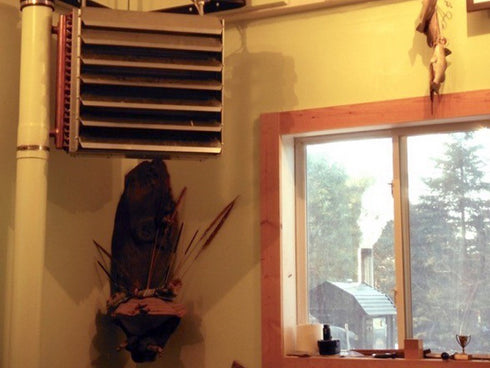

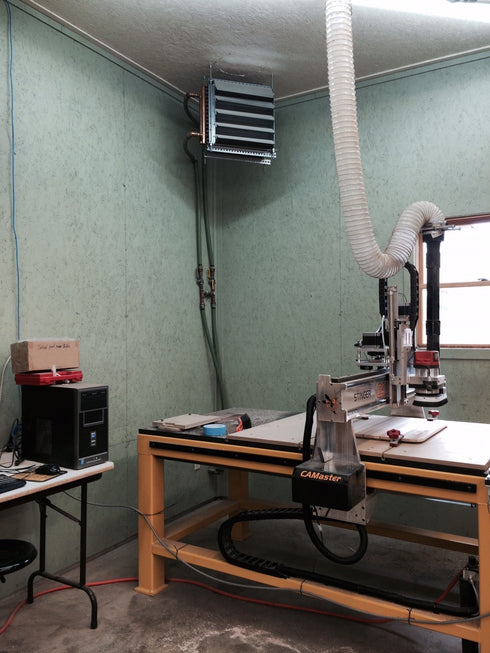

Used to heat basements, garages, workshops, greenhouses, warehouses and more.

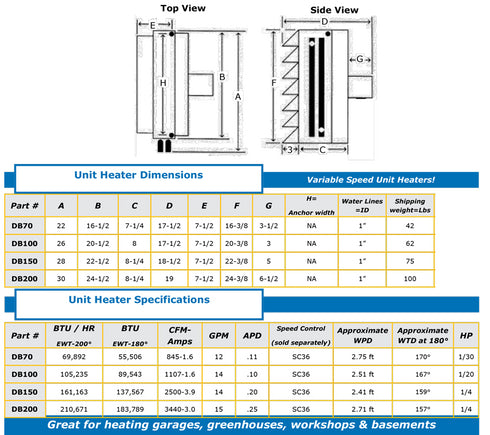

FEATURES AND SPECS
- 150,000 BTU

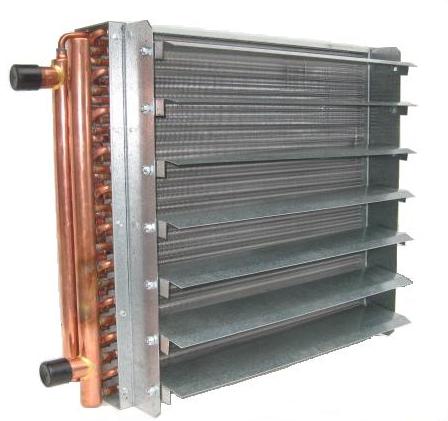

- These units come with a fan, water to air heat exchanger and louvered grills
- The fans are speed controllable (SC36) and are commercial grade units
- Stamped fan blades quietly exhaust high air volumes
- All parts used are high quality
- Made in USA
Buyers beware of some of other Unit Heaters! Putting or mounting on a Heat Exchanger to a fan or blower doesn't make a Unit heater! Using the BTU ratings of Heat Exchanger as the output of Heat is not Right! This is not anywhere close to reality. Air Volume (CFM), water flow (GPM) and Air Resistance through the Heat Exchanger are all very important to the official BTU output. We test and guarantee our products... Price isn't always the best deal...
*** Due to being oversized, FREE SHIPPING DOES NOT APPLY TO THIS ITEM***
