Product Information

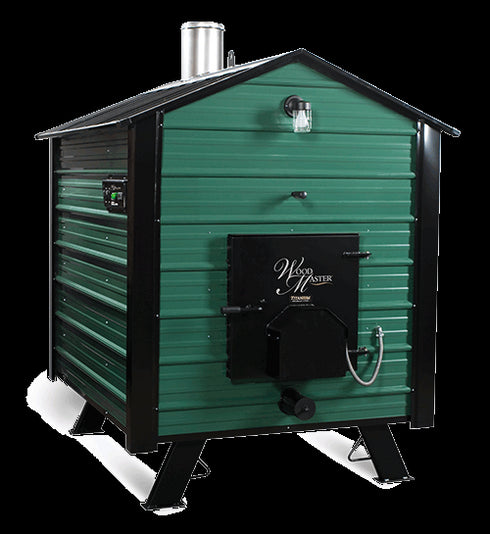

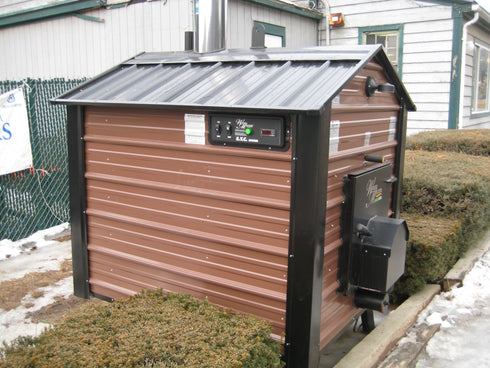

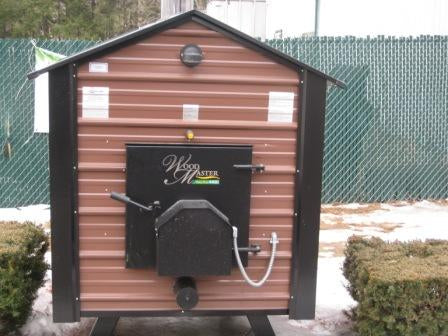

The WoodMaster 5500 is a powerful, large-capacity outdoor wood furnace designed for high-output performance in larger applications, like agricultural buildings, multi-bay garages, commercial workshops, or multi-structure setups. With a titanium-enhanced stainless steel firebox, 27" fire door, and nearly 200 gallons of water capacity, this furnace brings commercial-grade heating power to your property with minimal maintenance and long burn times.
Product Features & Benefits
Reliable Heat for Massive Spaces
- Comfortably heats up to 10,000 sq ft
- Supports multi-building connections and hydronic setups
- Compatible with forced air, radiant baseboard, and in-floor systems
Titanium-Enhanced Stainless Steel Firebox
- Corrosion-resistant and built for long life
- Withstands harsh burning conditions (high-moisture wood, creosote, condensation)
WoodMaster Round-Chamber Design
- Promotes better air and water flow for more efficient burns
- 40% fewer welds and seams than square fireboxes (less risk of cracks, leaks, and corrosion)
High-Capacity Performance

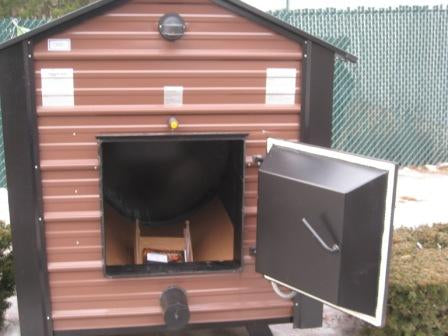

- 27" x 27" door allows easier wood loading and longer logs
- 194-gallon water jacket for maximum thermal transfer and extended burn cycles
- Fan-induced draft for faster heat recovery and responsiveness

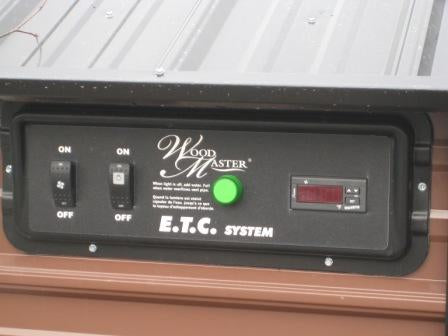

Digital ETC Controller
- Manages blower, temperature, reset, water level, and includes a nightlight for convenience
More Information
Specifications:
Size: 17
Brand: WoodMaster
Technical Specifications
- Heating Area: Up to 10,000 sq ft
- Firebox Size: 50" x 56" (Titanium-Enhanced Stainless Steel)
- Door Opening: 27" x 27"
- Water Capacity: 194 gallons
- Draft Control: Fan-Induced
- Overall Dimensions: 6' W × 6'10" L × 8'6" H
- Shipping Weight: 2,014 lbs
- Warranty: 25-Year Limited Warranty
- Available Colors: Black, Charcoal, Brown, Green
Installation & Foundation
- Requires a non-combustible base: concrete, crushed rock, or patio blocks

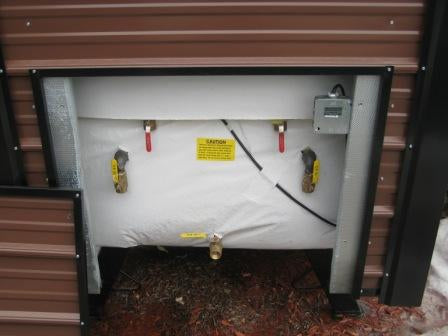

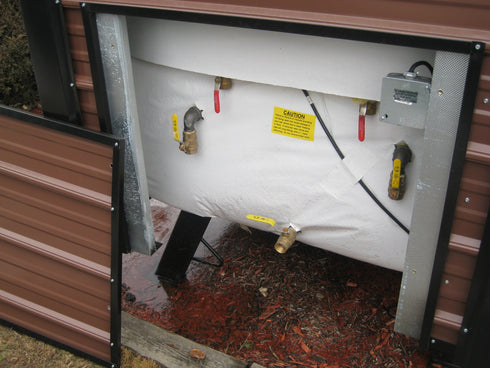

- Must protect supply/return lines from UV, fire, or physical damage
- Footprint Dimensions:
- Slab Width: 66"
- Slab Depth: 76"
- Detailed rear and side clearance specifications shown in the base diagram
- For best performance and safety, always install according to WoodMaster's guidelines.
Heating Applications
Perfect for:
- Large shops, garages, and warehouses
- Agricultural structures (barns, greenhouses, storage units)
- Multi-unit residential or commercial properties
- Domestic hot water, in-floor radiant, and pool heating setups
Warranty & Support
Your WoodMaster 5500 purchase includes:
- 25-Year Limited Warranty (registration required at purchase)
- Proudly made in the USA
- Phone support from Alternative Heating & Supply, your authorized WoodMaster dealer
Made In USA: Yes
