Product Description

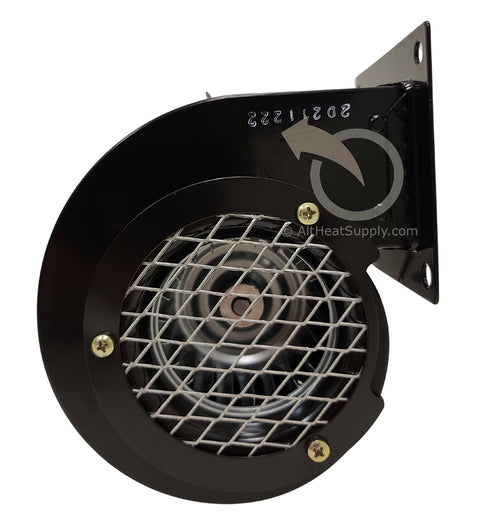

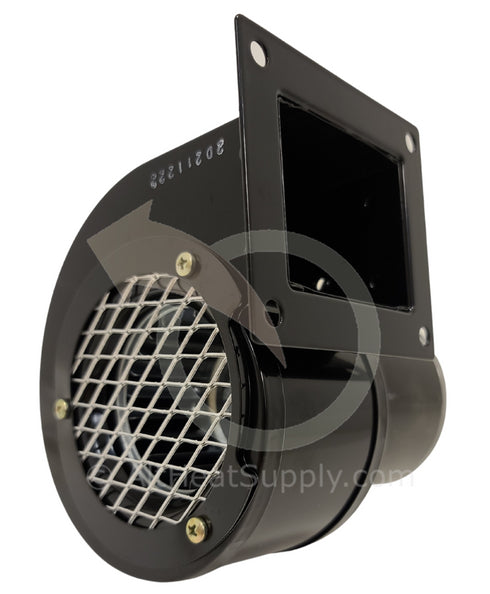

Dynamically balanced, the NBK replaces Dayton Blower 1TDP1 blower mounts in any position and operates with minimal noise and vibration, to maintain CFM at higher static pressures. Motors have cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life.
Typical Applications
This Fan is used on the WoodMaster 3300, 5500 (back), AFS900, Heatmor 100, Johnson John Jr models, Coyote. Also used for many other applications. Equivalent to fans : Dayton 1TDP1, Fasco B75, Fasco B75F, 4C004, 70213484
Performance Data
- CFM @ 0.000-In SP: 89
- 115 V, 60 Hz, Single phase
- Shaded Pole
- Max Ambient Temp: 104 Deg F
- Full Load Amps: 0.31
- Motor RPM: 3000

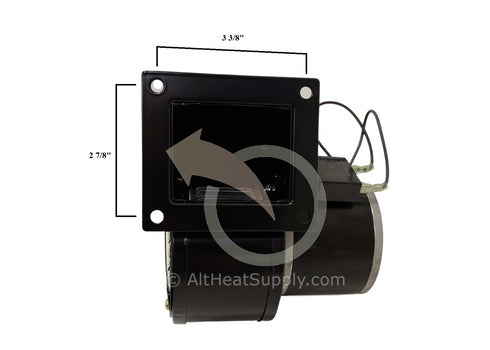

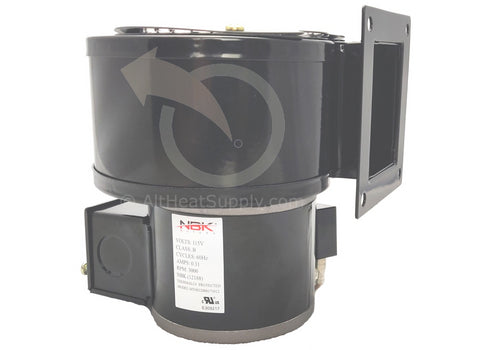

- Dimensions: Overall height 5 3/4'', overall width 5 3/8'', overall depth 5 3/8''
Features
- Noise and vibration are held to a minimum to maintain CFM at higher static pressures.
- UL and C-UL recognized (E47479), except No. 2C646 is not UL or C-UL recognized and No. 2C647 is UL recognized (E22286) and CSA certified (LR12645).
- Direct replacements for many OEM blowers with same physical footprint
- 3-Phase Blowers
- All-position mounting
- Min./max. operating temp. range: -20 Degree to 104 DegreeF
- Motor enclosure: open
- Includes discharge mounting flange
- Blower Outlet Shape: Rectangular
- Replaces the Dayton 4C004 or the Fasco 70213484 blowers
More Information
Specifications:
Size: 25
Brand: NBK
| Item | PSC Blower | |
| Type | Forward Curve, Direct Drive | |
| Wheel Dia. (In.) | 3 | |
| Wheel Width (In.) | 1-7/8 | |
| CFM @ 0.000-In. SP | 89 | |
| CFM @ 0.100-In. SP | 85 | |
| CFM @ 0.200-In. SP | 78 | |
| CFM @ 0.300-In. SP | 74 | |
| CFM @ 0.400-In. SP | 66 | |
| CFM @ 0.500-In. SP | 58 | |
| Voltage | 115 | |
| Hz | 50/60 | |
| Phase | 1 | |
| Full Load Amps | 0.31 | |
| RPM | 3000 | |
| Bearing Type | Ball | |
| Motor Type | Permanent Split Capacitor | |
| Motor Enclosure | Open | |
| Motor Insulation | Class B | |
| Thermal Protection | Auto | |
| Lead Length (In.) | 13 | |
| Conduit Box | Yes | |
| Ambient Temp. (Deg. F) | 104 | |
| Max. Inlet Temp. (Deg. F) | 104 | |
| Inlet Dia. (In.) | 2-5/8 | |
| Outlet Height (In.) | 2-3/16 | |
| Outlet Width (In.) | 2-11/16 | |
| Overall Height (In.) | 5-3/4 | |
| Overall Width (In.) | 5-3/8 | |
| Overall Depth (In.) | 5-3/8 | |
| Mounting | All Position | |
| Housing Finish | Black Enamel | |
| Housing Material | Rolled Steel | |
| Agency Compliance | UL Recognized US and Canada (E47479) | |
| Replaces | 4C004 | |
| Includes | Discharge Mounting Flange |
