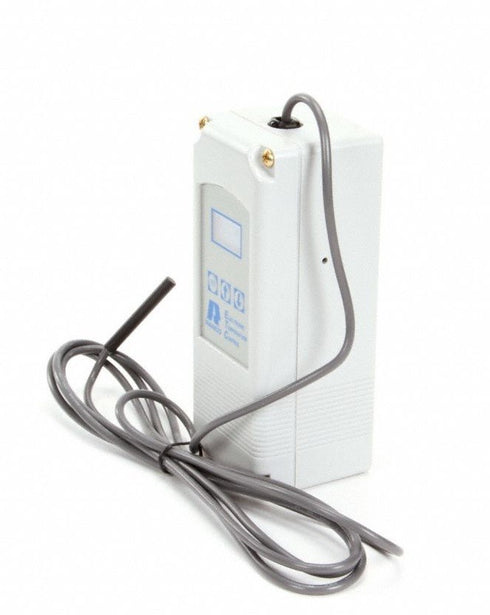

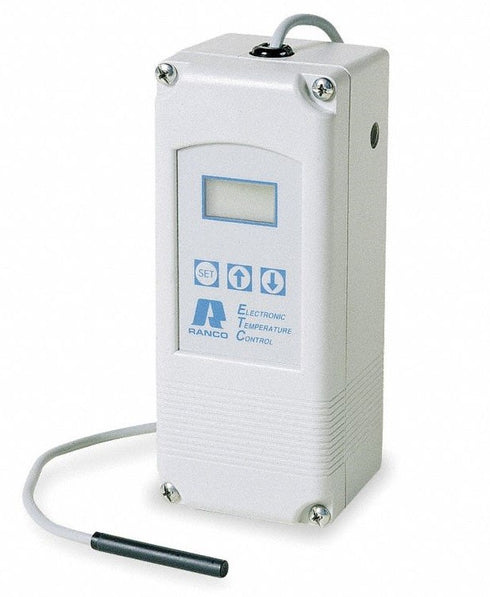

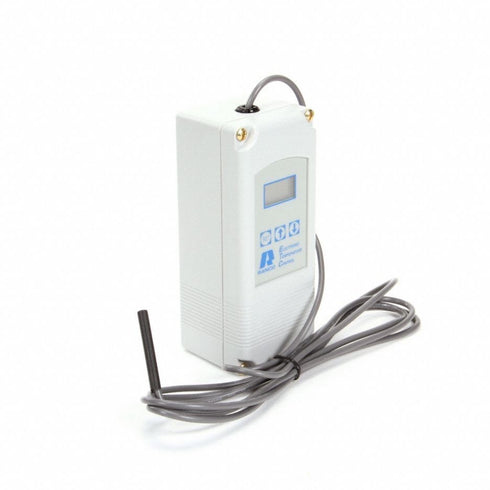

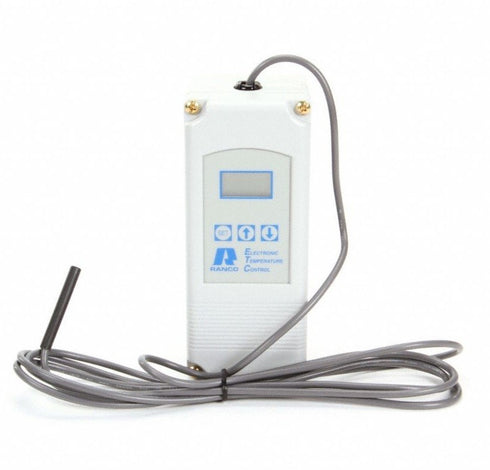

Ranco ETC-111000 Digital Temperature Controller 110v

$119.99$94.99

You Save: $25.00 (21%)

Quick Shipment

SKU: AQ007

MANUFACTURER: Ranco

  • Microprocessor based temperature controller suitable for switching 120Volts at up to 16Amps
  • For heating or cooling applications
  • The sensor with an 8' foot cable and instructions are included with the unit
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

The Ranco ETC 111-000 is a microprocessor based temperature controller suitable for switching 120Volts at up to 16Amps for heating or cooling applications making it suitable for a wide range of applications. This is a great universal controller for any application where switching 120Volts or temperatures outside that of a normal home thermostat is required. The sensor with an 8' foot cable and instructions are included with the unit.

Typical Applications

Heating or cooling applications

Performance Data

  • Temperature Setpoint Range: -30° to 220°F
  • Differential range: 1° to 30°F
  • Input Voltage: 120VAC, 208, 240VAC
  • Pilot duty: 125VA at 120/208/240VAC
  • Sensor: Thermistor, 2" long x 1/4"dia with 8' cable (included)
  • Ambient humidity: 0 to 95% RH, non-condensing
  • Enclosure: NEMA 1
  • Dimensions: 6.52" high x 2.7" wide x 2.48" deep
  • Agency Approvals: UL listed, file E94419, Guide XAPX, CSA certified, file LR68340, class 4813 02

Features

  • LCD read-out for sensor temperature, control settings, and relay status
  • EEPROM memory retains control settings during power outages
  • Keypad lockout to prevent end-user alteration of settings
  • 8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
  • Easy 4-step set-up
  • Heavy-duty relay is 1 HP rated
  • Selectable °F or °C heating/cooling modes
  • Single and two stage models
  • White backlight on display
  • Sensor rated IP67 for dust and water (<1m) resistance
More Information
Specifications:

Specifications:

    • Temperature Setpoint Range:  -30° to 220°F
    • Differential range: 1° to 30°F
    • Input Voltage: 120VAC, 208, 240VAC
    • Pilot duty: 125VA at 120/208/240VAC
    • Sensor:  Thermistor, 2" long x 1/4"dia with 8' cable (included)
    • Control Ambient Temperatures
      • Operating:  -20° to 140°
      • Storage: -40° to 176°
    • Ambient humidity:  0 to 95% RH, non-condensing
    • Enclosure:  NEMA 1
    • Dimensions: 6.52" high x 2.7" wide x 2.48" deep
    • Agency Approvals: UL listed, file E94419, Guide XAPX, CSA certified, file LR68340, class 4813 02



Relay Output Ratings - NO (NC)

120V

208/240V

Full load amps

16 (5.8) A

8 (2.9 A)

Locked rotor amps

96 (34.8) A

48 (17.4) A

Resistive amps

15 (5.8) A

8 (2.9) A

Horsepower

1 (1/4) HP

1 (1/4) HP

Size: 21
Brand: Ranco
Made In USA: Yes

Customer Reviews

Based on 11 reviews
91%
(10)
9%
(1)
0%
(0)
0%
(0)
0%
(0)
S
Stuart
Perfect replacement

Everything fit nicely and was shipped promptly. I appreciated the updated sales catalog from the vendor. My only recommendation would be to have a wiring schematic sent along with the component. I was switching from a mechanical aquastat to a digital aquastat I had to call several people before finding someone who knew the wiring schematic.

J
John
review for Ranco Etc-111020 Digital Temperature Controller 110V

old one failed 11 years old. price

M
Me
review for Ranco Etc-111020 Digital Temperature Controller 110V

Needed them

R
Ralph
review for Ranco Etc-111020 Digital Temperature Controller 110V

need for outdoor woodburner

p
paul k
review for Ranco Etc-111020 Digital Temperature Controller 110V

watched video on youtube
