PRODUCT INFORMATION
Product Description

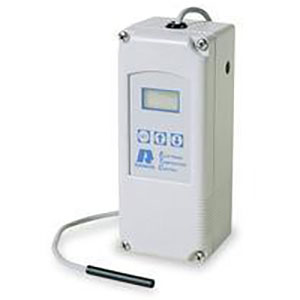

The Ranco ETC 112020-000 (also known as 112000-000) is a microprocessor-based temperature controller suitable for switching 24Volts at up to 16Amps for heating or cooling applications making it suitable for a wide range of applications. This is a great universal controller for any application where switching 24Volts or temperatures outside that of a normal home thermostat is required. The sensor with an 8' foot cable and instructions are included with the unit.
Typical Applications
Heating or cooling applications
Performance Data
- Temperature Setpoint Range: -30° to 220°F
- Differential range: 1° to 30°F
- Input Voltage: 24 Volts
- Switch Action: SPDT
- Sensor: Thermistor, 2" long x 1/4"dia with 8' cable (included)
- Ambient humidity: 0 to 95% RH, non-condensing
- Enclosure: NEMA 1
- Dimensions: 6.52" high x 2.7" wide x 2.48" deep
- Agency Approvals: UL listed, file E94419, Guide XAPX, CSA certified, file LR68340, class 4813 02
Features
- LCD read-out for sensor temperature, control settings, and relay status
- EEPROM memory retains control settings during power outages
- Keypad lockout to prevent end-user alteration of settings
- 8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
- Easy 4-step set-up
- Heavy-duty relay is 1 HP rated
- Selectable °F or °C heating/cooling modes
- Single and two stage models
- White backlight on display
- Sensor rated IP67 for dust and water (<1m) resistance
More Information
Specifications:
Size: 27
Brand: Ranco
| Item | Line Voltage Thermostat | |
| Type | Electronic Temperature Control | |
| Switch Type | SPDT | |
| Switch Action | Open / Close on rise | |
| Number of Switches | 1 | |
| Control Range (F) | -30 to 220 | |
| Differential (Deg. F) | 1 to 30 | |
| Height (In.) | 6-1/2 | |
| Width (In.) | 2-3/4 | |
| Depth (In.) | 2-1/2 | |
| Temp. Sensitivity (Deg. F) | + - 1 | |
| Sensor Type | Thermistor | |
| Sensing Bulb Dia. (In.) | 1/4 | |
| Sensing Bulb Length (In.) | 2 | |
| Capillary Length (In.) | 96 | |
| Characteristics | Hardware, Software or System Problems and Displays Different Error Codes for Easy Troubleshooting, EPROM Memory Retains Control Settings During Power Outage, Replaces Most Electromechanical and Electronic Temperature Controls | |
| For Use With | Heating, Cooling, Refrigeration | |
| Color | Gray | |
| Application | For Selectable Heating/Cooling Modes for Use in Hundreds of Commercial HVAC/R Applications, Keypad Lockout Switch Prevents Tampering | |
| Display | LCD | |
| Enclosure Type | NEMA 1 | |
| Voltage Range | 24 to 240 VAC | |
| Full Load Amps @ 120V | 16A (NO), 5.8A (NC) | |
| Full Load Amps @ 240VAC | 8A (NO), 2.9A (NC) | |
| Pilot Duty Contacts (VA) | 125 | |
| Mounting | Vertical or Horizontal | |
| Number of Relay Inputs | 1 | |
| Number of Relay Outputs | 1 | |
| Number of Stages | 1 | |
| 0-10V Output | No |
Made In USA: Yes
