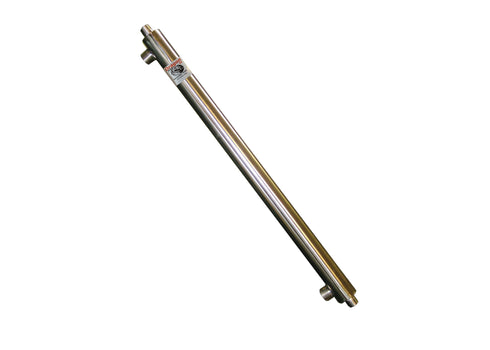

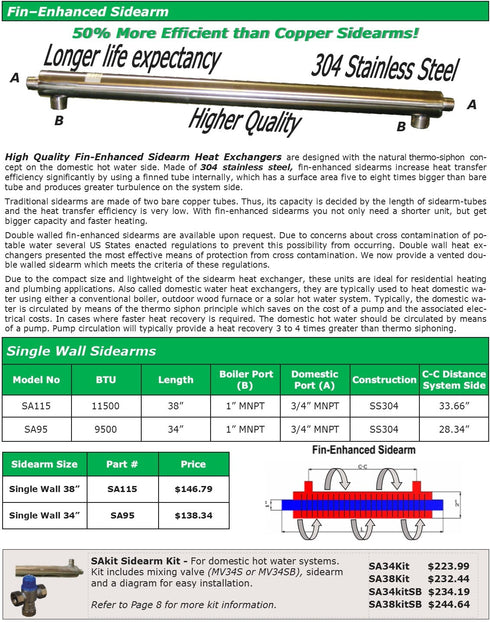

High Quality Fin-Enhanced Sidearm Heat Exchanger is designed with the natural thermo-siphon concept on domestic hot water side. Traditional sidearms are made of two bare copper tubes. Thus, its capacity is decided by the length of sidearm-tubes and the heat transfer efficiency is very low.
Made of 304 stainless steel, fin-enhanced sidearm increases heat transfer efficiency significantly by using a finned tube internally, which has surface area five to eight times bigger than bare tube and produces great turbulence on system side. With fin-enhanced sidearm you not only need a shorter unit, but get bigger capacity and faster heating.
Ideal for residential and plumbing heating applications

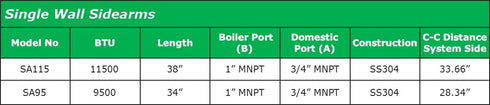

Features and Specs
- Made of 304 stainless steel
- Lenght: 34''
- Boiler Port: 1" MNPT
- Domestic Port: 3/4" MNPT

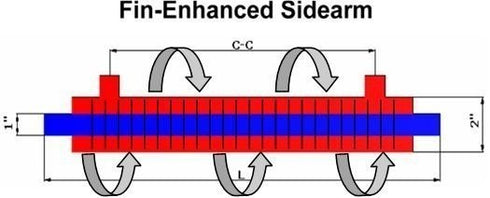

- It increases heat transfer efficiency significantly by using a finned tube internally
It has bigger capacity and delivers faster heating

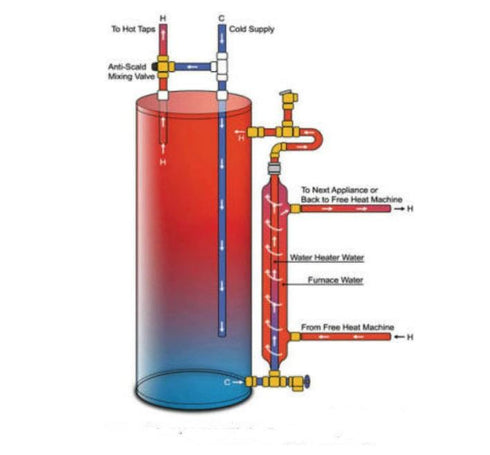

***Mixing valves or Scorch guides are recommended. We sell a SAkit- Sidearm Kit- For domestic hot water systems. This kit includes mixing valve (MV34S or MV34SB), sidearm and a diagram for easy installation. See SKU: SA34Kit or SA34kitSB
Exact description of the unit was provided in the catalog. Shipping extremely quick and unit operated flawlessly thank you
Is there any data to back up their claims? I came here to get specs. such as pressure drop, gpm, and btuh ratings. Almost all of wood boilers have no specs. or prove any of their claims.
top of the line
