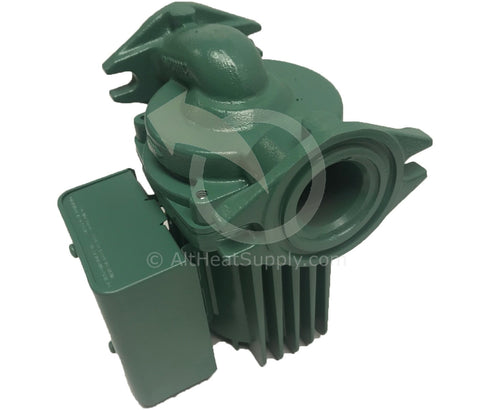

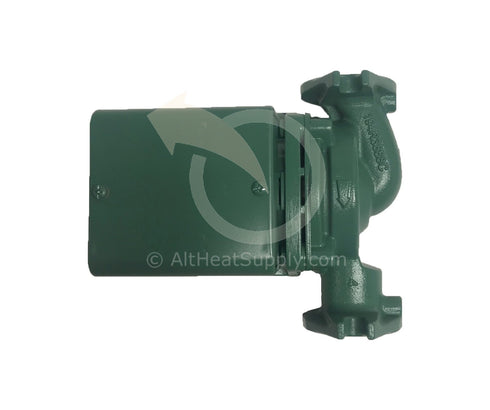

Product Description
The High-Velocity series Taco 0013 Cartridge Circulator is designed for quiet, efficient operation in high head / high flow applications for Large Residential / Light Commercial Hydronic heating, Radiant heating, Chilled Water cooling, and Domestic freshwater systems. The exclusive ACB anti-condensate baffle with ambient airflow prevents the build-up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. (SKU: RC013) Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance-free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0013 is ideal for high-efficiency jobs where space is a premium.
BF – Bronze, Flanged Variations: J – Bronze Cartridge with Cast Iron Casing; These “J” pumps were designed for open & closed systems. These “J” pumps were designed for open & closed systems due to the amount of oxygen in the systems. The Bronze Cartridge increases the life of the pump and is able to handle the hard application better. This cartridge prevents the pump from deteriorating due to oxygen in the water system. Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs. It can be replaced with the Taco 2400-20WB. Not for potable water use.
***Rubber gaskets included with pump***
Application:
The Taco 0013 is specifically designed for high head / high flow applications in Large Residential and Light Commercial systems. Ideal for high-pressure drop Boilers, Fan Coil Units, Heat Exchangers, larger Radiant systems, Heat Recovery, and Geothermal systems. The Stainless Steel 0013 should be used on open-loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0013 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs.
Typical Applications
- High-Pressure Drop Boilers
- Medium/Large Hydronic, Geothermal, and Radiant Heating projects
- Wood Boilers / Furnaces
- Hydro-Air Fan Coils
- Open Loop systems like Outdoor Wood Furnaces
Performance Data:
- Flow Range: 0-34 GPM
- Head Range: 0-33 Feet
- Maximum Fluid Temperature: 230 degrees F (110 degrees C)
- Horse Power: 1/6
- Working pressure: 125 PSI
- Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
Features
- High-Velocity Performance-Compact Design
- Universal Flange to Flange Dimensions
- Direct Drive-Low Power Consumption, Quiet, Efficient Operation
- Unique Replaceable Cartridge Design-Field Serviceable (SKU: RC013)
- Unmatched Reliability-Maintenance Free
- Exclusive ACB Anti-Condensate Baffle with Ambient Air Flow-Protects motor windings against condensate buildup
- No Mechanical Seal
- Efficient Operation

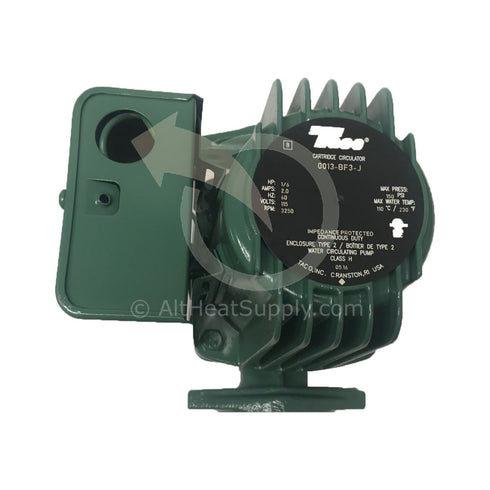

Electrical Data:
Volts: 115
Hz: 60
Amps: 2.0
RPM: 3250
HP: 1/6
| Item | Circulator Pump |
|---|---|
| Type | Hot Water |
| HP | 1/6 |
| Phase | 1 |
| Voltage | 115 |
| Amps | 2.00 |
| Inlet/Outlet | Flanged |
| Housing Material | Cast Iron |
| Face to Face Dimension (In.) | 6-1/2 |
| Max. Temp. (F) | 230 |
| Max. Working Pressure (PSI) | 125 |
| Flange/Union Included | No |
| Shut-Off (Ft.) | 34 |
| Impeller Material | Polypropylene |
| Thermal Protection | Impedance |
| GPM of Water @ 1 Ft. of Head | 29 |
| GPM of Water @ 2 Ft. of Head | 28.5 |
| GPM of Water @ 3 Ft. of Head | 28 |
| GPM of Water @ 4 Ft. of Head | 27.5 |
| GPM of Water @ 5 Ft. of Head | 27.25 |
| GPM of Water @ 6 Ft. of Head | 27 |
| GPM of Water @ 7 Ft. of Head | 26.5 |
| GPM of Water @ 8 Ft. of Head | 26 |
| GPM of Water @ 9 Ft. of Head | 25.5 |
| GPM of Water @ 10 Ft. of Head | 24.5 |
| GPM of Water @ 15 Ft. of Head | 22 |
| GPM of Water @ 20 Ft. of Head | 18 |
| GPM of Water @ 25 Ft. of Head | 12 |
| GPM of Water @ 30 Ft. of Head | 5 |
| Length (In.) | 7-3/4 |
| Width (In.) | 6 |
| Max. GPM @ Head (Ft.) | 29 @ 1 |
| Best Efficiency GPM @ Head (Ft.) | 20 @ 17 |
| Min. GPM @ Head (Ft.) | 5 @ 30 |
| Drive Type | Direct |
| Construction | 30 Percentage Glass-filled Polyether Sulfone |
| FPT (In.) | 3/4 |
| Weight | 13.00 |
