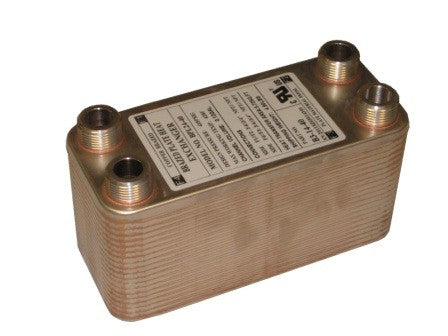

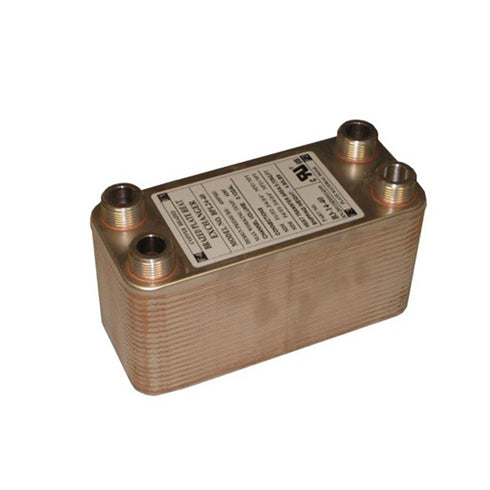

50 Brazed Plate Heat Exchanger, 3 x 8, 30,000 BTU

50 Plate Water to Water Heat Exchanger, 3 x 8

100% of 100
This means we have in stock and can ship the same business day if ordered before 3 pm EST. We use Fedex & UPS
Installation type: 3/4" MPT
Material: Stainless Steel
Size: 3" x 8"
UPC: 725264057088
Manufacturer: AH&S
Sku: PE 3x8-50
Warranty: Yes, 1 Year
  • BTU Rating: 30,000 (Commonly used for small heating applications, Beer Chillers, Bio-Diesel Warmer).
  • High heat transfer coefficient
  • Small unit size with high heat transfer capacity
  • Stainless steel connections
  • Easy installation
In stock
List Price $201.00 Sale Price $143.99 (You save: $57.01)
  • Buy 2 for $133.99 each and save 7%

Product Description

These Units are 40% Heavier and better made then the competition. These heat exchanger's compact, rugged assembly is composed of stainless steel 316L plate packs sealed & pressed together by means of brazing metal along the border of the units. This eliminates the need for traditional gaskets or external pressure retaining parts. The plate packs are embossed with special corrugation patterns to promote high turbulence flow, which dramatically increases the heat transfer rates of the units thus making them a highly economical and effective solution for many processes and heating applications.

Typical Applications

  • Central Heating
  • Hydronic Heating
  • Solar and Geothermic Heating
  • Industrial Process Heat Recovery
  • Condensers and Evaporators in Refrigeration Systems
  • Oil Coolers
  • Close Approach Fluid-to-Fluid Heat Transfer


Performance Data

  • BTU Rating: 30,000 (Commonly used for small heating applications, Beer Chillers, Bio-Diesel Warmer). Btu Rating is based on 10 GPM; 180F water
  • Connection Size: 3/4" MPT
  • Dimensions: 3'' x 8''
  • Max Temp. 428 F
  • Design Pressure: 435 PSIG
  • Heating Transfer Area: 7.23 SQ.FT
  • Channel Volume 0.29 Gal


  • High heat transfer coefficient
  • Small unit size with a high heat transfer capacity
  • Cost efficiency
  • Stainless steel connections
  • Easy installation
          More Information
          New ArrivalsNo
          Shipping LabelQuick Shipment, Next Day
          BrandDragon PE
          Compatible withAH&S
          Made In USANo
          Installation Type3/4" MPT
          MaterialStainless Steel
          Size3" x 8"
          Freight (not shippable)No
