PRODUCT INFORMATION
Product Description
Thermostats provide 24 Vac control of heating. The Honeywell T822K1018 Low-Volt Thermostat is designed for HEAT ONLY Systems.
Typical Applications
Hydronic Heating Systems
Performance Data
- Mercury Free
- Dimensions (in.): 4 3/4 in. high x 2 7/8 in. wide x 1 3/8 in. deep
- Mounting: Vertical
- Electrical Ratings: 20 to 30 Vac
- Supply Voltage: 20 to 30 Vac
- Sensor Element: Bimetal
-
Accuracy (F:) ±2 F
- Color: Premier White®
- Switching Action: SPST
- Switch Type: Precision Snap Action
- Terminal Designations: R, W
- Setting Temperature Range (F) 45 F to 95 F
- Heat Current: 0.02 A to 1.0 A running
Features
- Vented cover for improved temperature sensing
- Setting lever and thermometer scale on thermostat face
- Mounts directly on the wall or on vertical outlet box
- Integrated thermometer and setting scale
- Non-Programmable Type
More Information
Specifications:
Size: 23
Brand: Honeywell

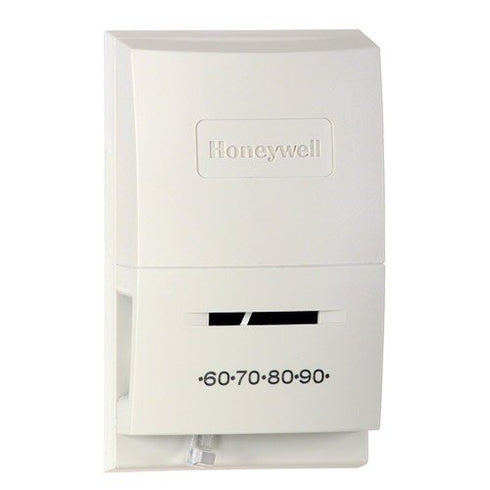

Honeywell T822K1018 Low-Volt Thermostat
Overview
Thermostats provide 24 Vac control of heating or cooling systems
Features
- Vented cover for improved temperature sensing
- Setting lever and thermometer scale on thermostat face
- Mounts directly on the wall or on vertical outlet box
- Integrated thermometer and setting scale
Product Specifications
- Application
- Heat Only
- Dimensions (in.)
- 4 3/4 in. high x 2 7/8 in. wide x 1 3/8 in. deep
- Dimensions (mm)
- 121 mm high x 73 mm wide x 35 mm deep
- Mounting
- Vertical
- Electrical Ratings
- 20 to 30 Vac
- Stages
- 1 Heat
- Supply Voltage
- 20 to 30 Vac
- Sensor Element
- Bimetal
- Accuracy (F)
- ±2 F
- Accuracy (C)
- ±1 C
- Color
- Premier White®
- Switching Action
- SPST
- Switch Type
- Precision Snap Action
- Terminal Designations
- R, W
- Setting Temperature Range (F)
- 45 F to 95 F
- Heat Current
- 0.02 A to 1.0 A running
