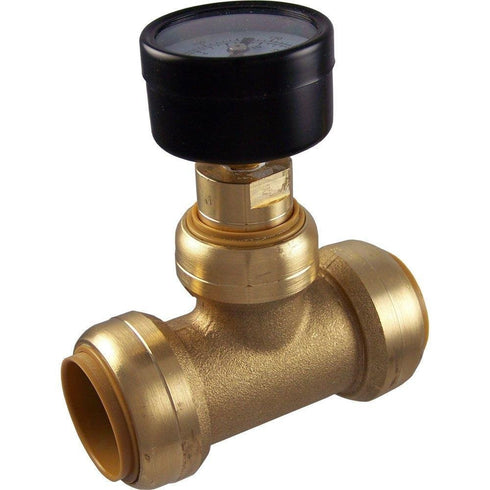

Sharkbite 1" Pressure Gauge With Tee 24440
- Durable dezincification resistant brass construction
- Rated for 200 psi and 200°F (93°C)
- No soldering, unions, clamps or glue required
- Gauges can be installed as a reusable or permanent device
- Works on any combination of Copper, CTS, PEX, CPVC, PE-RT Pipe

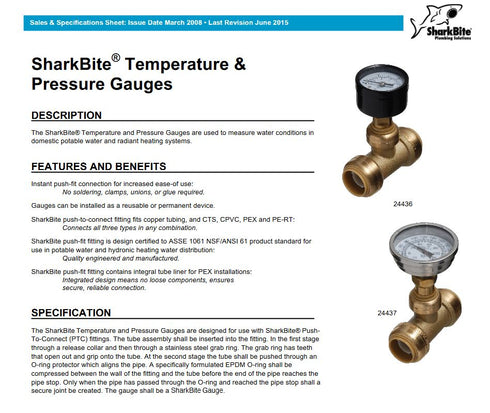

Description
Product Description
Monitor pressure in water distribution systems. Innovative push-to-connect design makes for quick and easy installation, even on wet pipe. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.
Typical Applications
Used to monitor water pressure in domestic potable water and radiant systems
Features
- Gauges can be installed as a reusable or permanent device
- Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe
- No special tools, crimping, glue or soldering required
- Can be installed in wet lines
- Remove using a discount clip or disconnect tong
- Rated for 200 psi and 200°F (93°C)

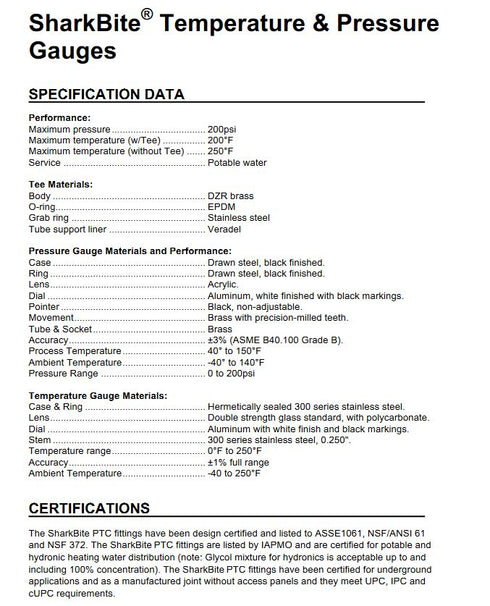

Specifications
SPECIFICATION DATA
Performance:Maximum pressure..............200psi
Maximum temperature (w/Tee)................200°F
Maximum temperature (without Tee).......250°F
Service.....................................................Potable water
Tee Materials:Body.....................................DZR brass
O-ring........................................................EPDM
Grab ring..................................................Stainless steel
Tube support liner....................................Veradel
Pressure Gauge Materials and Performance:
Case.........................................................Drawn steel, black finished.
Ring..........................................................Drawn steel, black finished.
Lens..........................................................Acrylic.
Dial...........................................................Aluminum, white finished with black markings.
Pointer......................................................Black, non-adjustable.
Movement.................................................Brass with precision-milled teeth.
Tube &Socket..........................................Brass
Accuracy...................................................±3% (ASME B40.100 Grade B).
Process Temperature...............................40° to 150°F
Ambient Temperature...............................-40° to 140°F
Pressure Range.......................................0 to 200psi
Temperature Gauge Materials:Case & Ring...................Hermetically sealed 300 series stainless steel.
Lens..........................................................Double strength glass standard, with polycarbonate.
Dial...........................................................Aluminum with white finish and black markings.
Stem.........................................................300 series stainless steel, 0.250".
Temperature range...................................0°F to 250°F
Accuracy...................................................±1% full range
Ambient Temperature...............................-40 to 250°F
SPECIFICATION DATA
Performance:Maximum pressure..............200psi
Maximum temperature (w/Tee)................200°F
Maximum temperature (without Tee).......250°F
Service.....................................................Potable water
Tee Materials:Body.....................................DZR brass
O-ring........................................................EPDM
Grab ring..................................................Stainless steel
Tube support liner....................................Veradel
Pressure Gauge Materials and Performance:
Case.........................................................Drawn steel, black finished.
Ring..........................................................Drawn steel, black finished.
Lens..........................................................Acrylic.
Dial...........................................................Aluminum, white finished with black markings.
Pointer......................................................Black, non-adjustable.
Movement.................................................Brass with precision-milled teeth.
Tube &Socket..........................................Brass
Accuracy...................................................±3% (ASME B40.100 Grade B).
Process Temperature...............................40° to 150°F
Ambient Temperature...............................-40° to 140°F
Pressure Range.......................................0 to 200psi
Temperature Gauge Materials:Case & Ring...................Hermetically sealed 300 series stainless steel.
Lens..........................................................Double strength glass standard, with polycarbonate.
Dial...........................................................Aluminum with white finish and black markings.
Stem.........................................................300 series stainless steel, 0.250".
Temperature range...................................0°F to 250°F
Accuracy...................................................±1% full range
Ambient Temperature...............................-40 to 250°F
