PRODUCT INFORMATION
Product Description

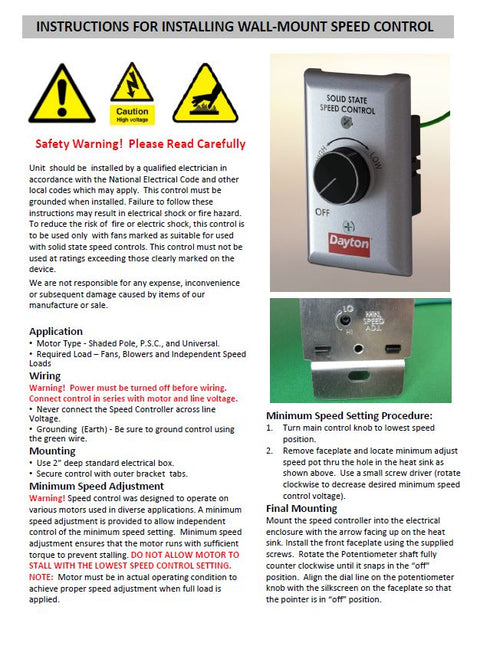

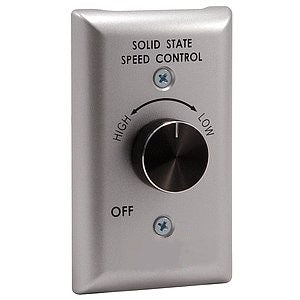

Variable Speed Control Unit can be used to operate multiple fans, if total amp draw does not exceed control's amp rating. It permits adjustment between 50 and 100% air performance and are rated 115V, 60 Hz.
Typical Applications
For use with Dayton and other compatible, speed-controllable ventilators and fans
Features and Specs
- Max Amps: 6
- Max Wattage: 720
- Dimensions: Height 4 1/2'', Width 2 3/4'', Depth 1 1/4''
- Fits single gang box
- Includes mounting screws and wire nuts
- Can be used to operate multiple fans
More Information
Specifications:
Size: 21
Brand:
| Item | Speed Control | |
| Type | Rotary, Adjustable | |
| Voltage | 115 | |
| Max. Amps | 6 | |
| Max. Wattage | 720 | |
| Switch Color | Black | |
| Plate Color | Silver | |
| Height (In.) | 4-1/2 | |
| Width (In.) | 2-3/4 | |
| Depth (In.) | 1-1/4 | |
| Fits | Single Gang Box | |
| For Use With | Dayton and Other Compatible Speed Controllable Ventilators and Fans | |
| Agency Compliance | UL Component Recognized | |
| Includes | Mounting Screws and Wire Nuts |
