Product Description

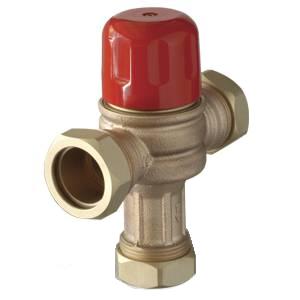

The Heatguard®115 is a large sized high flow rate Temperature Actuated Mixing Valve that mixes hot water with cold to deliver tempered water at a controlled pre-set temperature.The Heatguard®115 is intended for installation at water heater to distribute controlled temperature water throughout the domestic hot water system for larger residential and commercial applications. The valve is factory set to deliver water at a maximum of 120ºF (49ºC), allowing the heater to be set at 140ºF (60ºC) or higher, thus providing a greater effective volume of hot water and reducing the chances of legionella bacteria growth in the water. The outlet water flow rate is 27.2 gpm at 50 psi, making it suitable for larger residential and commercial installations. The Heatguard®115 is a high quality mixing valve incorporating the latest in thermostatic technology. It features a robust design based on the expertise gained from years of experience in the design and manufacture of safety valves. It incorporates a fast acting, high quality thermostatic element that senses the outlet water temperature and reacts to maintain a stable delivery water temperature even under changing flows or variations in supply temperatures.
Typical Applications
Widely used in large domestic and standard commercial water distribution systems: ideal for installation in a). hydronic radiant heating systems in conjunction with the water heating source to distribute tempered water to the system; and b), a hot water system at the water heater to distribute controlled temperature water.
Performance Data
- Flow Range: 0-30 GPM
- Maximum Fluid Temperature: 140 degrees F (60 degrees C)
- Maximum Working Pressure: 45 PSI
- Connection Sizes: 1'' valve
Features
- In the event of a cold water supply failure, it reduces the flow to a tickle
- Incorporates a thermostatic element that senses the outlet water temperature and reacts to maintain a stable delivery temperature
- Delivers water at a maximum of 120ºF (49ºC) throughout the system:Safer hot water from all outlets.
- Allows the heater to be set at 140ºF (60ºC) or higher:Greater effective hot water volume, less chance of legionella within the cylinder.
- Robust, low complexity construction:Superior reliability, improved user safety.
Performance:
Outlet temperature range . . . . . . 95 - 140°F (35 - 60°C)
Temperature hot supply . . . . . . . 195°F (90°C) max
Temperature cold supply . . . . . . 40 - 80°F (4 - 27°C)
Temperature stability . . . . . . . . . +/- 5°F (3°C)
Working pressure, maximum . . . 145 psi (1,000 kPa)
Flow rate, maximum. . . . . . . . . . 50 gpm (190 L/min)
Flow rate, minimum . . . . . . . . . . 2.5 gpm (10 L/min)*
Cash Acme Spec Sheet:
