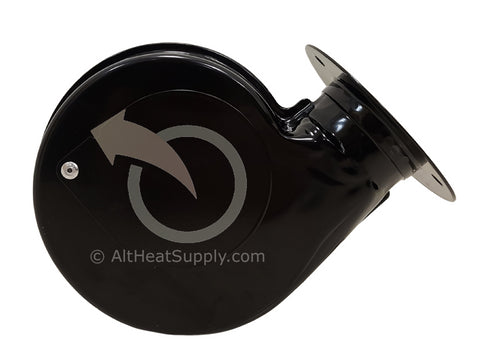

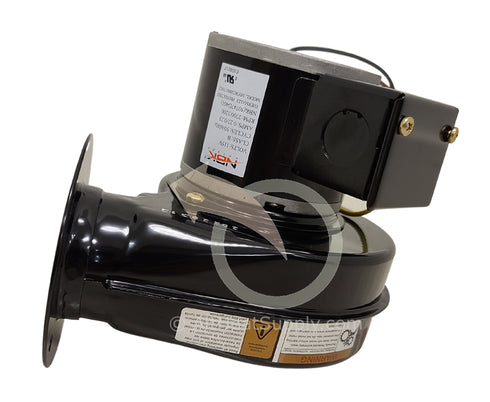

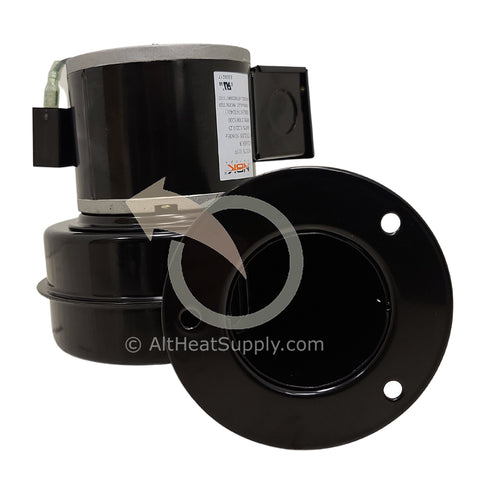

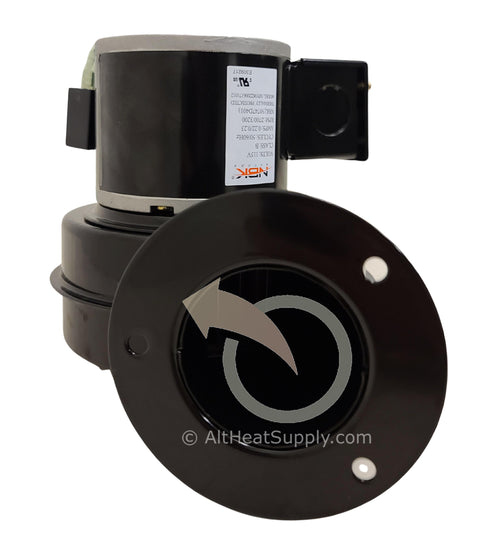

NBK Blowers Replaces Dayton Fan 1TDN7

$99.99$75.99

You Save: $24.00 (25%)

Quick Shipment

SKU: FN1TDN7

MANUFACTURER: NBK

  • Direct replacements for many OEM blowers with same physical footprint
  • Single Phase
  • Full Load Amps 0.23, RPM 2700/3200
  • Overall Height 5 13/16", Overall Width 5 1/8", Overall Depth 6 7/16
  • Includes Discharge Mounting Flange and Inlet Cover.
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

(This Fan is used on the Shaver Wood Furnace) Also used for many other applications. .This fan is cross referenced with the models below:
Dayton 1C180, 4C440, 1TDN7, Fasco 7021-3466, 50747-D401, 50747-D500, 6FHX4, 7021-7841 (England Stove), 7021-9258 (NESCO), 7021-8768, Lopi Coal Stoves KEYSTOKER 90/105 Coal stove

PSC Blower, Forward Curve, Direct Drive, Wheel Dia 3 In, CFM @ 0.000-In SP 50, Voltage 115, 60 Hz, Single Phase, Full Load Amps 0.23, RPM 2700/3200, Max Inlet Temp 104 Deg F, Overall Height 5 13/16 In, Overall Width 5 1/8 In, Overall Depth 6 7/16 In, Includes Discharge Mounting Flange and Inlet Cover

  • 18 to 50 CFM PSC and Shaded Pole Blowers, Round Outlet
  • Dynamically balanced blowers provide smooth and quiet operation.
  • Noise and vibration are held to a minimum to maintain CFM at higher static pressures. Motors have cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. UL and C-UL Recognized (E47479).
  • Direct replacements for many OEM blowers with same physical footprint
  • All-position mounting
  • Min./max. operating temp. range: -20 Degree to 104 DegreeF
  • Max. inlet and ambient temp.: 104 DegreeF
  • Motor enclosure: open
More Information
Specifications:
Item   PSC Blower
Type   Forward Curve, Direct Drive

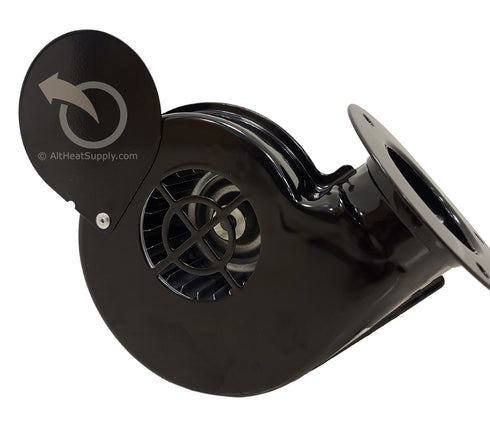

Wheel Dia. (In.)   3
Wheel Width (In.)   1-7/8
CFM @ 0.000-In. SP   50
CFM @ 0.100-In. SP   48
CFM @ 0.200-In. SP   44
CFM @ 0.300-In. SP   39
CFM @ 0.400-In. SP   32
CFM @ 0.500-In. SP   18
Voltage   115
Hz   50/60
Phase   Single
Full Load Amps   0.23
RPM   2700/3200
Bearing Type   Ball

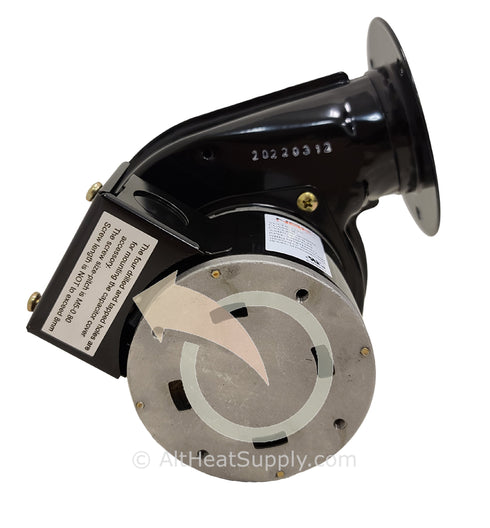

Motor Type   Permanent Split Capacitor
Motor Enclosure   Open
Motor Insulation   Class B
Thermal Protection   Auto
Lead Length (In.)   13
Conduit Box   Yes
Ambient Temp. (Deg. F)   104
Max. Inlet Temp. (Deg. F)   104

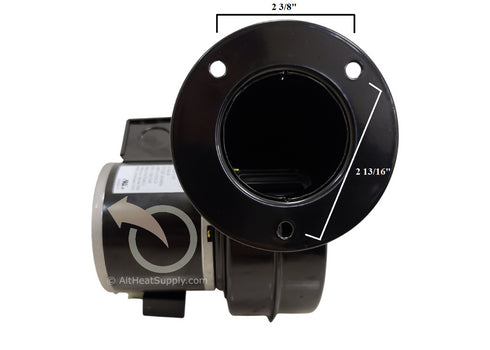

Inlet Dia. (In.)   2-3/8
Outlet Dia. (In.)   2-1/8
Overall Height (In.)   5-13/16
Overall Width (In.)   5-1/8
Overall Depth (In.)   6-7/16
Mounting   All Position
Housing Finish   Black Enamel
Housing Material   Rolled Steel
Agency Compliance   UL Recognized US and Canada (E47479)
Replaces   4C440
Includes   Discharge Mounting Flange and Inlet Cover
Size: 31
