PRODUCT INFORMATION
Product Description

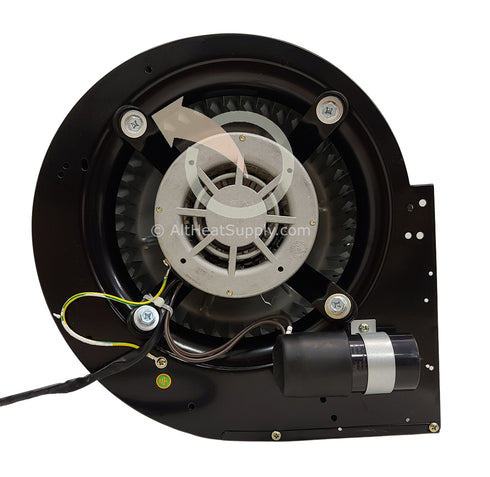

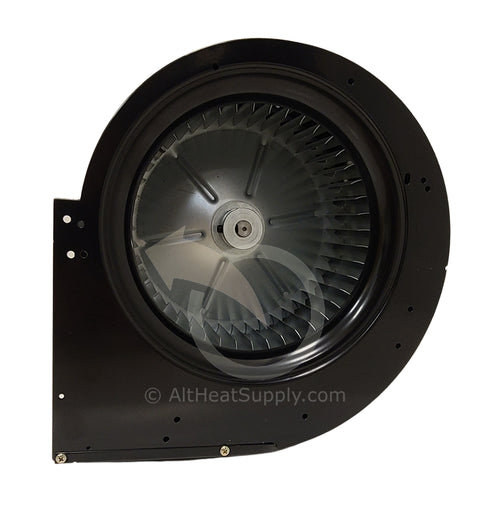

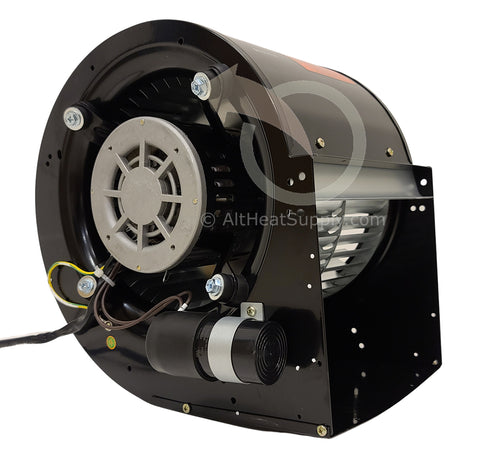

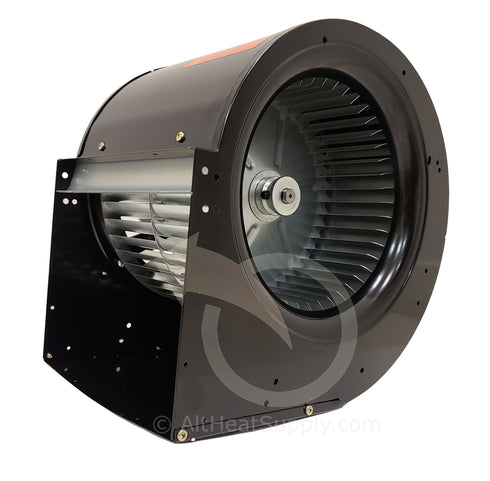

This Blower has a wheel reinforced to ensure optimal performance and trouble-free service, and a discharge that can be rotated in four 90° increments. Model has a heavy-gauge, steel blower housing and steel wheels. Unit can replace most direct-drive blowers with the same horsepower ratings and is suitable for use in new and replacement installations for heating, air conditioning, and ventilation systems, and is used in our Dragon Breath Air Handler unit.
Performance Data
- CFM Range 1009 to 692 @ 0.300-In SP to 0.800-In SP
- 115 Volts, 50-60 Hz, 1 Phase
- Max Ambient Temp: 104 Deg F
- Full Load Amps: 3.7
- Motor Type: Permanent Split Capacitor
- Motor RPM: 1070
- Dimensions: Housing height 12-3/4'', housing width 9-3/4'', housing depth 12-9/16''
Features
- Double Inlet Forward Curve
- Dynamically balanced blowers provide smooth and quiet operation.
- Noise and vibration are held to a minimum to maintain CFM at higher static pressures. Motors have cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life.
- Bearing Type Ball
- Motor Enclosure: Open Drip proof
- All-position mounting
- Max. inlet and ambient temp.: 104 Degree F
- Agency ComplianceCE
More Information
Specifications:
Size: 1
Brand:
Furnace Blower replaces:
Dayton Model 1XJX7
Technical Specs
- Item Blower with Motor
- Type Double Inlet Forward Curve
- Drive Type Direct
- Speed 1
- Wheel Dia. 9-7/16"
- Wheel Width (In.) 7-3/16
- CFM Range 1009 to 692 @ 0.300-In SP to 0.800-In SP
- CFM @ 0.000-In. SP #
- CFM @ 0.300-In. SP 1009
- CFM @ 0.400-In. SP 1005
- CFM @ 0.500-In. SP 1001
- CFM @ 0.600-In. SP 929
- CFM @ 0.700-In. SP 838
- CFM @ 0.800-In. SP 692
- Max. Inlet Temp. (Deg. F) 104
- Max. Ambient Temp. (F) 104
- Voltage 115
- Hz 60
- Phase Single
- Full Load Amps 3.7
- Motor HP 1/6
- Motor RPM 1070
- Motor Type Permanent Split Capacitor
- Bearing Type Ball
- Motor Enclosure Open Dripproof
- Housing Height (In.) 12-3/4
- Housing Width (In.) 9-3/4
- Housing Depth (In.) 12-9/16
- Discharge Height (In.) 7-13/16
- Discharge Width (In.) 9-1/8
- Mounting Multipostion
- Housing Material Steel
- Housing Finish Gray
- Wheel Material Steel
- Speed Controllable No
- Assembled/Unassembled Assembled
- Agency Compliance CE
- Footnotes # Motor Overload Condition
