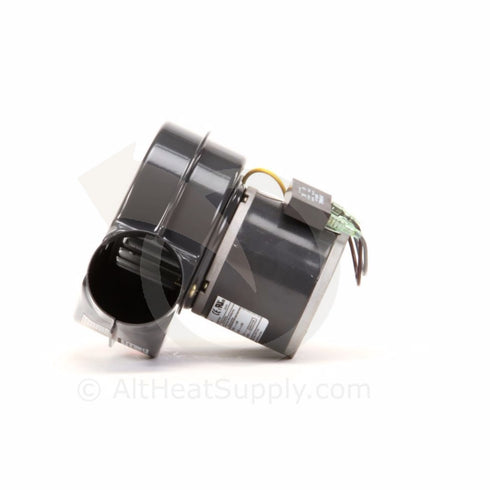

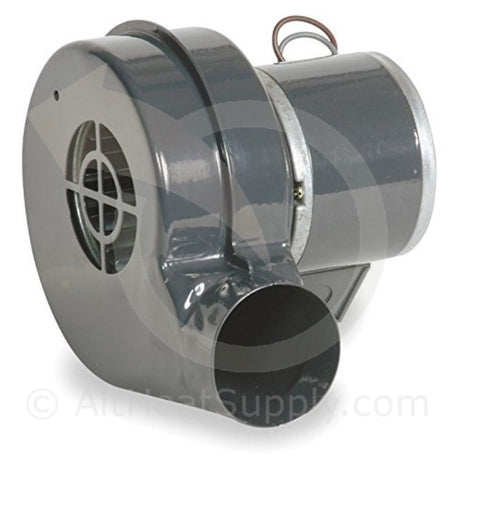

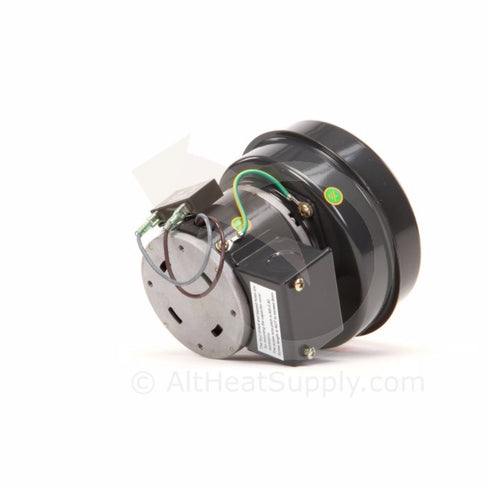

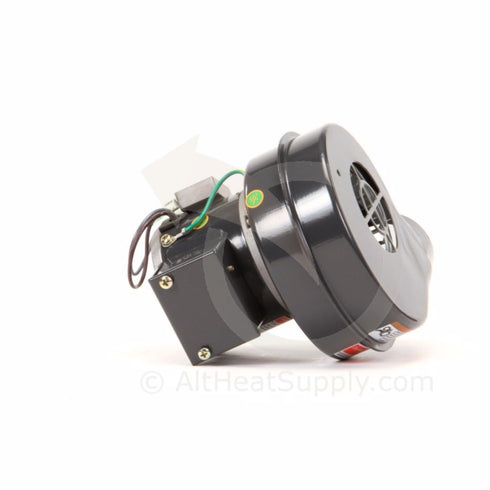

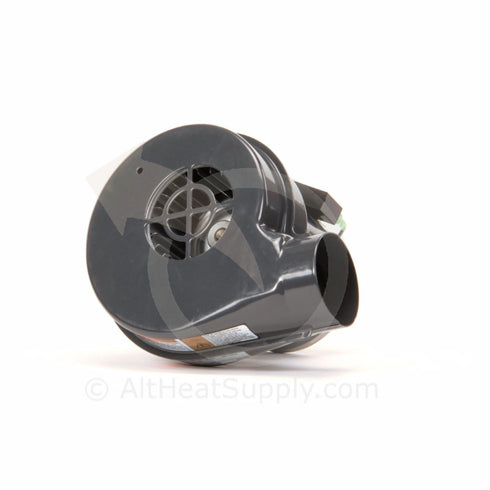

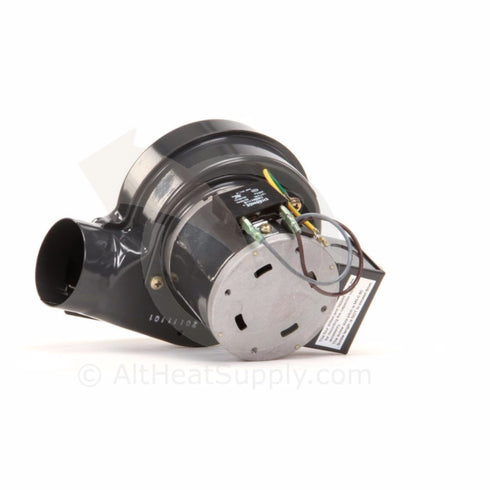

Dayton 1TDN6 Blower 115V for Wood Boilers

Product Description

Dynamically balanced, the Dayton 1TDN6 blower mounts in any position and operates with minimal noise and vibration, to maintain CFM at higher static pressures.

OEM Blower, Outlet Shape Round, With/Without Flange Without Flange, Wheel Dia. 3", Wheel Width 1-7/8", CFM @ 0.000-In. SP 51, CFM @ 0.100-In. SP 48, CFM @ 0.200-In. SP 43, CFM @ 0.300-In. SP 39, CFM @ 0.400-In. SP 34, CFM @ 0.500-In. SP 23, Voltage 115, Hz 50/60, Phase 1, Full Load Amps 0.23, RPM 3105, Bearing Type Ball, Motor Type Permanent Split Capacitor, Motor Enclosure Open, Motor Insulation Class B, Thermal Protection Auto, Lead Length 13", Conduit Box Yes, Max. Ambient Temp. 104 Degrees F, Max. Inlet Temp. 104 Degrees F, Inlet Dia. 2-3/8", Outlet Dia. 2-1/8", Overall Height 5-13/16", Overall Width 5", Overall Depth 6-7/16", Wheel Type Forward Curve, Drive Type Direct, Mounting Position All Position, Housing Finish Enamel, Housing Material Rolled Steel, Housing Color Gray, Agency Compliance UL Recognized US and Canada (E47479), CE, Replaces 4C441.

Note: Not for use with speed controllers


Performance Data

• CFM @ 0.000-In SP: 51
• 115 Volts, 50-60 Hz, 1 Phase
• Max Ambient Temp: 104 Deg F
• Full Load Amps: 0.23
• Motor RPM: 3105
• Dimensions: overall height5-13/16", overall width5", overall depth6-7/16"

Features

• Automatic Overload Protection
• Blower Outlet Shape:Round
• Blower Motor Type:Permanent Split Capacitor
• Noise and vibration are held to a minimum to maintain CFM at higher static pressures.
• UL Recognized US and Canada (E47479), CE.
• Lead Length13"
• All-position mounting
• Min./max. operating temp. range: -20 Degree to 104 DegreeF
• Motor enclosure: open
• Non-Reversible: Blower has no power cord or switch
• Includes discharge mounting flange
• Wheel Type:Forward Curve
• Replaces 4C441
