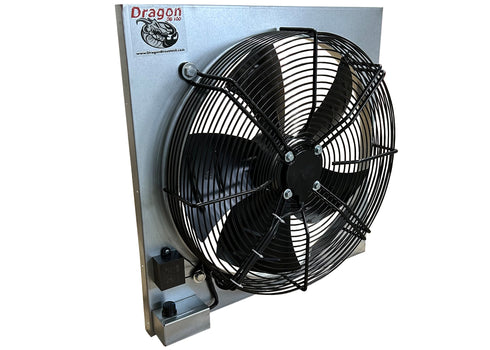

Product Description
This commercial direct-drive exhaust fan is designed to quietly exhaust high volumes of air for ventilating schools, offices, storage facilities, and light manufacturing assembly areas. It features a galvanized frame and finish, and is quiet speed-controllable for school and office environments. It features intake guards and sleeve bearings.
Exhaust Fan, Medium Duty Direct Drive, Blade Dia 12 In, 735 CFM; Max Ambient Temp 104 Deg F, 115 Volts, 60 Hz, 1 Phase, Operating Amps 1.4, Motor RPM 1450, Aluminum Blades, Height 16-1/8 In, Width 16-1/8 In, Max Depth 8 In, Vertical Mounting Position, Frame Material Steel, Propeller Material Stamped Aluminum, Number of Blades 4, Speed Controller included on unit.
Typical Applications
Great for ventilating schools, offices, storage facilities, and light manufacturing and assembly areas.
Performance Data
- 735 CFM @ 0.000-In SP
- Blade Diameter: 12''
- 115 Volts, 60 Hz, 1 Phase
- Max Ambient Temp: 104 Deg F
- Operating Amps: 1.4
- Motor RPM: 1450
- Dimensions: Height 16.125'', Width 16.125'', Max Depth 8''
- Speed Control Included on Unit
- Optional to add SC36, variable speed controller. For different control access. (sold separately)
Features
- Direct-Drive Venturi Exhaust Fans
- Fans are UL and C-UL Listed.
- Mount: vertical
- Motors: totally enclosed
- Aluminum blades
- Optional speed controls sold separately
- Stamped blades quietly exhaust high volumes of air.
| Item | Exhaust Fan | |
| Type | Medium Duty Direct Drive | |
| Propeller Dia. (In.) | 12 | |
| CFM @ 0.000-In. SP | 897 | |
| CFM @ 0.125-In. SP | 689 | |
| CFM @ 0.250-In. SP | 378 | |
| Sones @ 0.125-In. SP @ 5 Ft. | 6.0 | |
| Voltage | 115 | |
| Hz | 60 | |
| Phase | 1 | |
| Full Load Amps | .5 | |
| Motor HP | 1/30 | |
| Motor Type | Shaded Pole | |
| Motor Enclosure | Totally Enclosed Air-Over | |
| Motor Insulation | Class A | |
| Bearing Type | Sleeve | |
| Motor RPM | 1550 | |
| Max. Ambient Temp. (F) | 104 | |
| Height (In.) | 16.125 | |
| Width (In.) | 16.125 | |
| Max. Depth (In.) | 8 | |
| Flange Width (In.) | 1 | |
| Mounting Position | Vertical | |
| Frame Material | Steel | |
| Frame Finish | Baked On Gray Polyester | |
| Guard Material | Steel Wire | |
| Wire Guard Finish | Baked On Gray Polyester | |
| Propeller Material | Stamped Aluminum | |
| Number of Blades | 4 | |
| Agency Compliance | UL Listed, AMCA Licensed | |
| Speed Control | SC36 | |

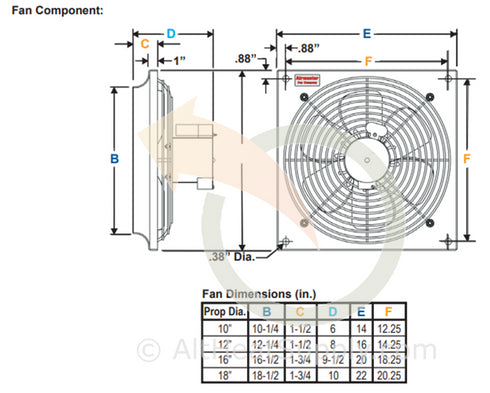

| Propeller Diameter (In.) | 12 | |
| Dimension B (In.) | 12-1/4 | |
| Dimension C (In.) | 1-1/2 | |
| Dimension D (In.) | 8 | |
| Dimension E (In.) | 16.125 | |
| Dimension F (In.) | 14.25 | |
| For Use With | General Ventilation Applications |
