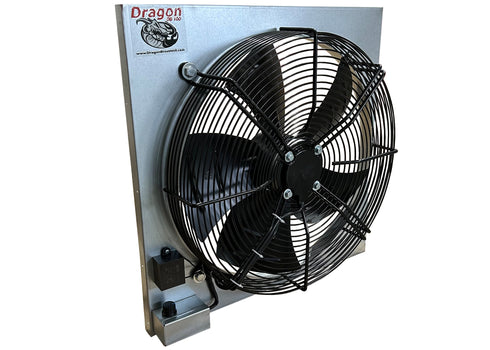

Exhaust Fan 16" Blade Dia, 11881 CFM, 115 v, 20" x 20"

$269.00

Quick Shipment

SKU: UHF16ahs

MANUFACTURER: AH&S

  • Propeller Material Stamped Aluminum
  • Motor Type: Shaded Pole
  • 115 Volts, 60 Hz, 1 Phase
  • Operating Amps 1.7, Motor RPM 1050 - 2 Speed
  • Bearing Type: Sleeve
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

Exhaust Fan, Medium Duty Direct Drive, Propeller Dia 16 In, 1765 CFM; Max Ambient Temp 104 Deg F, 115 Volts, 60 Hz, 1 Phase, Operating Amps 1.10, Motor RPM 1000, Aluminum Blades, Height 20 In, Width 20 In, Max Depth 9-1/2 In, Vertical Mounting Position, Frame Material Steel, Propeller Material Stamped Aluminum, Number of Blades 4, Speed Controller included on unit.

Typical Applications

Great for ventilating schools, offices, storage facilities, and light manufacturing and assembly areas.

Performance Data

  • Motor Enclosure: Totally Enclosed Air Over
  • 115 Volts, 60 Hz, 1 Phase
  • 1765 CFM @ 0.000-In SP
  • Propeller Diameter: 16''
  • Max Ambient Temp: 104 Deg F
  • Operating Amps: 1.10
  • Motor RPM: 1000
  • Dimensions: Height 20'', Width 20'', Max Depth 9-1/2"
  • Speed Controller included on unit
  • Optional to add SC36, variable speed controller. For different control access. (sold separately)

Features

  • Direct-Drive Venturi Exhaust Fans
  • Fans are UL and C-UL Listed.
  • Vertical mounting position
  • Motors: totally enclosed
  • Aluminum blades
  • Optional speed controls sold separately
  • Stamped blades quietly exhaust high volumes of air.





More Information
Specifications:
Item   Exhaust Fan
Type   Medium Duty Direct Drive
Propeller Dia. (In.)   16
CFM @ 0.000-In. SP   1881
CFM @ 0.125-In. SP   1540
CFM @ 0.250-In. SP   814
Sones @ 0.125-In. SP @ 5 Ft.   8.8
Voltage   115
Hz   60
Phase   1
Full Load Amps   1.6
Motor HP   1/9
Motor Type   Shaded Pole
Motor Enclosure   Totally Enclosed Air-Over
Motor Insulation   Class A
Bearing Type   Sleeve
Motor RPM   1550
Max. Ambient Temp. (F)   104
Height (In.)   20
Width (In.)   20
Max. Depth (In.)   9 1/2
Flange Width (In.)   1
Mounting Position   Vertical
Frame Material   Steel
Frame Finish   Baked On Gray Polyester
Propeller Material   Stamped Aluminum
Number of Blades   4
Agency Compliance   UL Listed, AMCA Licensed

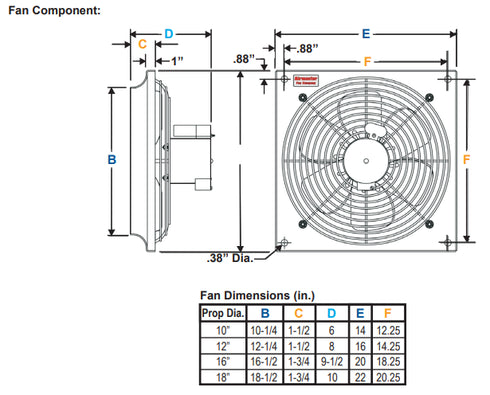

Dimension B (In.)   16-1/2
Dimension C (In.)   1-3/4
Dimension D (In.)   9-1/2
Dimension E (In.)   20
Dimenstion F (In.)   18.25
For Use With   General Ventilation Applications
Size: 17
Brand: AHS
Made In USA: Yes
