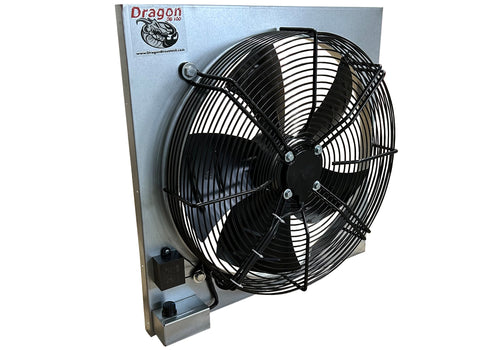

Product Description
Exhaust Fan, Medium Duty Direct Drive, Propeller Dia 18 In, 2294 CFM; Max Ambient Temp 104 Deg F, 115 Volts, 60 Hz, 1 Phase, Operating Amps 1.5, Motor RPM 110, Aluminum Blades, Height 22 In, Width 22 In, Max Depth 10 In, Vertical Mounting Position, Frame Material: Galvanized Steel, Propeller Material: Stamped Aluminum, Number of Blades 4, Speed Controller included on unit.
Typical Applications
Great for ventilating schools, offices, storage facilities, and light manufacturing and assembly areas.
Performance Data
- CFM 2294
- Propeller Diameter: 18''
- 115 Volts, 60 Hz, 1 Phase
- Max Ambient Temp: 104 Deg F
- Mounting Position: Vertical
- Operating Amps: 1.5
- Motor RPM: 1100
- Dimensions: Height 22'', Width 22'', Max Depth 10''
- Speed Controller included on unit
- Optional to add SC36, variable speed controller. For different control access. (sold separately)
Features
- Direct-Drive Venturi Exhaust Fans
- Fans are UL and C-UL Listed.
- Vertical mounting position
- Motors: totally enclosed
- Aluminum blades
- Optional speed controls sold separately
- Stamped blades quietly exhaust high volumes of air.
More Information
Specifications:
| Item | Exhaust Fan | |
| Type | Medium Duty Direct Drive | |
| Propeller Dia. (In.) | 18 | |
| CFM @ 0.000-In. SP | 2504 | |
| CFM @ 0.125-In. SP | 2035 | |
| CFM @ 0.250-In. SP | 884 | |
| Sones @ 0.125-In. SP @ 5 Ft. | 27 | |
| Voltage | 115 | |
| Hz | 60 | |
| Phase | 1 | |
| Motor HP | 1/9 | |
| Motor Type | Shaded Pole | |
| Motor Enclosure | Totally Enclosed Air-Over | |
| Motor Insulation | Class A | |
| Bearing Type | Ball | |
| Motor RPM | 1050 | |
| Max. Ambient Temp. (F) | 104 | |
| Height (In.) | 22 | |
| Width (In.) | 22 | |
| Max. Depth (In.) | 10 | |
| Flange Width (In.) | 1 | |
| Mounting Position | Vertical | |
| Frame Material | Steel | |
| Frame Finish | Baked On Gray Polyester | |
| Propeller Material | Stamped Aluminum | |
| Number of Blades | 4 | |

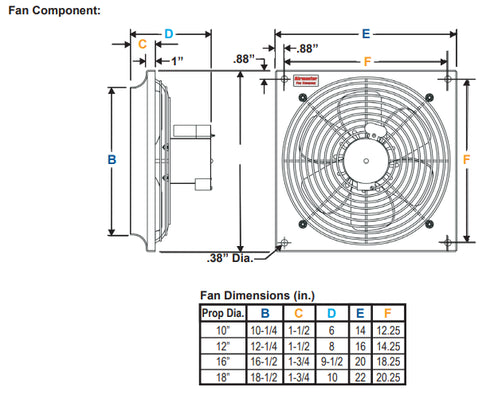

| Dimension B (In.) | 18-1/2 | |
| Dimension C (In.) | 1-3/4 | |
| Dimension D (In.) | 10 | |
| Dimension E (In.) | 22 | |
| Dimension F (In.) | 20-1/4 | |
| For Use With | General Ventilation Applications |
