PRODUCT INFORMATION
Product Description

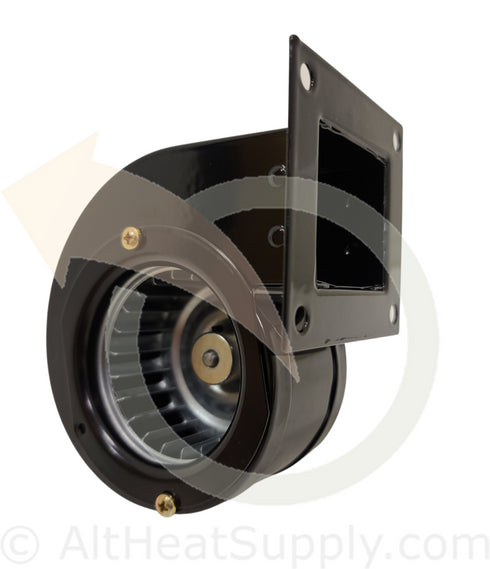

Acting as a direct replacement for many OEM blowers with the same physical footprint, this dynamically balanced blower provides smooth and quiet operation. Noise and vibration are held to a minimum to maintain CFM at higher static pressures. The motor has cast-aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. The min./max. operating temperature range is -20° to 104°F.
Note: Not for use with speed controllers
Performance Data
- CFM @ 0.000-In SP: 49
- 115 Volts, 50-60 Hz, 1 Phase
- Max Ambient Temp: 104 Deg F
- Full Load Amps: 0.50
- Motor RPM: 3080
- Dimensions: overall height4-1/2", overall width4-3/16", overall depth4-1/2"
Features
- Automatic Overload Protection
- Noise and vibration are held to a minimum to maintain CFM at higher static pressures.
- UL Recognized US and Canada (E47479), CE.
- Direct replacements for many OEM blowers with same physical footprint
- All-position mounting
- Min./max. operating temp. range: -20 Degree to 104 DegreeF
- Motor enclosure: open

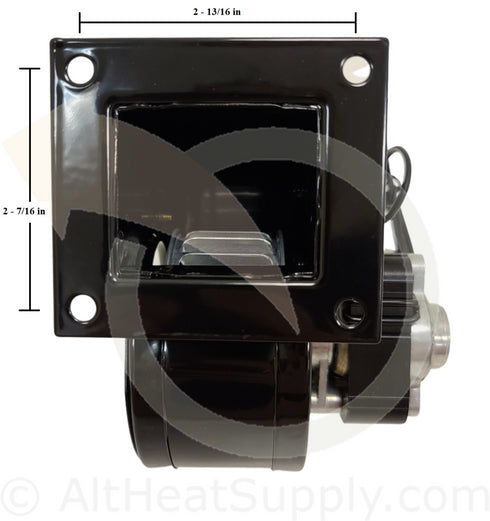

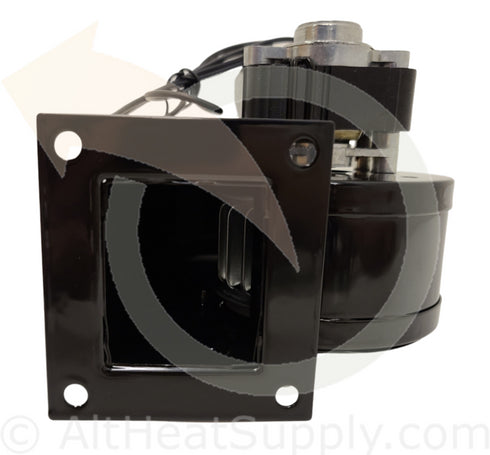

- Includes discharge mounting flange

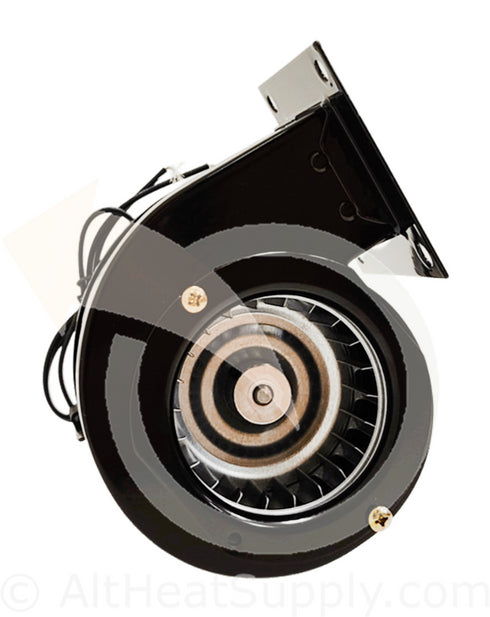

- Wheel Type: Forward Curve
- Blower Outlet Shape: Rectangular
- Non Reversible: Blower has no power cord or switch
- Replaces 4C761
Specification Sheet
More Information
Specifications:
Size: 24
Brand: NBK
Technical Specs
- Item OEM Blower
- Blower Outlet Shape Rectangular
- With Flange Yes
- Blower Wheel Diameter 2-15/16"
- Blower Wheel Width 1-7/8"
- Blower Item OEM Specialty Blower
- Blower Voltage 115VAC

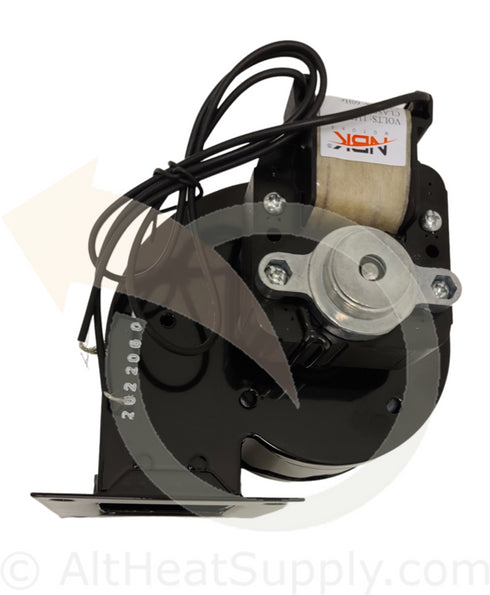

- Blower Motor Type Shaded Pole
- Blower Thermal Protection Auto
- Blower Conduit Box No
- CFM @ 0.000-In. SP 49
- CFM @ 0.100-In. SP 46
- CFM @ 0.200-In. SP 44
- CFM @ 0.300-In. SP 39
- CFM @ 0.400-In. SP 30
- CFM @ 0.500-In. SP 13
- Hz 60
- Phase 1
- Full Load Amps 0.50
- RPM 3080
- Bearing Type Ball
- Motor Enclosure Open
- Motor Insulation Class B
- Lead Length 13"
- Max. Ambient Temp. 104 Degrees F
- Max. Inlet Temp. 104 Degrees F
- Inlet Dia. 2-9/16"
- Outlet Height 1-5/8"
- Outlet Width 2"
- Overall Height 4-1/2"
- Overall Width 4-3/16"
- Overall Depth 4-1/2"
- Wheel Type Forward Curve
- Drive Type Direct
- Mounting Position All Position
- Housing Finish Enamel
- Housing Material Rolled Steel
- Housing Color Black
- Agency Compliance UL Recognized US and Canada (E47479), CE
- Replaces 4C761
- Includes Discharge Mounting Flange
