NBK Blower Replaces Dayton 1TDN5 54 CFM 2850/3380 RPM 115V 60/50hz (4C012)

$99.99$69.99

You Save: $30.00 (31%)

Quick Shipment

SKU: FN1TDN5

MANUFACTURER: NBK

  • 54 CFM, 2850/3380 RPM, 0.3 amps, 115 Volts 60/50hz.
  • This fan is used on the old Woodmaster 328 & 434
  • High Quality with less failures
  • Automatic Overload Protection
  • Non Reversible; Replaces 4C012
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

Dynamically balanced, the NBK Blower mounts in any position and operates with minimal noise and vibration, to maintain CFM at higher static pressures. Open motor has cast-aluminum end shields for greater heat dissipation, resulting in less downtime and longer service life.
Note: Not for use with speed controllers

OEM Blower, Outlet Shape Rectangular, With/Without Flange With Flange, Wheel Dia. 2-15/16", Wheel Width 1-7/8", CFM @ 0.000-In. SP 53, CFM @ 0.100-In. SP 52, CFM @ 0.200-In. SP 50, CFM @ 0.300-In. SP 47, CFM @ 0.400-In. SP 41, CFM @ 0.500-In. SP 23, Voltage 115, Hz 50/60, Phase 1, Full Load Amps 0.30, RPM 2850/3380, Bearing Type Ball, Motor Type Permanent Split Capacitor, Motor Enclosure Open, Motor Insulation Class B, Thermal Protection Auto, Lead Length 13", Conduit Box No, Max. Ambient Temp. 104 Degrees F, Max. Inlet Temp. 104 Degrees F, Inlet Dia. 2-9/16", Outlet Height 1-5/8", Outlet Width 2", Overall Height 4-5/8", Overall Width 4-11/16", Overall Depth 4-1/2", Wheel Type Forward Curve, Drive Type Direct, Mounting Position All Position, Housing Finish Enamel, Housing Material Rolled Steel, Housing Color Black, Agency Compliance UL Recognized US and Canada (E47479), CE, Replaces 4C012, Includes Discharge Mounting Flange.

Performance Data

  • CFM @ 0.000-In SP: 54
  • 115 Volts, 50-60 Hz, 1 Phase
  • Max Ambient Temp: 104 Deg F
  • Operating Amps: 1.4
  • Full Load Amps: 0.3
  • Motor RPM: 2850/3380

Features

  • Automatic Overload Protection
  • Dynamically balanced blowers provide smooth and quiet operation.
  • Noise and vibration are held to a minimum to maintain CFM at higher static pressures. Motors have cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life.
  • UL Recognized US and Canada (E47479), CE.
  • Direct replacements for many OEM blowers with the same physical footprint
  • All-position mounting
  • Min./max. operating temp. range: -20 Degree to 104 DegreeF
  • Motor enclosure: open
  • Non Reversible

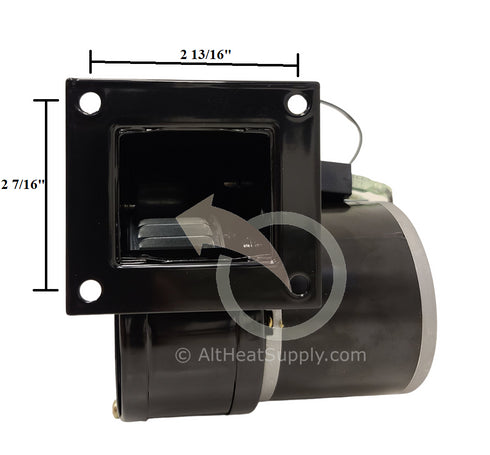

  • Includes discharge mounting flange
  • This fan is used on the old Woodmaster 328 & 434
  • Replaces 4C012, Fasco/B30
More Information
Specifications:

Item specifics

Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read more about the condition
Brand:

NBK

Thermal Protection: Auto MPN:

1TDN5

Conduit Box: No SKU: G2067134
Dimension K: 3-1/8" Motor Type: Permanent Split Capacitor
Hz: 50/60 Housing Material: Rolled Steel
RPM: 2850/3380 Bearing Type: Ball
Voltage: 115 Agency Compliance: UL Recognized US and Canada (E47479), CE
Housing Finish: Black baked on Enamel CFM @ 0.000-In. SP: 53
Full Load Amps: 0.30 CFM @ 0.100-In. SP: 52
Includes: Discharge Mounting Flange CFM @ 0.200-In. SP: 50
Item: OEM Blower CFM @ 0.300-In. SP: 47
California Prop 65 Orange Label: This product contains a chemical known to the State of California CFM @ 0.400-In. SP: 41
California Prop 65 White Label: This product contains a chemical known to the State of California CFM @ 0.500-In. SP: 23

Size: 24
Brand: NBK

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
C Purdy
review for Dayton Blower Model 1Tdn5 54 Cfm 3340 Rpm 115V 60/50Hz (4C012)

front door blower failed on larger unit and took fan off of small unit for replacement

D
Dana
review for Dayton Blower Model 1Tdn5 54 Cfm 3340 Rpm 115V 60/50Hz (4C012)

To have on hand when my 7 year old blower dies.

J
Jeremy
review for Dayton Blower Model 1Tdn5 54 Cfm 3340 Rpm 115V 60/50Hz (4C012)

Need new blower again.

D
Dave
review for Dayton Blower Model 1TDN5 54 CFM 3340 RPM 115V 60/50hz (4C012)

To have on hand in case my stove quits working

D
Davis
review for Dayton Blower Model 1Tdn5 54 Cfm 3340 Rpm 115V 60/50Hz (4C012)

Our blower goes out every year.
