PRODUCT INFORMATION
Product Description

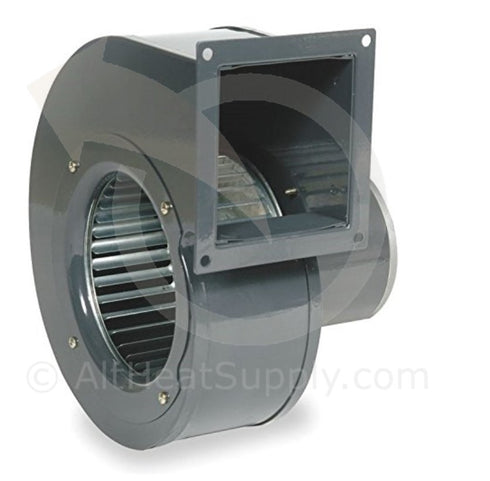

Dynamically balanced, the NBK Blower Replaces Dayton 1TDT2 blower mounts in any position and operates with minimal noise and vibration, to maintain CFM at higher static pressures.
Note: Not for use with speed controllers
Performance Data
- CFM @ 0.000-In SP: 549
- 115 Volts, 50-60 Hz, 1 Phase
- Max Ambient Temp: 104 Deg F
- Full Load Amps: 2.05
- Motor RPM: 1640
- Dimensions: overall height11-1/8", overall width9-3/16", overall depth10-7/16"
Features
- Automatic Overload Protection
- Noise and vibration are held to a minimum to maintain CFM at higher static pressures.
- UL Recognized US and Canada (E47479), CE.
- Direct replacements for many OEM blowers with same physical footprint
- All-position mounting
- Min./max. operating temp. range: -20 Degree to 104 DegreeF
- Motor enclosure: Open
- Non Reversible
- Lead Length13"
- Includes discharge mounting flange
- Wheel Type:Forward Curve
- Blower Outlet Shape: Rectangular
- Replaces 4C445 & 4YJ32
Direct-drive blower with forward-curve wheels are OEM replacements in many general heating, cooling, ventilating, or component cooling applications. Dynamically balanced to provide smooth, quiet operation and maintain CFM at higher static pressures. Mount in any position. Cast-aluminum end shields dissipate heat. Ball bearings. Rectangular outlet. Not for use with speed controllers.
More Information
Specifications:
Size: 25
Brand: NBK
NBK Blower Replaces Dayton 1TDT2
Technical Specs
- Item OEM Blower
- Blower Outlet Shape Rectangular
- With Flange Yes
- Blower Wheel Diameter 6-1/4"
- Blower Wheel Width 1-7/8"
- Blower Item OEM Specialty Blower
- Blower Voltage 115VAC
- Blower Motor Type Permanent Split Capacitor
- Blower Thermal Protection Auto
- Blower Conduit Box Yes
- CFM @ 0.000-In. SP 549
- CFM @ 0.100-In. SP 538
- CFM @ 0.200-In. SP 510
- CFM @ 0.300-In. SP 500
- CFM @ 0.400-In. SP 480
- CFM @ 0.500-In. SP 450
- CFM @ 0.600-In. SP 435
- CFM @ 0.700-In. SP 390
- CFM @ 0.800-In. SP 360
- Hz 50/60
- Phase 1
- Full Load Amps 2.05
- RPM 1640
- Bearing Type Ball
- Motor Enclosure Open
- Motor Insulation Class B
- Lead Length 13"
- Max. Ambient Temp. 104 Degrees F
- Max. Inlet Temp. 104 Degrees F
- Inlet Dia. 5-5/16"
- Outlet Height 4-1/4"
- Outlet Width 5-1/4"
- Overall Height 11-1/8"
- Overall Width 9-3/16"
- Overall Depth 10-7/16"
- Wheel Type Forward Curve
- Drive Type Direct
- Mounting Position All Position
- Housing Finish Enamel
- Housing Material Rolled Steel
- Housing Color Black
- Agency Compliance UL Recognized US and Canada (E47479), CE
- Replaces 4C445 and 4YJ32
- Includes Discharge Mounting Flange
