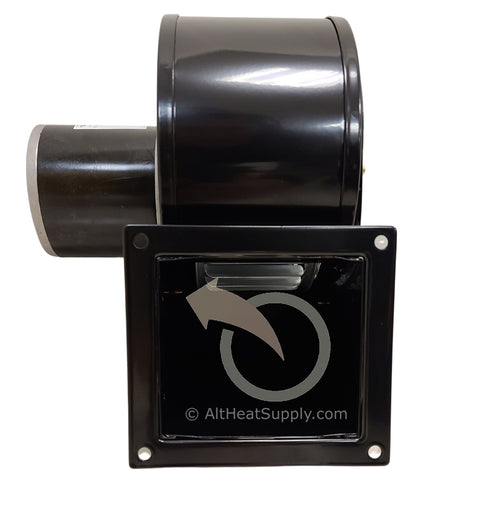

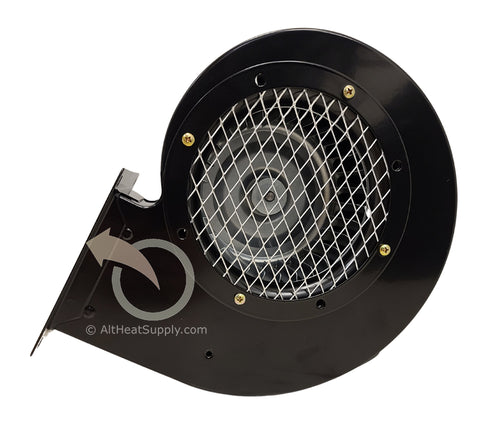

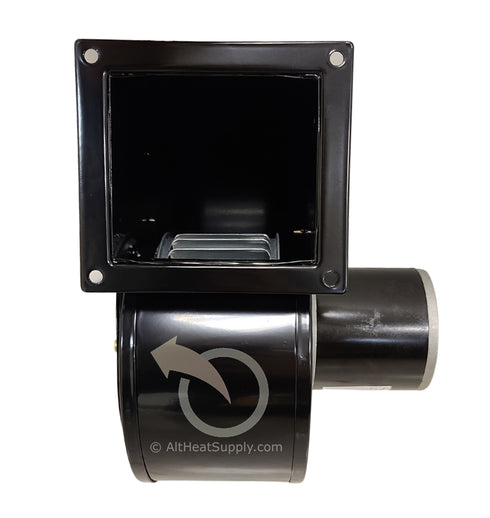

NBK Blower Replaces Dayton Models 1TDR3 (4C446) PSC Draft Fan Blower, 115 Volt, CFM 273

$155.99$129.99

You Save: $26.00 (17%)

Quick Shipment

SKU: FN1TDR3

MANUFACTURER: NBK

  • This is a Direct replacement Draft Fan Blower
  • Full Load Amps 0.79, RPM 1550
  • Max Inlet Temp 104 Deg F
  • Overall Height 9 7/8", Overall Width 7 11/16", Overall Depth 8 7/8
  • Includes Discharge Mounting Flange
PRODUCT INFORMATION
More Information
PRODUCT INFORMATION

Product Description

Dynamically balanced, the NBK Blower Replaces Dayton Models 1TDR3 (4C447) Blower mounts in any position and operates with minimal noise and vibration to maintain CFM at higher static pressures.
Dayton Blowers 1TDR3 PSC Draft Fan Blower, 115 Volt. The NBK Blower is better quality and will last longer than the Dayton products. We no longer carry any Dayton products.

Performance Data

  • CFM @ 0.000-In SP: 273
  • 115 Volts, 50-60 Hz, 1 Phase
  • Max Ambient Temp: 104 Deg F
  • Full Load Amps: 0.79
  • Motor RPM: 1550
  • Dimensions: Overall height 9 7/8'', overall width 7 11/16'', overall depth 8 7/8''


Technical Specs

Item OEM Blower
Outlet Shape Rectangular
With/Without Flange With Flange
Wheel Dia. 5-1/8"
Wheel Width 1-7/8"
CFM @ 0.000-In. SP 273
CFM @ 0.100-In. SP 245
CFM @ 0.200-In. SP 230
CFM @ 0.300-In. SP 210
CFM @ 0.400-In. SP 183
CFM @ 0.500-In. SP 135
Voltage 115
Hz 50/60
Phase 1
Full Load Amps 0.79
RPM 1550
Bearing Type BALL
Motor Type Permanent Split Capacitor
Motor Enclosure Open
Motor Insulation Class B

Thermal Protection Auto
Lead Length 13"
Conduit Box Yes
Max. Ambient Temp. 104 Degrees F
Max. Inlet Temp. 104 Degrees F
Inlet Dia. 4-5/8"
Outlet Height 3-5/8"
Outlet Width 4-1/8"
Overall Height 9-7/8"
Overall Width 7-11/16"
Overall Depth 8-7/8"
Wheel Type Forward Curve
Drive Type Direct
Mounting Position All Position
Housing Finish Enamel
Housing Material Rolled Steel
Housing Color Black
Agency Compliance UL Recognized US and Canada (E47479), CE
Replaces 4C447
Includes Discharge Mounting Flange

Reference: 1TDR3, 4C447, 7063-3277 Fasco B45227

Features

  • Dynamically balanced blowers provide smooth and quiet operation.
  • Noise and vibration are held to a minimum to maintain CFM at higher static pressures. Motors have cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life.
  • UL and C-UL Recognized (E47479), except No. 2C646 is not UL or C-UL Recognized, and No. 2C647 is UL Recognized (E22286) and CSA Certified (LR12645).
  • Direct replacements for many OEM blowers with same physical footprint
  • All-position mounting
  • Min./max. operating temp. range: -20 Degree to 104 DegreeF
  • Max. inlet and ambient temp.: 104 DegreeF
  • Motor enclosure: open
  • Replaces the Dayton 1TDR3 and 4C447
More Information
Specifications:
tem   PSC Blower
Type   Forward Curve, Direct Drive
Wheel Dia. (In.)   5-1/8
Wheel Width (In.)   3
CFM @ 0.000-In. SP   273
CFM @ 0.100-In. SP   245
CFM @ 0.200-In. SP   230
CFM @ 0.300-In. SP   210
CFM @ 0.400-In. SP   183
CFM @ 0.500-In. SP   135
Voltage   115
Hz   50/60
Phase   1
Full Load Amps   0.79
RPM   1550
Bearing Type   Ball
Motor Type   Permanent Split Capacitor
Motor Enclosure   Open
Motor Insulation   Class B
Thermal Protection   Auto
Lead Length (In.)   13
Conduit Box   Yes
Ambient Temp. (Deg. F)   104
Max. Inlet Temp. (Deg. F)   104
Inlet Dia. (In.)   4-5/8
Outlet Height (In.)   3-5/8
Outlet Width (In.)   4-1/8
Overall Height (In.)   9-7/8
Overall Width (In.)   7-11/16
Overall Depth (In.)   8-7/8
Mounting   All Position
Housing Finish   Black Enamel
Housing Material   Rolled Steel
Agency Compliance   UL Recognized US and Canada (E47479)
Replaces   4C447, 1TDR3
Includes   Discharge Mounting Flange
Size: 27
Brand: NBK
